Mini PCs
N1522
Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz) with 2x RTL8111H Gigabit LAN (10/100/1000M).
Mini PCs

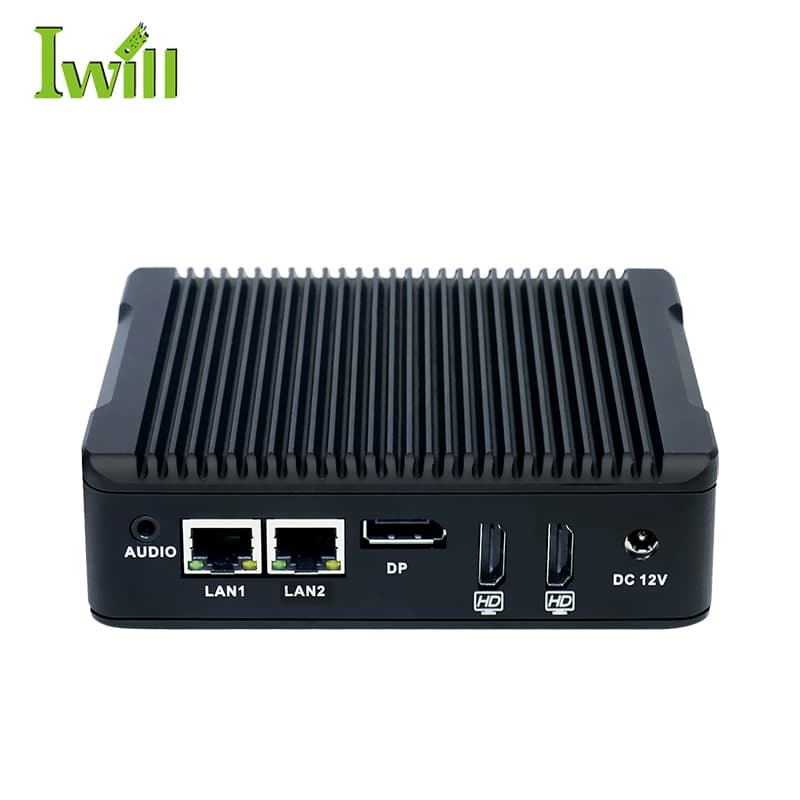

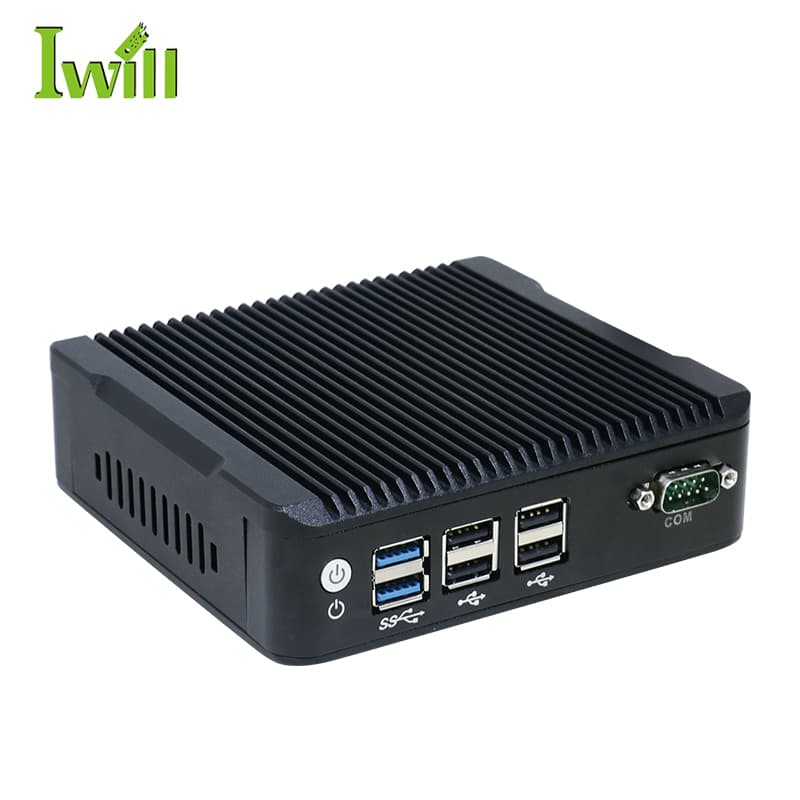

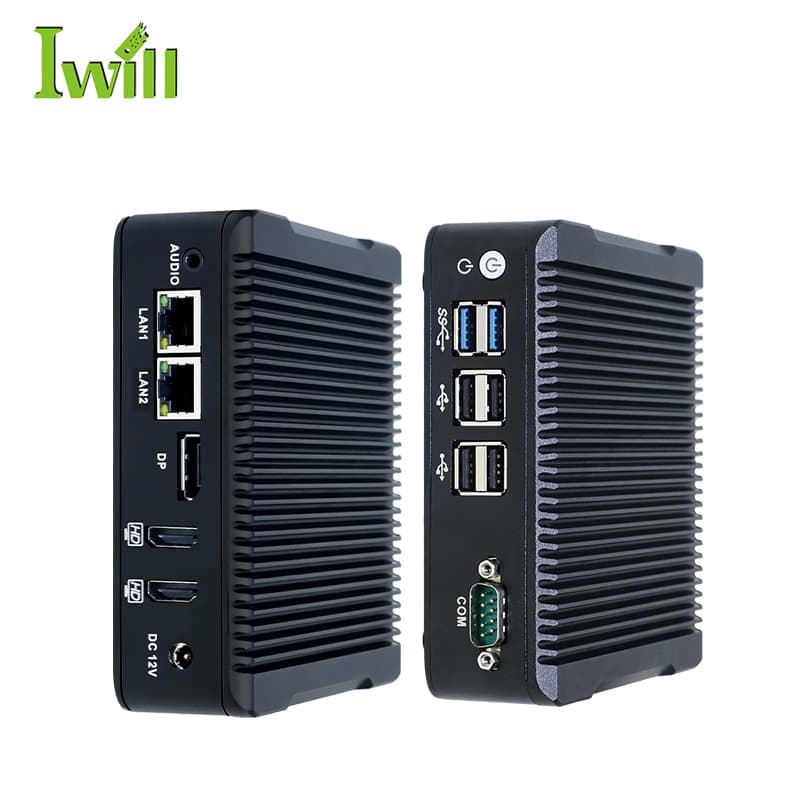

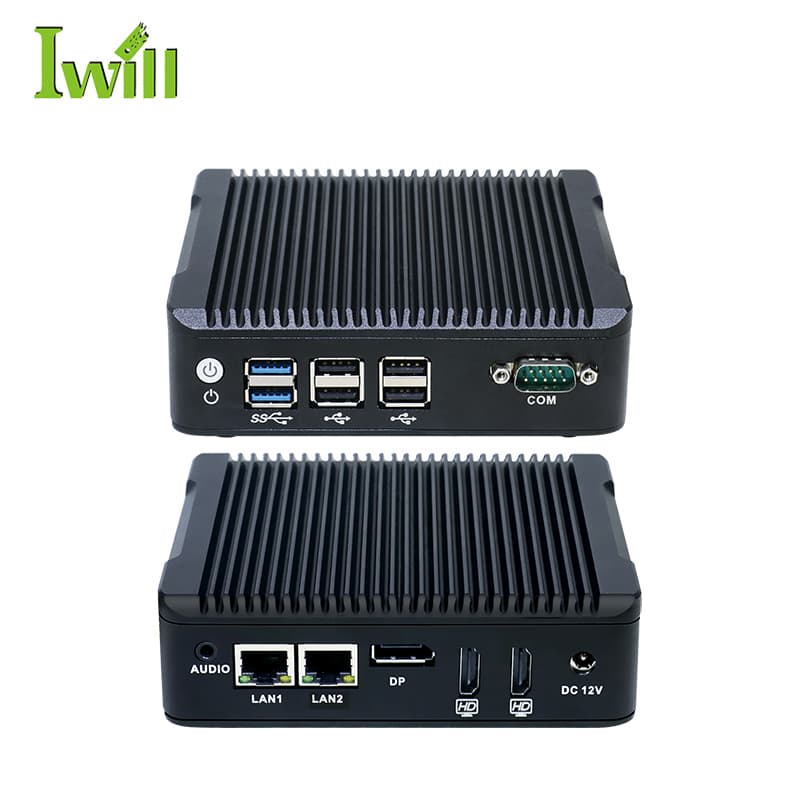

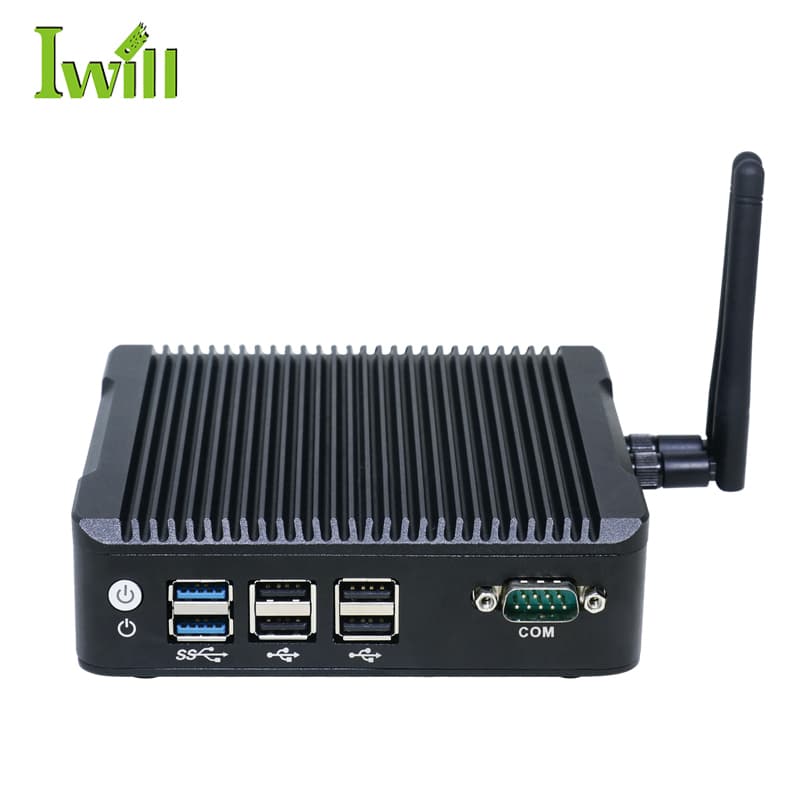

IWILL N5 Plus – Fanless Mini PC
N5 Plus: Intel Pentium J3710 (4 cores, 1.6GHz up to 2.64GHz) with 2x RJ45 LAN.
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel Pentium J3710 (4 cores, 1.6GHz up to 2.64GHz)
- DDR3L 1600MHz memory up to 8GB
- 4K display support (1x DP, 2x HDMI)
- 2x RJ45 LAN
- Fanless design
- 2x 2.5" HDD + 1x mSATA
Platform overview
Built into your system, not just placed beside it.
The N5 Plus is a compact mini PC from the IWILL Mini PCs range, built around Intel Pentium J3710 (4 cores, 1.6GHz up to 2.64GHz). Connectivity centers on 2x RJ45 LAN. Typical deployments include workstation, CAD/CAM, video processing. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
Windows 11 · Windows 10 · Linux (Ubuntu/Fedora)
Technical specifications
- Processor
- Intel Pentium J3710 (4 cores, 1.6GHz up to 2.64GHz)
- Memory
- 1x DDR3L 1600MHz, up to 8GB
- Networking
- 2x RJ45 LAN
- Display outputs
- 1x DP, 2x HDMI (4096×2160)
- Storage
- 2x 2.5" HDD + 1x mSATA
- I/O
- 4x USB 2.0, 1x COM
- Dimensions
- 134 × 126 × 38.5mm
- Weight
- 0.7kg
Operating environment
- Operating temperature
- 0°C to 45°C (32°F to 113°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5–95%
Typical applications
Where it deploys
- Workstation
- CAD/CAM
- Video processing
- Gaming
Expansion & I/O
Room to configure
- 2x 2.5" HDD slots
- 1x mSATA
Documentation
Datasheets and manuals
