IWILL Nano-N3322 – Fanless Mini PC
Nano-N3322: Intel i3/i5/i7-1255U (6-10 cores, up to 4.7GHz, Alder Lake) with 3x 2.5G LAN.
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel i3/i5/i7-1255U (6-10 cores, up to 4.7GHz, Alder Lake)
- DDR5 4800MHz memory up to 32GB
- 3x HDMI 4K@60Hz outputs
- 3x 2.5G LAN
- TPM 2.0
- Fanless design
Platform overview
Built into your system, not just placed beside it.
The Nano-N3322 is a compact mini PC from the IWILL Mini PCs range, built around Intel i3/i5/i7-1255U (6-10 cores, up to 4.7GHz, Alder Lake). Connectivity centers on 3x 2.5G LAN. Typical deployments include industrial control, IoT Gateway, Edge Computing. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
Windows 11 · Windows 10 · Linux (Ubuntu)
Technical specifications
- Processor
- Intel i3/i5/i7-1255U (6-10 cores, up to 4.7GHz, Alder Lake)
- Memory
- 1x DDR5 4800MHz, up to 32GB
- Networking
- 3x 2.5G LAN
- Display outputs
- 3x HDMI (4096×2160@60Hz)
- Storage
- 3x M.2 (1x 2280 NVMe, 1x 2280 SATA, 1x B-key 4G/5G)

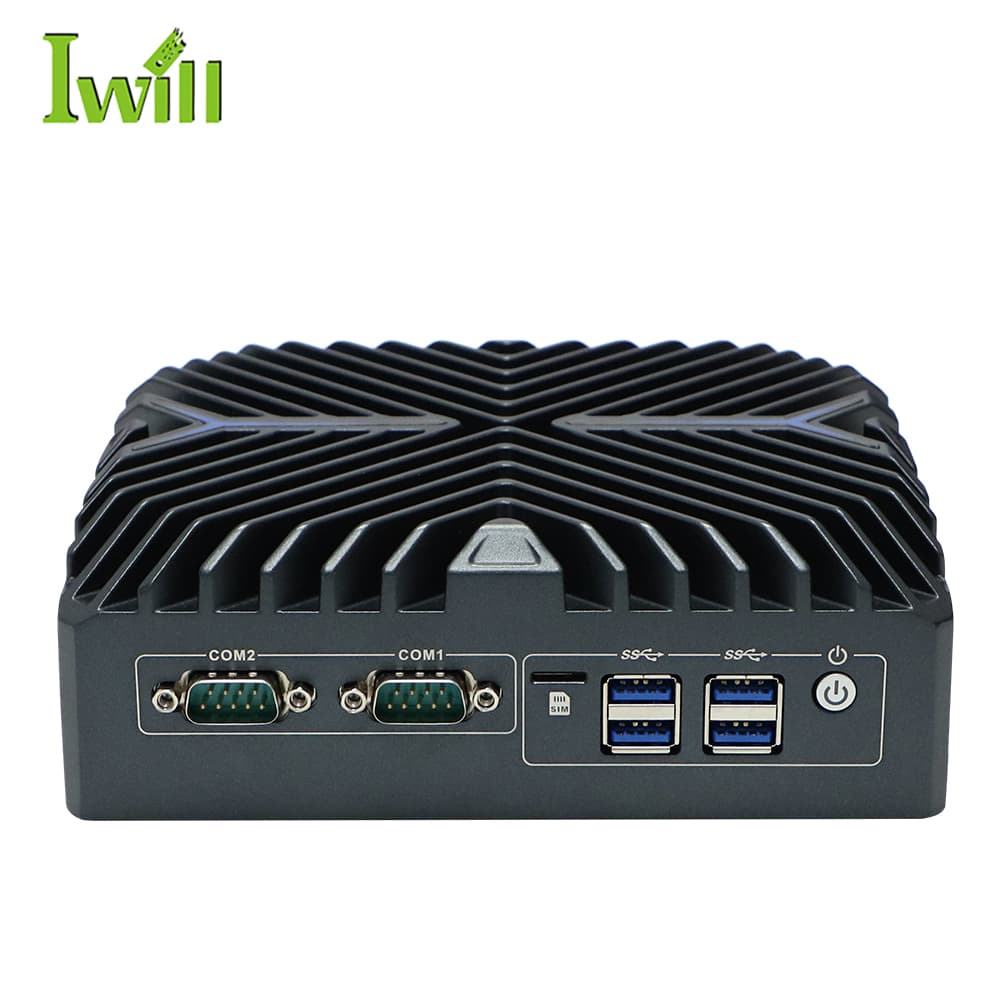

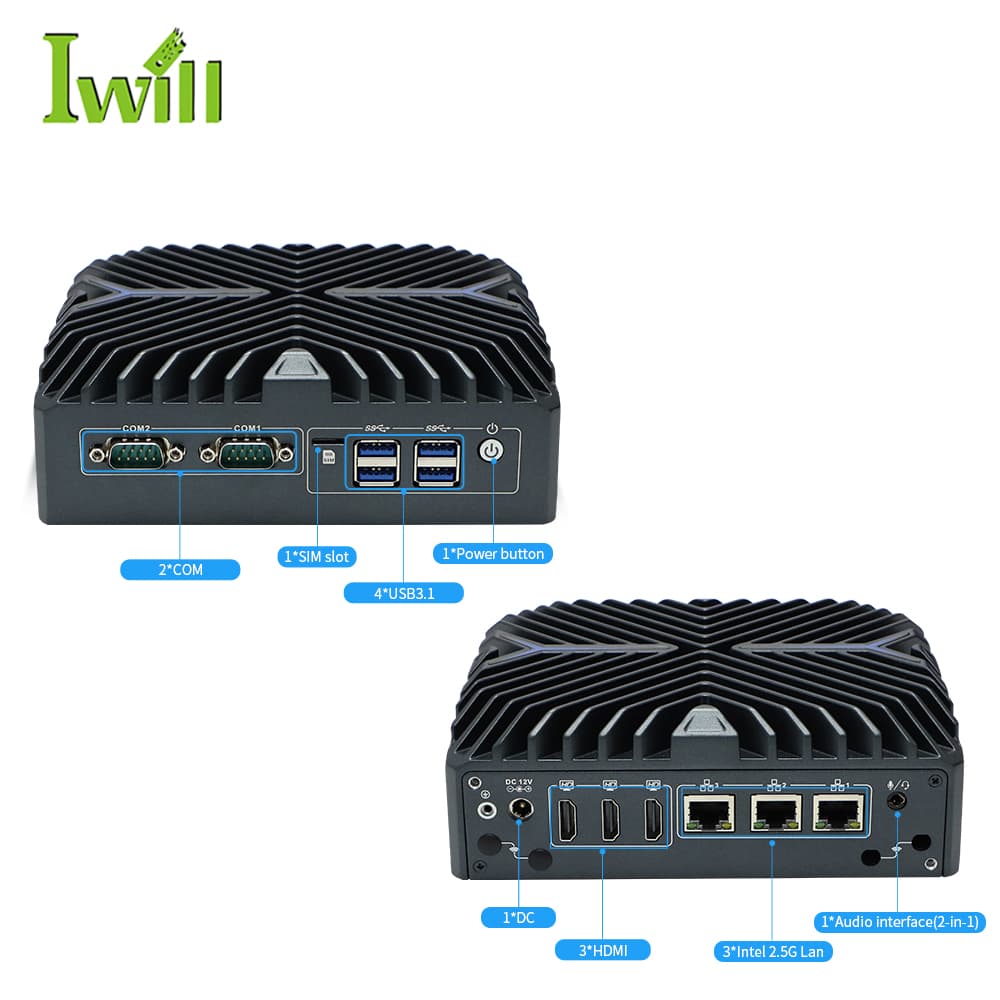

- I/O
- 2x COM, 4x antenna openings

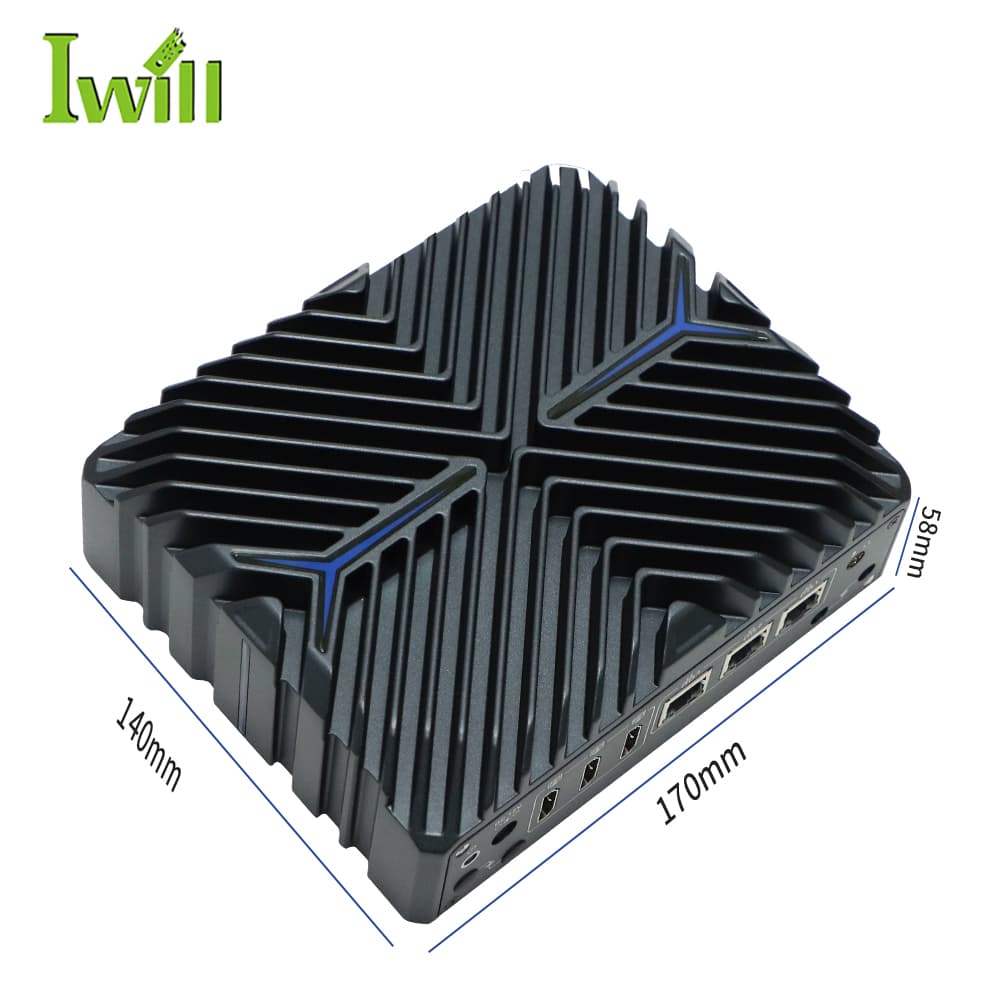

- Dimensions
- 170 × 140 × 58mm
- Weight
- 1.1kg
- Platform features
- TPM 2.0
Operating environment
- Operating temperature
- -10°C to 60°C (14°F to 140°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5–95% relative humidity, non-condensing
Typical applications
Where it deploys
- Industrial control
- IoT Gateway
- Edge Computing
- Digital signage
Expansion & I/O
Room to configure
- 1x M.2 2280 NVMe
- 1x M.2 2280 SATA
- 1x M.2 B-key (4G/5G)
