Nano-N1241 product view 1 of 6

Mini PCs

Nano-N1241

Nano-N1241: Intel Alder Lake N100 (4 cores, up to 3.4GHz) with 4x 2.5G LAN.

Request configuration and pricing.

Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.

Request a Quote
  • Intel Alder Lake N100 (4 cores, up to 3.4GHz)
  • DDR4 3200MHz memory up to 16GB
  • 4x 2.5G LAN
  • 1x HDMI, 1x DP
  • TPM 2.0
  • Fanless design

Platform overview

Built into your system, not just placed beside it.

The Nano-N1241 is a compact mini PC from the IWILL Mini PCs range, built around Intel Alder Lake N100 (4 cores, up to 3.4GHz). Connectivity centers on 4x 2.5G LAN. Typical deployments include pfSense/OPNsense, software router, VPN Gateway. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

Supported operating environments in source documentation

Windows 11 · pfSense · OPNsense · Linux · Proxmox

Technical specifications

Processor
Intel Alder Lake N100 (4 cores, up to 3.4GHz)
Memory
1x DDR4 3200MHz, up to 16GB
Networking
4x 2.5G LAN
Display outputs
1x HDMI, 1x DP (4096×2160@60Hz)
Storage
3x M.2 (WiFi/4G/5G) + 1x M.2 2280 + 1x M.2 SATA

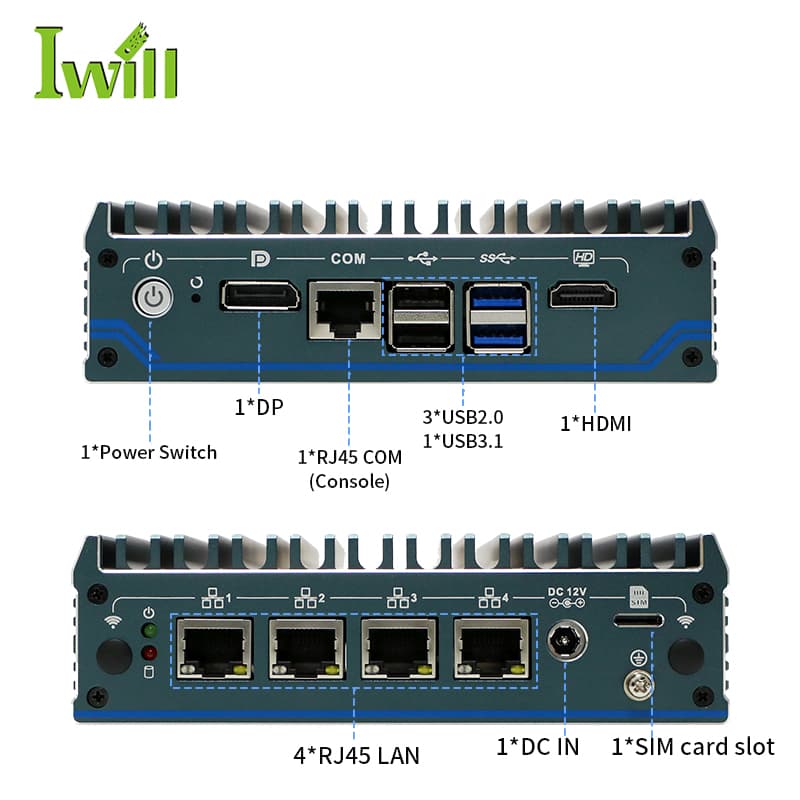

I/O
3x USB 2.0, 1x USB 3.1

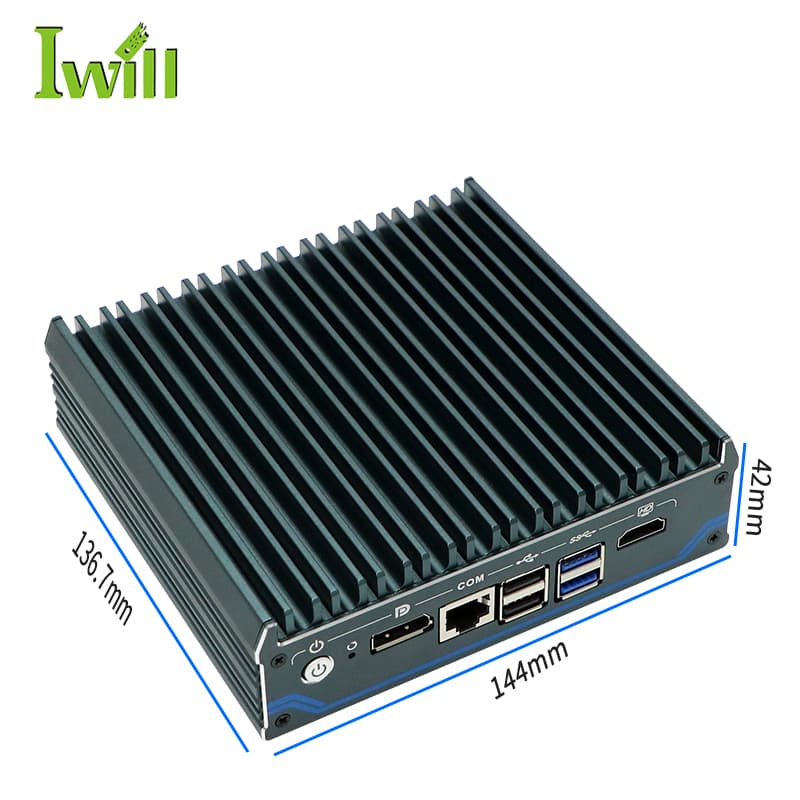

Dimensions
144 × 136.7 × 42mm
Weight
0.79kg
Platform features
TPM 2.0, router compatible

Typical applications

Where it deploys

  • pfSense/OPNsense
  • Software router
  • VPN Gateway
  • Firewall

Expansion & I/O

Room to configure

  • 3x M.2 (WiFi/4G/5G)
  • 1x M.2 2280
  • 1x M.2 SATA

Documentation

Datasheets and manuals

Nano-N1241 Datasheet

datasheet

Nano-N1241 Technical Manual

manual
