Mini PCs
Nano-N3422
Nano-N3422: Intel Core Ultra 5 125U / Ultra 7 155U (12 cores, up to 4.8GHz) with 3x 2.5G LAN.
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- Intel Core Ultra 5 125U / Ultra 7 155U (12 cores, up to 4.8GHz)
- DDR5 4800MHz memory up to 32GB
- 3x 2.5G LAN
- 3x HDMI + 1x Type-C
- TPM 2.0
- Fanless design
Platform overview
Built into your system, not just placed beside it.

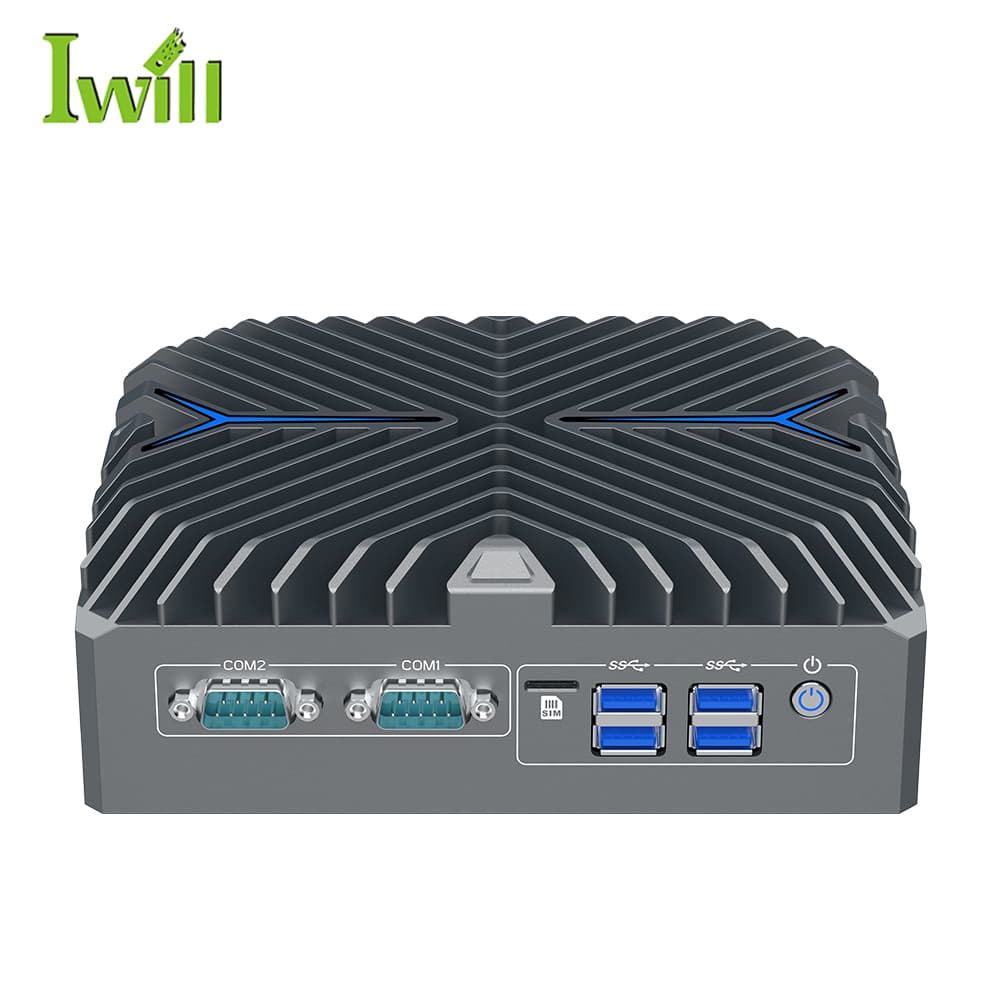

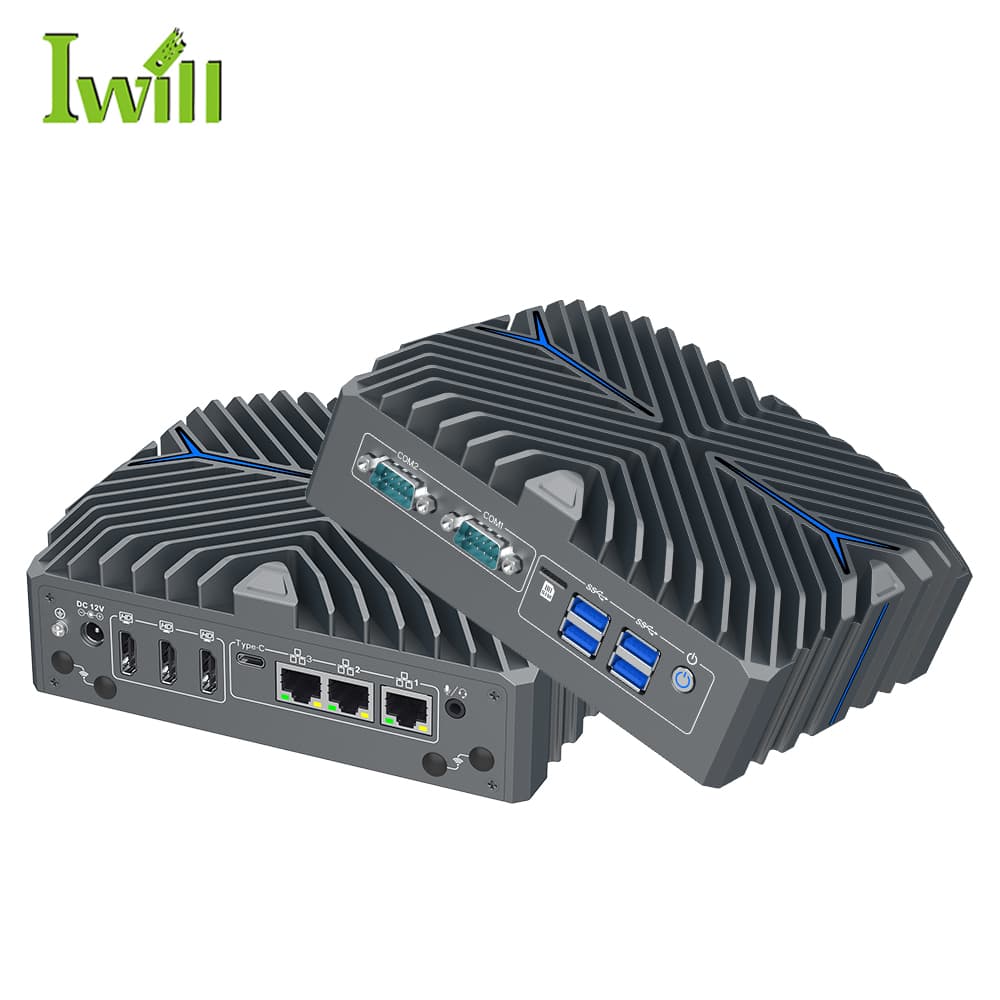

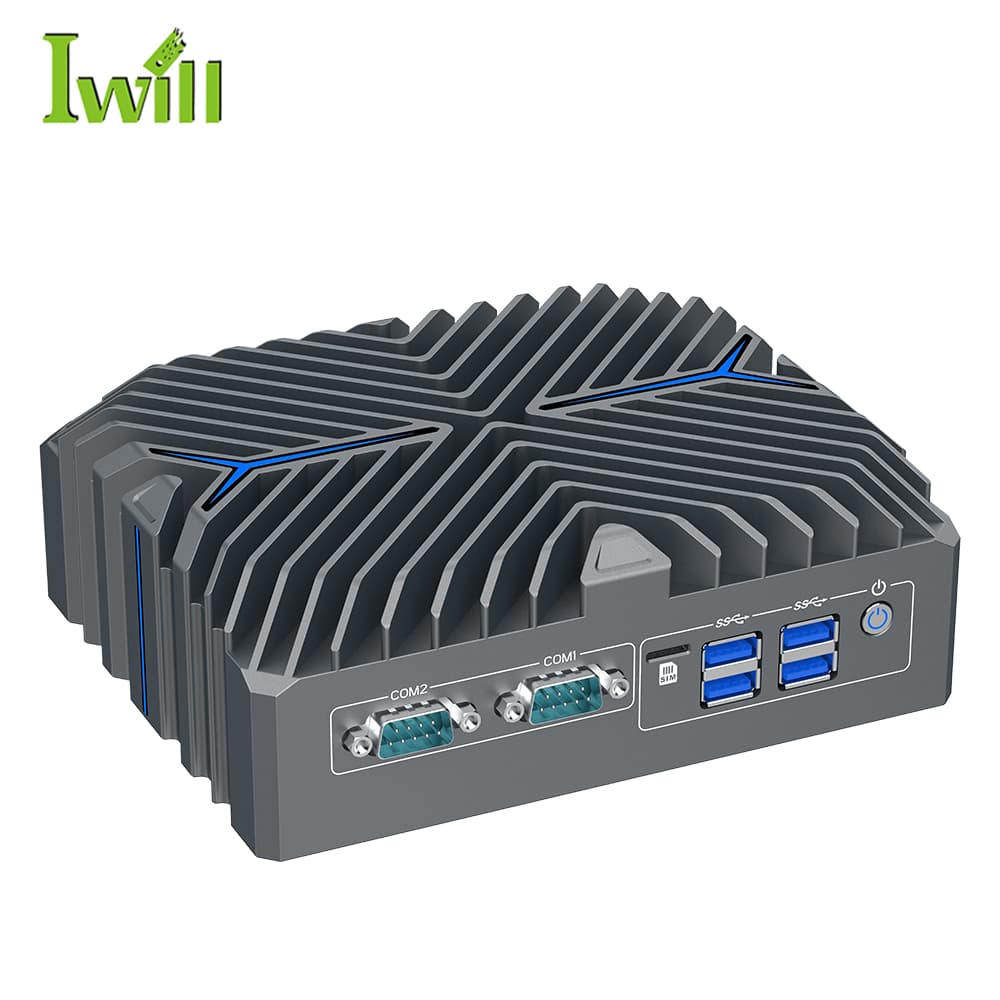

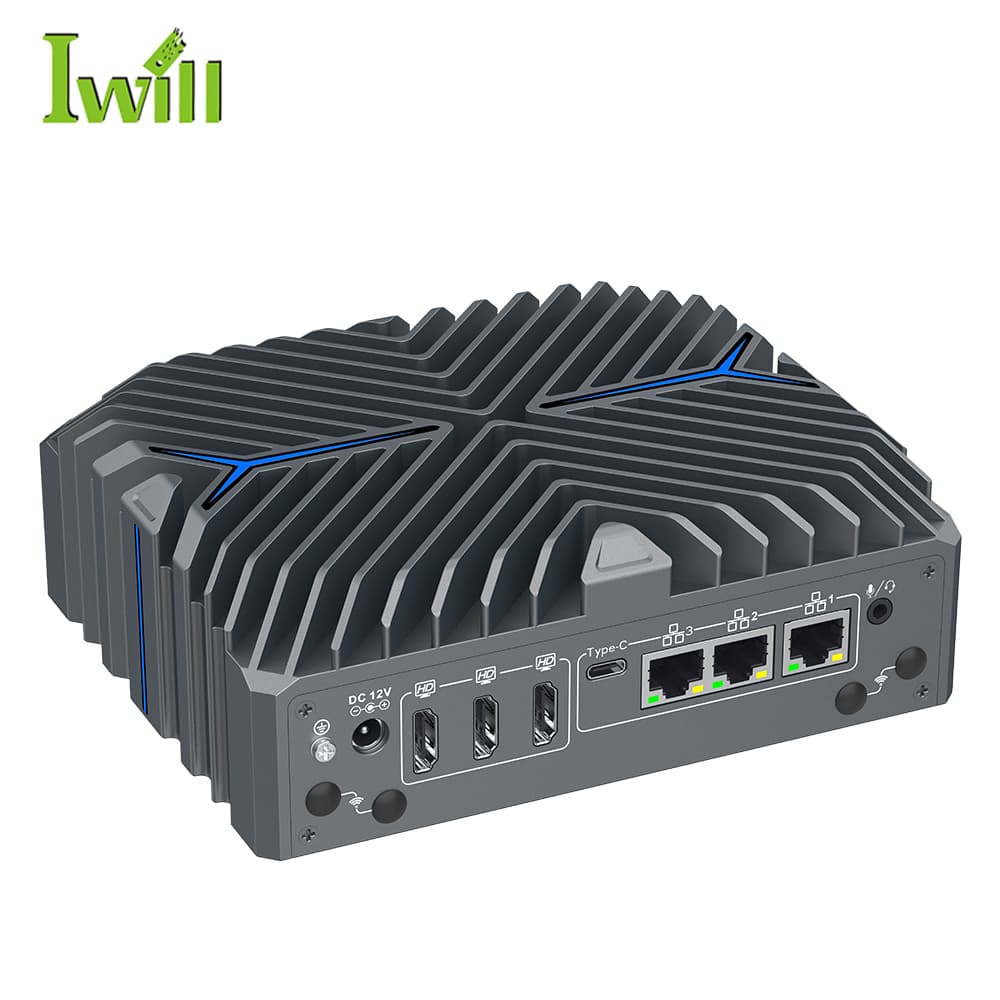

The Nano-N3422 is a compact mini PC from the IWILL Mini PCs range, built around Intel Core Ultra 5 125U / Ultra 7 155U (12 cores, up to 4.8GHz). Connectivity centers on 3x 2.5G LAN. Typical deployments include software router, VPN Gateway, firewall. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating environments in source documentation
Windows 11 · Windows 10 · Linux · pfSense · OPNsense
Technical specifications
- Processor
- Intel Core Ultra 5 125U / Ultra 7 155U (12 cores, up to 4.8GHz)
- Memory
- 1x DDR5 4800MHz, up to 32GB
- Networking
- 3x 2.5G LAN
- Display outputs
- 3x HDMI + 1x Type-C (4096×2160@60Hz)
- Storage
- 1x M.2 SSD + 2x M.2 2280 (NVMe)
- I/O
- 2x USB 3.1, 2x USB 2.0

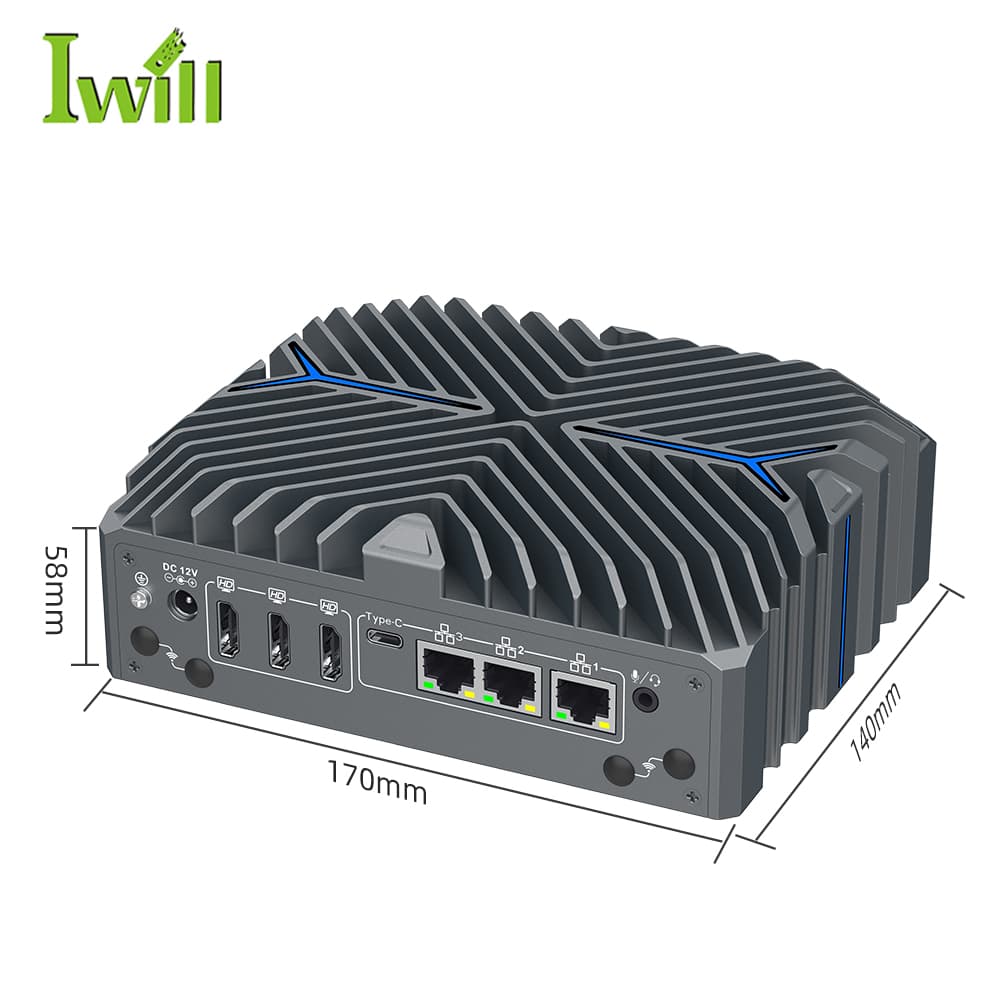

- Dimensions
- 170 × 140 × 58mm
- Weight
- 1.1kg
- Platform features
- TPM 2.0
Typical applications
Where it deploys
- Software router
- VPN Gateway
- Firewall
- Network Appliance
Expansion & I/O
Room to configure
- 1x M.2 SSD
- 2x M.2 2280 NVMe
