IWILL N1522 – Mini PC
N1522: Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz) with 2x RTL8111H Gigabit LAN (10/100/1000M).
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel Twin Lake N150 (4 cores, up to 3.6GHz)
- DDR5 4800MHz up to 16GB
- 2x HDMI 4K@60Hz
- 2x Gigabit LAN
- 8x USB (4x USB 3.2 + 4x USB 2.0)
- Wide range 9-36V DC input
Platform overview
Built into your system, not just placed beside it.

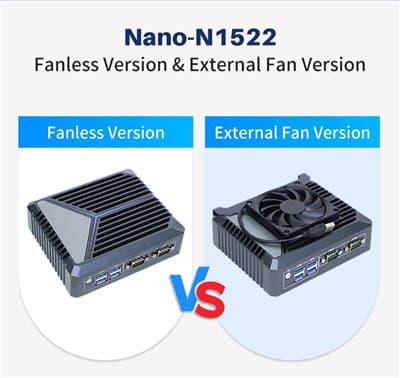

The N1522 is a compact mini PC from the IWILL Mini PCs range, built around Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz). Connectivity centers on 2x RTL8111H Gigabit LAN (10/100/1000M). It runs from 9-36V DC wide range power. Typical deployments include Edge Computing, IoT Gateway, digital signage. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
Windows 10 · Windows 11 · Linux (Ubuntu/Debian)
Technical specifications
- Processor
- Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz)

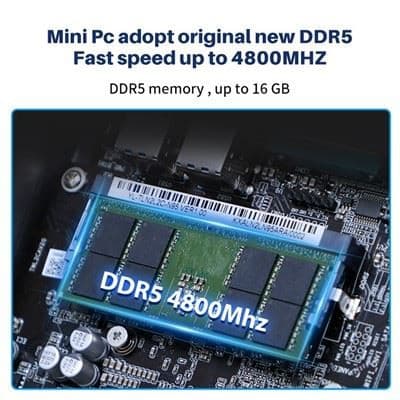

- Memory
- 1x DDR5 4800MHz SODIMM, up to 16GB
- Networking
- 2x RTL8111H Gigabit LAN (10/100/1000M)
- Display outputs
- 2x HDMI (4096×2160@60Hz)

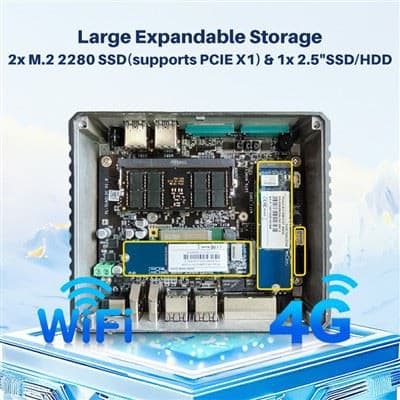

- Storage
- 2x M.2 2280 + 1x 2.5" HDD/SSD
- I/O
- 4x USB 3.2, 4x USB 2.0, 2x COM RS232/RS485
- Dimensions
- 150 × 126.5 × 45mm
- Power input
- 9-36V DC wide range
- Platform features
- Optional CAN bus, GPIO, Wi-Fi/4G module
Operating environment
- Operating temperature
- -10°C to 60°C (14°F to 140°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5–95% non-condensing
Typical applications
Where it deploys
- Edge Computing
- IoT Gateway
- Digital signage
- Industrial automation
Expansion & I/O
Room to configure
- 2x M.2 2280
- 1x 2.5" HDD/SSD
- Optional CAN bus / GPIO
