Firewall Appliances
Nano-N3261
Nano-N3261: Intel Core i5-1235U / i7-1255U (10 cores, 12 threads, up to 4.7GHz) with 4x Intel i226 2.5GbE + 2x 10GbE SFP+ (Intel 82599).
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- Intel Core i5-1235U / i7-1255U (10 cores, 12 threads)
- 2x 10GbE SFP+ (Intel 82599)
- 4x Intel i226 2.5GbE LAN
- DDR5 4800MHz up to 64GB (2x SODIMM)
- Fanless design
- RJ45 console port
Platform overview
Built into your system, not just placed beside it.
The Nano-N3261 is a multi-LAN network appliance from the IWILL Firewall Appliances range, built around Intel Core i5-1235U / i7-1255U (10 cores, 12 threads, up to 4.7GHz). Connectivity centers on 4x Intel i226 2.5GbE + 2x 10GbE SFP+ (Intel 82599). Typical deployments include Enterprise Firewall, SD-WAN Gateway, ISP Edge Security. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

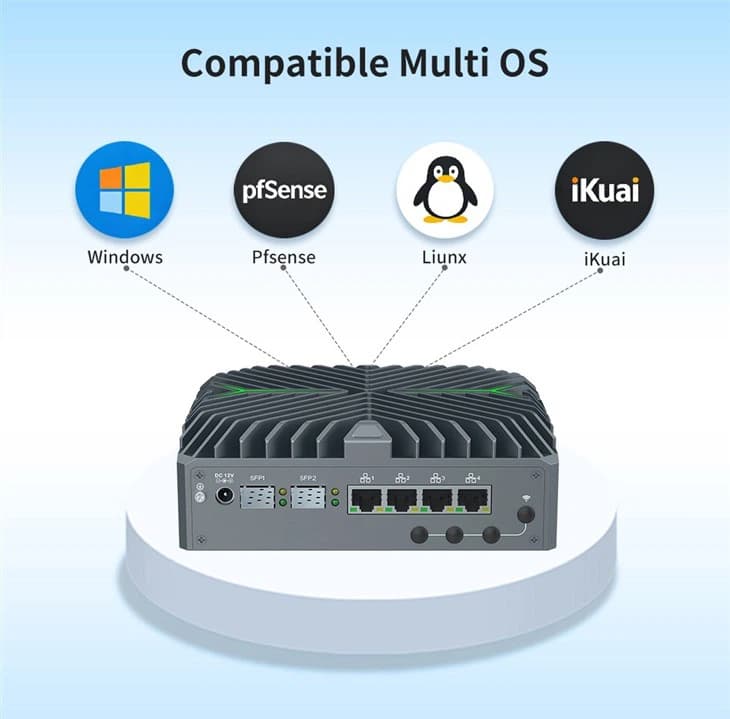

Supported operating environments in source documentation
pfSense · OPNsense · Linux (Ubuntu/Debian) · Windows 10/11
Technical specifications
- Processor
- Intel Core i5-1235U / i7-1255U (10 cores, 12 threads, up to 4.7GHz)
- Memory
- 2x DDR5 4800MHz SODIMM, up to 64GB

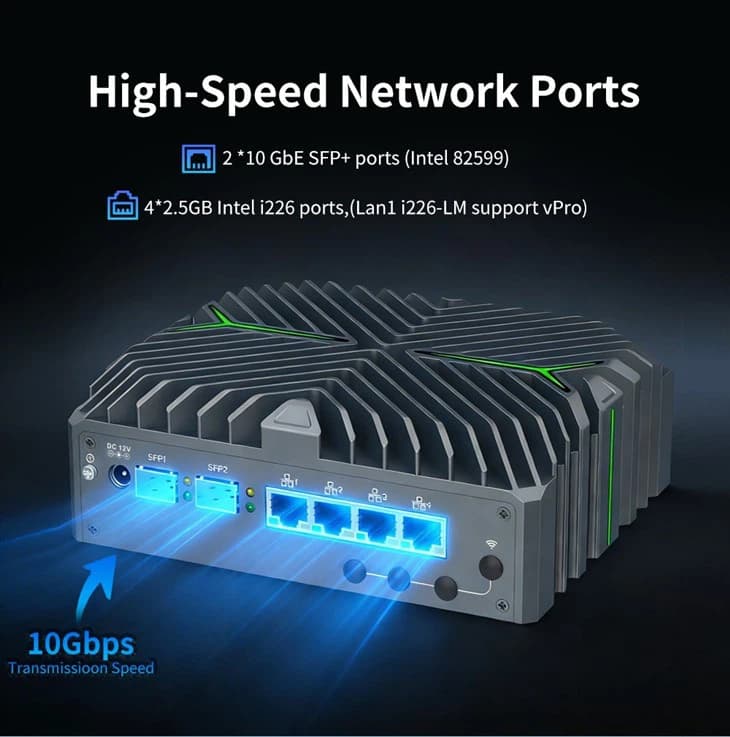

- Networking
- 4x Intel i226 2.5GbE + 2x 10GbE SFP+ (Intel 82599)

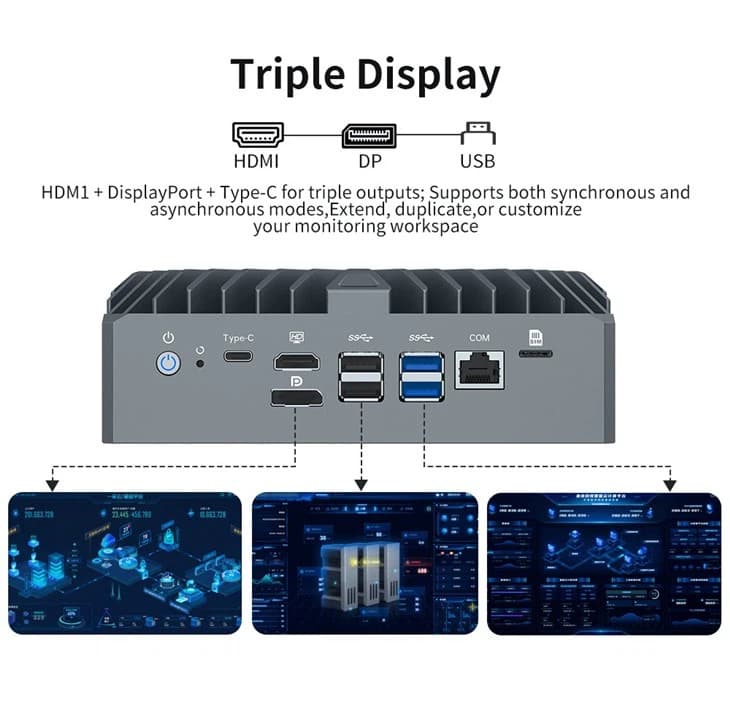

- Display outputs
- 1x HDMI + 1x DisplayPort + 1x USB-C (video)
- Storage
- 1x M.2 2280 + 1x 2.5" HDD/SSD

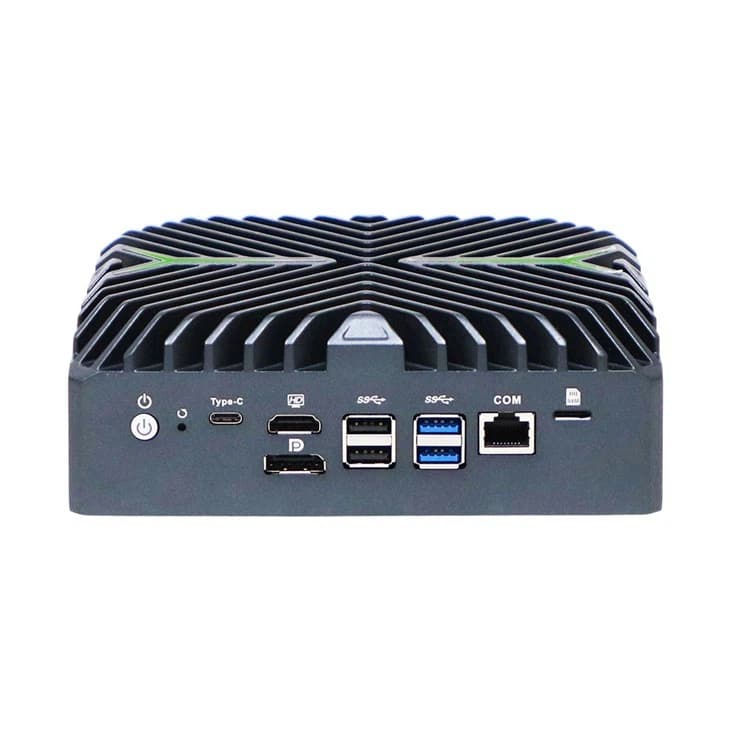

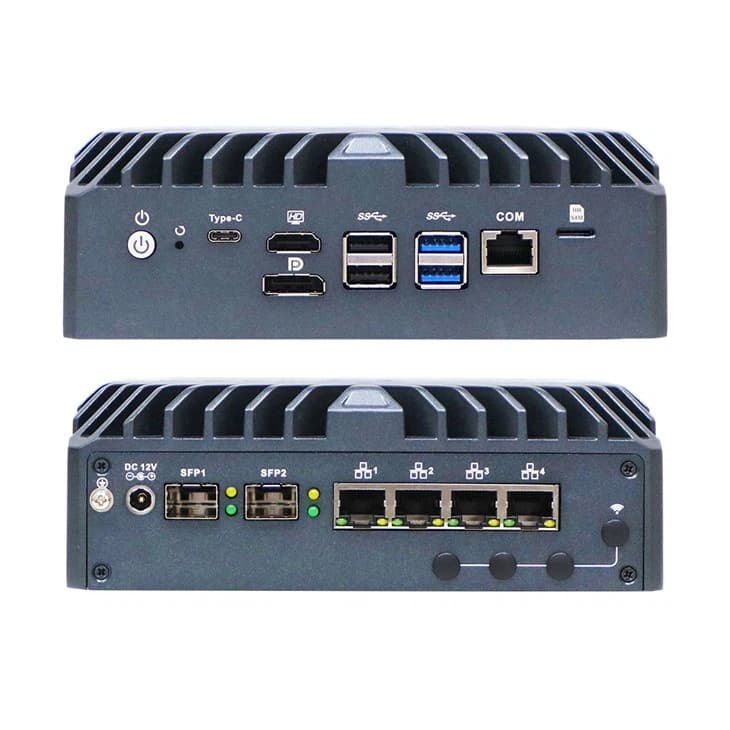

- I/O
- 2x USB 2.0, 2x USB 3.2, 1x RJ45 Console
- Dimensions
- 170 × 140 × 58mm
- Platform features
- Intel vPro (LAN1), PXE, Wake-on-LAN, Watchdog
Typical applications
Where it deploys
- Enterprise Firewall
- SD-WAN Gateway
- ISP Edge Security
- Data Center Protection
Expansion & I/O
Room to configure
- 1x M.2 2280
- 1x 2.5" HDD/SSD
