Firewall Appliances
Nano-N3061
Nano-N3061: Intel i3-10110U / i5-10210U / i7-10810U (Comet Lake, up to 4.2GHz) with 6x 2.5G LAN (3-6 option PoE).
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- Intel i3-10110U / i5-10210U / i7-10810U (Comet Lake, up to 4.2GHz)
- 6x 2.5G LAN (3-6 option PoE)
- 2x DDR4 2666MHz memory up to 64GB
- 1x HDMI, 1x DP
- Fanless design
- AES-NI encryption
Platform overview
Built into your system, not just placed beside it.
The Nano-N3061 is a multi-LAN network appliance from the IWILL Firewall Appliances range, built around intel i3-10110U / i5-10210U / i7-10810U (Comet Lake, up to 4.2GHz). Connectivity centers on 6x 2.5G LAN (3-6 option PoE). Typical deployments include Enterprise Firewall, VPN Gateway, Network Appliance. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating environments in source documentation
pfSense · OPNsense · Linux · Windows Server
Technical specifications
- Processor
- Intel i3-10110U / i5-10210U / i7-10810U (Comet Lake, up to 4.2GHz)
- Memory
- 2x DDR4 2666MHz, up to 64GB
- Networking
- 6x 2.5G LAN (3-6 option PoE)
- Display outputs
- 1x HDMI, 1x DP
- Storage
- 1x M.2 B-key (5G) + 3x M.2 (WiFi/4G/5G) + 1x M.2 SATA

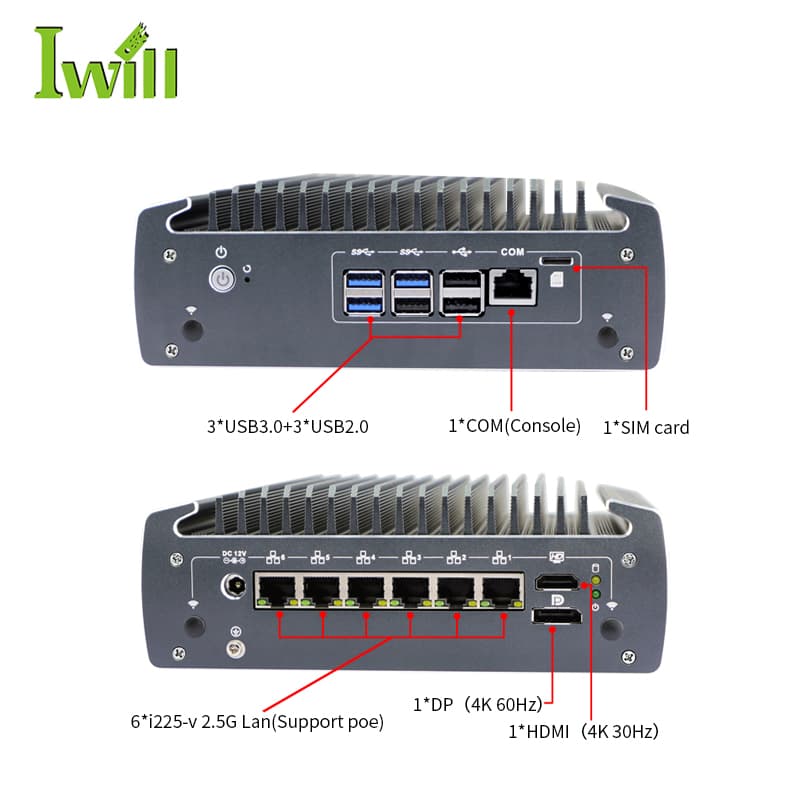

- I/O
- 1x COM

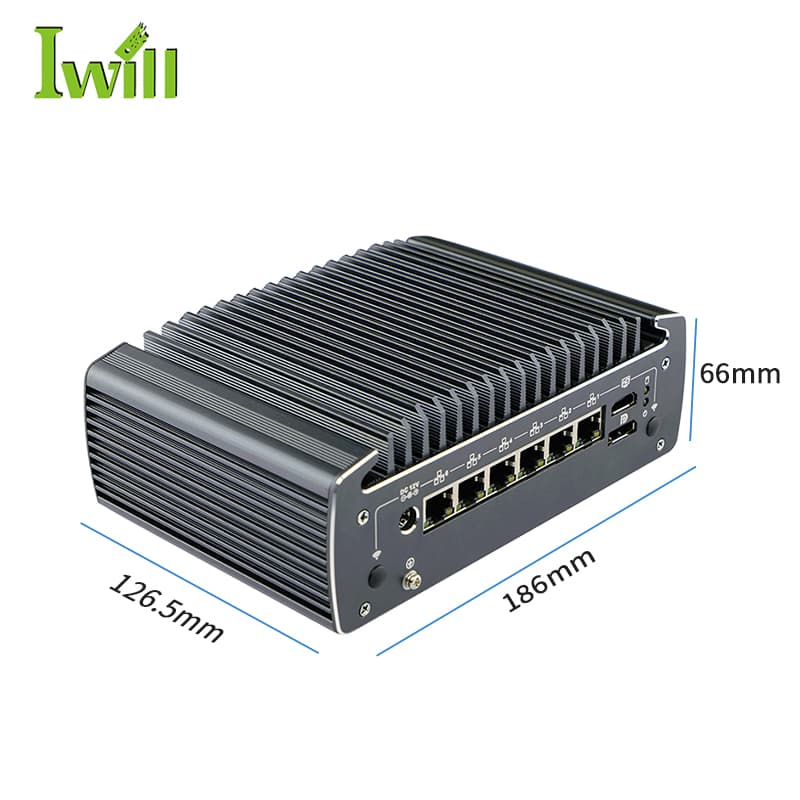

- Dimensions
- 186 × 126.5 × 66mm
- Weight
- 1.3kg
Typical applications
Where it deploys
- Enterprise Firewall
- VPN Gateway
- Network Appliance
Expansion & I/O
Room to configure
- 1x M.2 B-key (5G)
- 3x M.2 (WiFi/4G/5G)
- 1x M.2 SATA
Documentation
Datasheets and manuals
