Firewall Appliances
Nano-N3281
Intel Core Ultra 5 125U / Ultra 7 155U (12-16 cores, up to 4.8GHz) with 8x 2.5G LAN (1 vPro, 7 with PoE option).
Firewall Appliances
IWILL N1342 – Firewall Appliance (OPNsense/pfSense)
N1342: Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz) with 2x Intel i226-V 2.5GbE + 2x 10GbE SFP+ (Intel 82599).
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel Twin Lake N150 (4 cores, up to 3.6GHz)

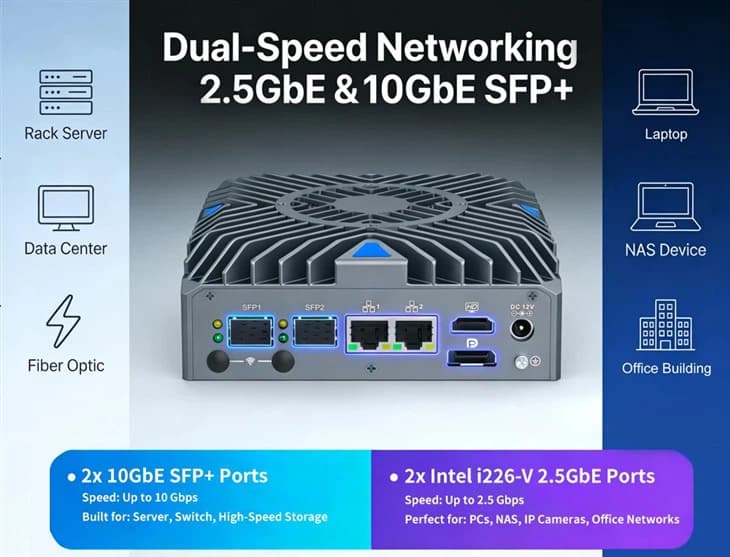

- 2x 10GbE SFP+ (Intel 82599)
- 2x Intel i226-V 2.5GbE LAN
- DDR5 4800MHz up to 16GB
- 2x COM RS232/RS485 (Phoenix connector)
- TPM 2.0
Platform overview
Built into your system, not just placed beside it.

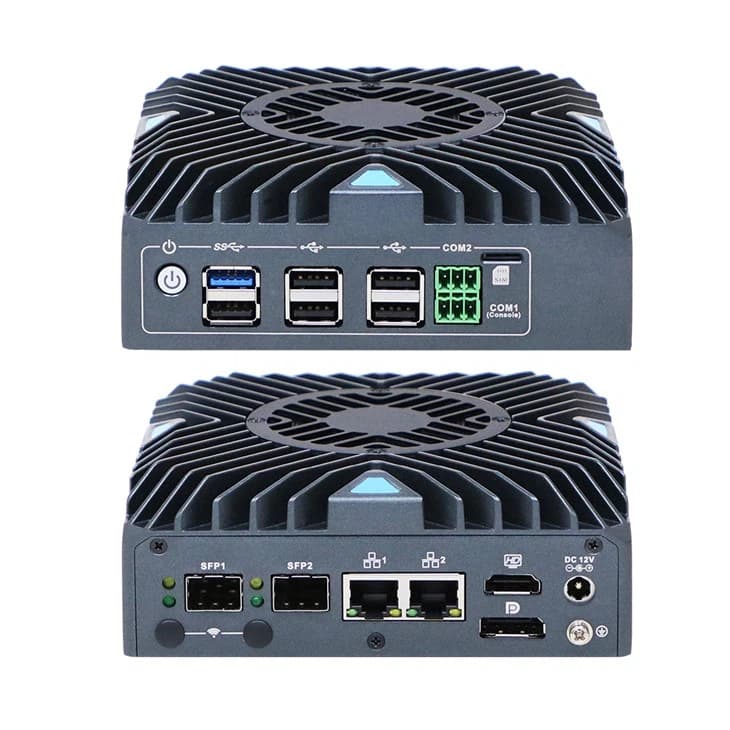

The N1342 is a multi-LAN network appliance from the IWILL Firewall Appliances range, built around Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz). Connectivity centers on 2x Intel i226-V 2.5GbE + 2x 10GbE SFP+ (Intel 82599). Typical deployments include firewall / Router, Network Storage, Edge Computing. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
pfSense · OPNsense · Linux (Ubuntu/Debian) · Windows 10/11
Technical specifications
- Processor
- Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz)
- Memory
- 1x DDR5 4800MHz SODIMM, up to 16GB
- Networking
- 2x Intel i226-V 2.5GbE + 2x 10GbE SFP+ (Intel 82599)
- Display outputs
- 1x HDMI + 1x DisplayPort (dual 4K)
- Storage
- 1x M.2 2280 + 1x 2.5" HDD/SSD

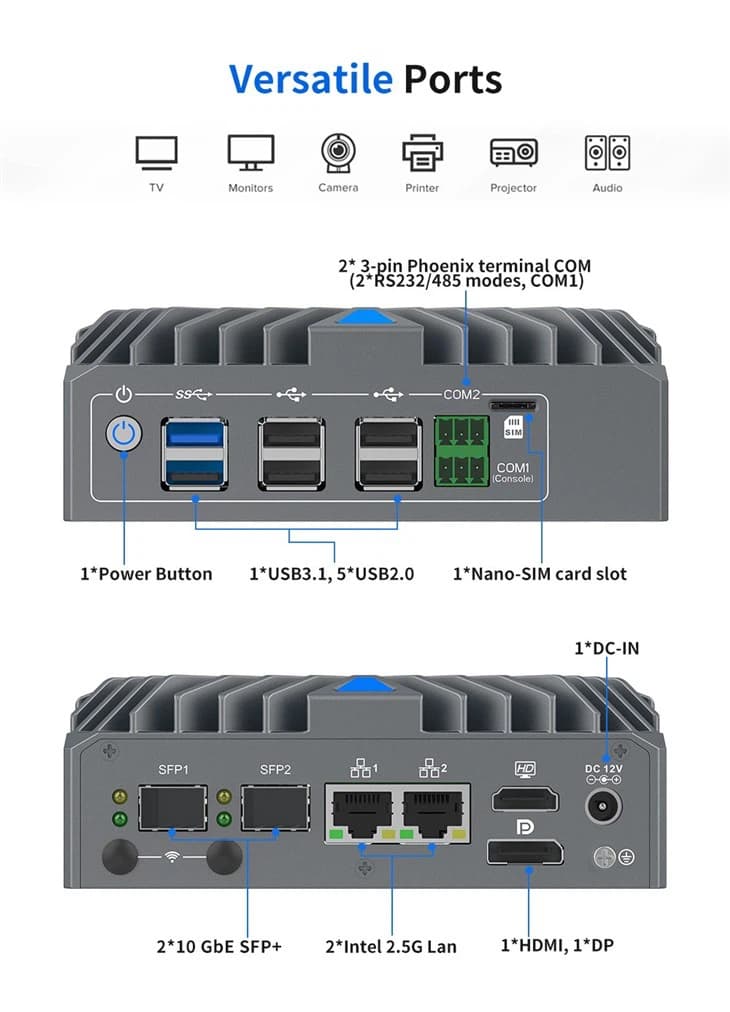

- I/O
- 1x USB 3.1, 5x USB 2.0, 2x COM RS232/RS485
- Dimensions
- 135 × 135 × 48mm
- Platform features
- TPM 2.0, PXE, Wake-on-LAN, Watchdog
Operating environment
- Operating temperature
- -10°C to 60°C (14°F to 140°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5–95% non-condensing
Typical applications
Where it deploys
- Firewall / Router
- Network Storage
- Edge Computing
- IoT Gateway
Expansion & I/O
Room to configure
- 1x M.2 2280
- 1x 2.5" HDD/SSD
- M.2 slot for Wi-Fi / 4G/5G module
