Firewall Appliances

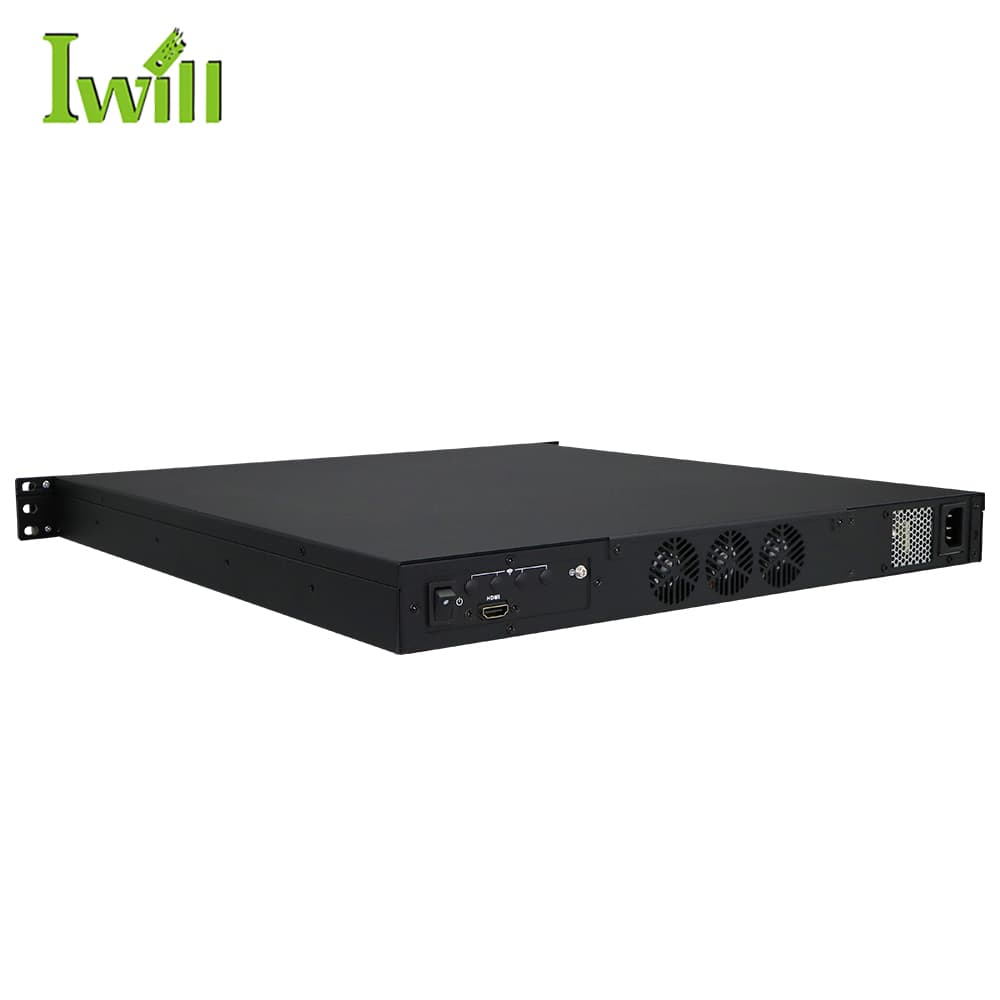

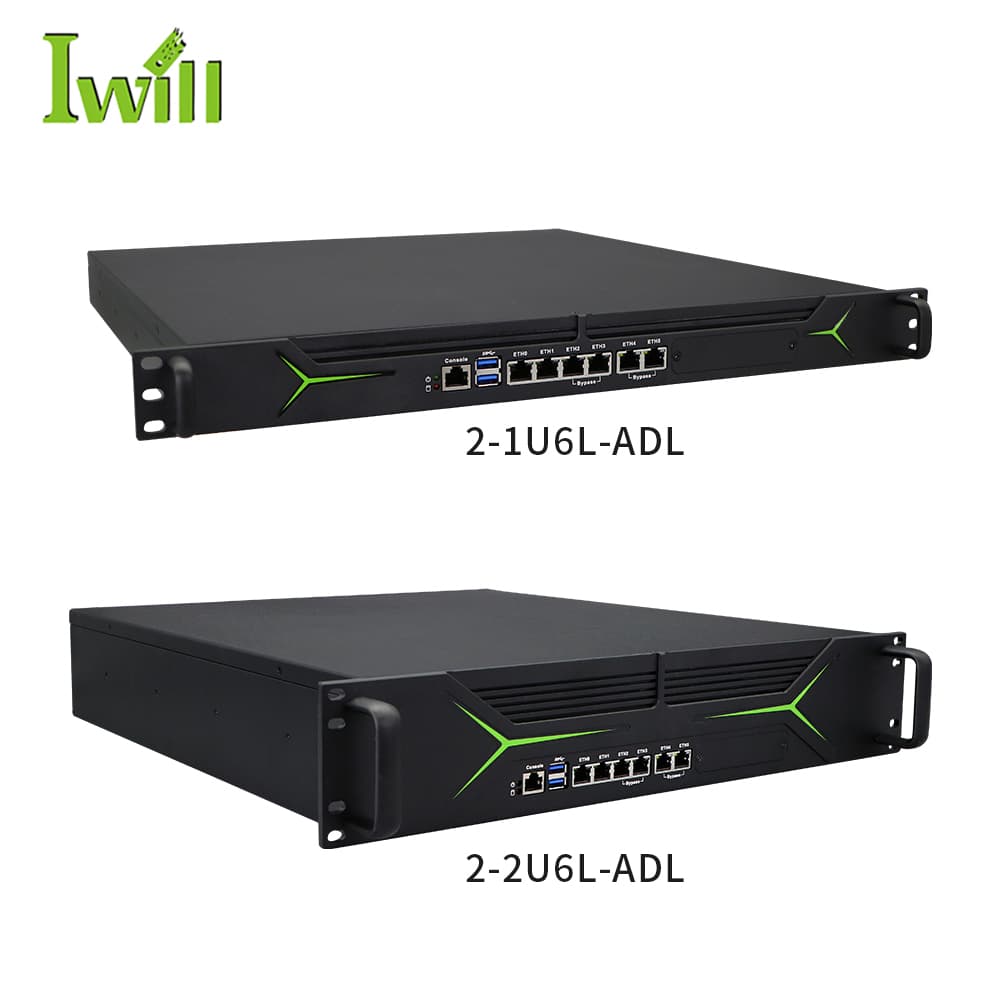

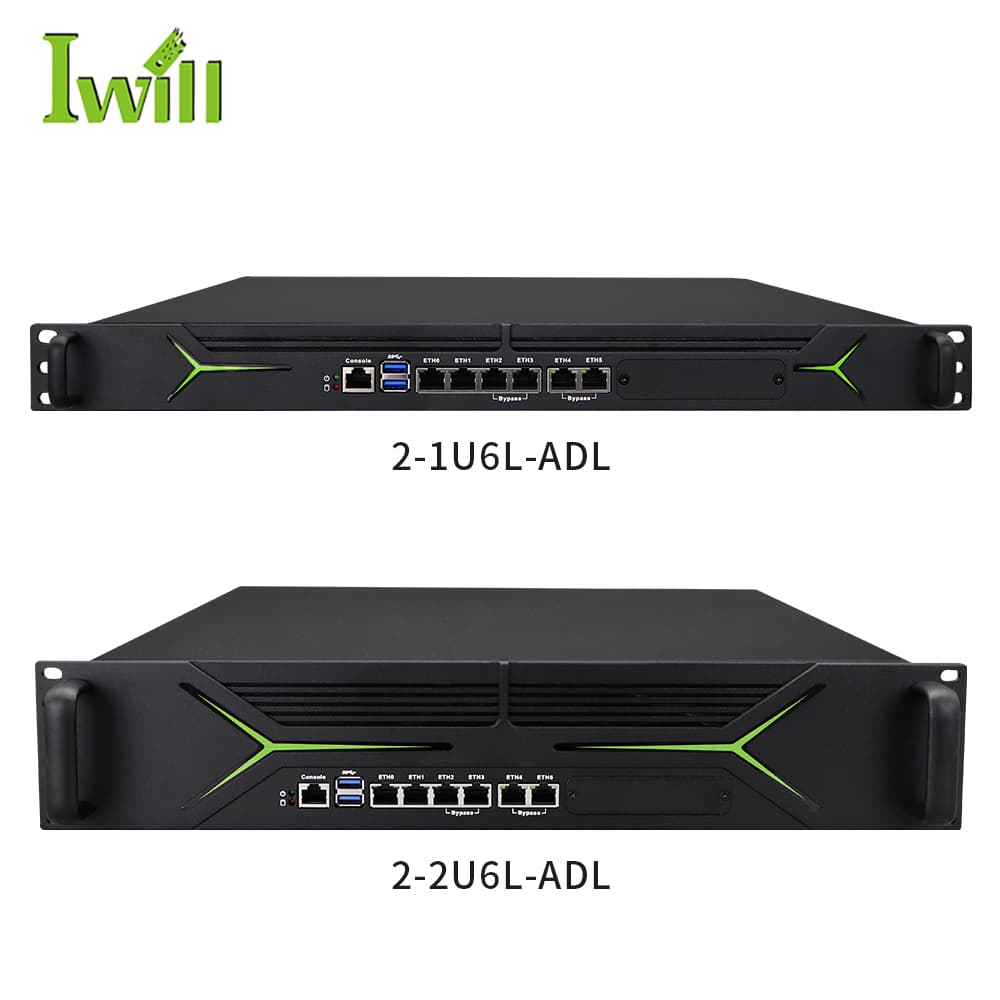

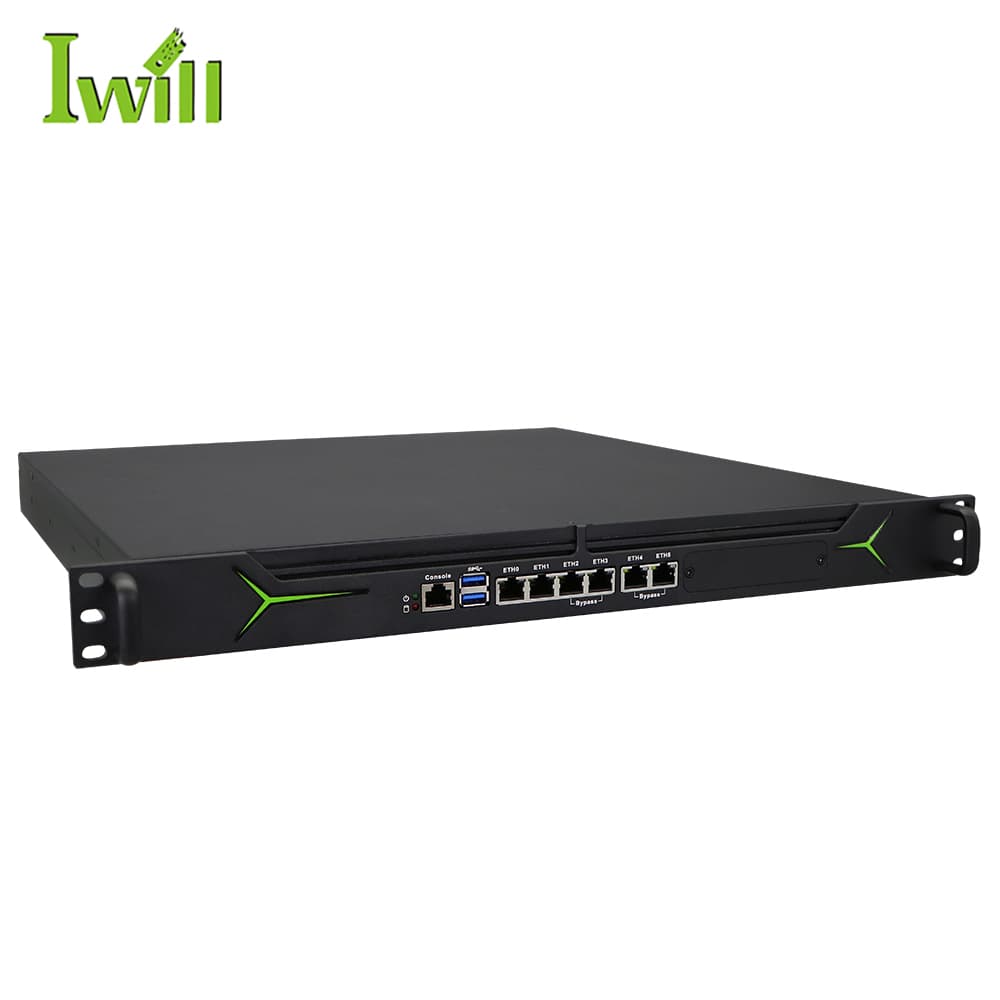

1U6L-ADL
1U6L-ADL: Intel i3-12100 / i5-12400 / i7-12700 (Alder Lake, 4-8 cores) with 6x 1000M LAN (2 bypass groups).
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- Intel i3-12100 / i5-12400 / i7-12700 (Alder Lake, 4-8 cores)
- 6x 1000M LAN (2 bypass groups)
- 2x DDR4 3200MHz memory up to 128GB
- 1U Rackmount chassis
- TPM 2.0, console support
- AES-NI encryption
Platform overview
Built into your system, not just placed beside it.
The 1U6L-ADL is a multi-LAN network appliance from the IWILL Firewall Appliances range, built around intel i3-12100 / i5-12400 / i7-12700 (Alder Lake, 4-8 cores). Connectivity centers on 6x 1000M LAN (2 bypass groups). Typical deployments include Datacenter Firewall, Enterprise Security, ISP/MSP. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating environments in source documentation
pfSense · OPNsense · Windows Server 2022 · Linux (RHEL/Ubuntu)
Technical specifications
- Processor
- Intel i3-12100 / i5-12400 / i7-12700 (Alder Lake, 4-8 cores)
- Memory
- 2x DDR4 3200MHz, up to 128GB
- Networking
- 6x 1000M LAN (2 bypass groups)
- Display outputs
- 1x HDMI
- Storage
- 1x M.2 M-key SATA + 1x M.2 M-key + 1x M.2 E-key + 1x M.2 B-key
- Form factor
- 1U Rackmount

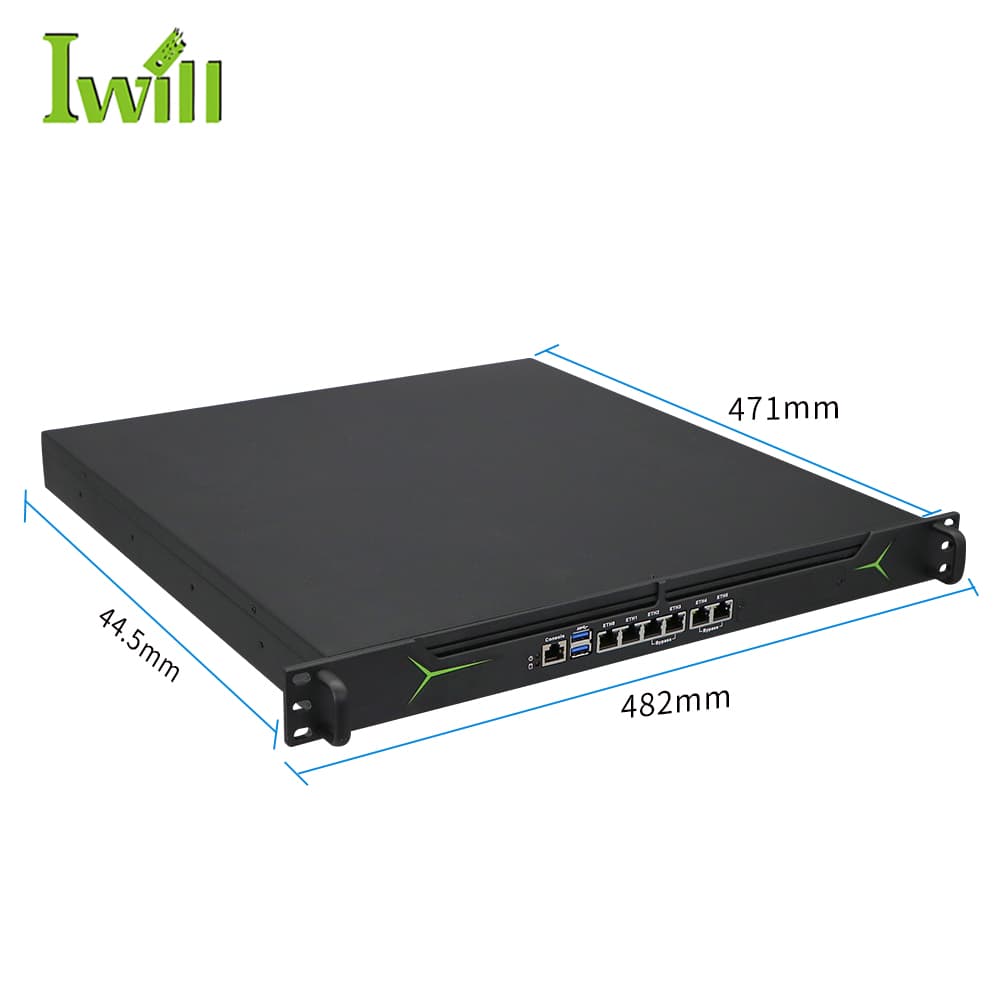

- Dimensions
- 482 × 471 × 44.5mm
- Weight
- 6.11kg
- Platform features
- TPM 2.0, console support
Typical applications
Where it deploys
- Datacenter Firewall
- Enterprise Security
- ISP/MSP
Expansion & I/O
Room to configure
- 1x M.2 M-key SATA
- 1x M.2 M-key
- 1x M.2 E-key
- 1x M.2 B-key
Documentation
Datasheets and manuals
