Firewall Appliances
N1342
Intel Twin Lake N150 (4 cores, 4 threads, up to 3.6GHz) with 2x Intel i226-V 2.5GbE + 2x 10GbE SFP+ (Intel 82599).
Firewall Appliances
IWILL Nano-N3161 – Firewall Appliance (OPNsense/pfSense)
Nano-N3161: Intel i3-1215U / i5-1235U / i7-1255U (Alder Lake, up to 4.4GHz) with 6x 2.5G LAN (1-4 option PoE).
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel i3-1215U / i5-1235U / i7-1255U (Alder Lake, up to 4.4GHz)
- 6x 2.5G LAN (1-4 with PoE option)
- 2x DDR4 3200MHz memory up to 64GB
- 1x DP 1.4a, 1x HDMI 2.1
- Fanless design
- AES-NI encryption
Platform overview
Built into your system, not just placed beside it.
The Nano-N3161 is a multi-LAN network appliance from the IWILL Firewall Appliances range, built around Intel i3-1215U / i5-1235U / i7-1255U (Alder Lake, up to 4.4GHz). Connectivity centers on 6x 2.5G LAN (1-4 option PoE). Typical deployments include Enterprise Firewall, VPN Gateway, IDS/IPS. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
pfSense · OPNsense · VyOS · Linux · Windows 10/11
Technical specifications
- Processor
- Intel i3-1215U / i5-1235U / i7-1255U (Alder Lake, up to 4.4GHz)
- Memory
- 2x DDR4 3200MHz, up to 64GB
- Networking
- 6x 2.5G LAN (1-4 option PoE)
- Display outputs
- 1x DP 1.4a, 1x HDMI 2.1
- Storage
- 3x M.2 (WiFi/4G/5G) + 1x M.2 NVMe + 1x M.2 B-key

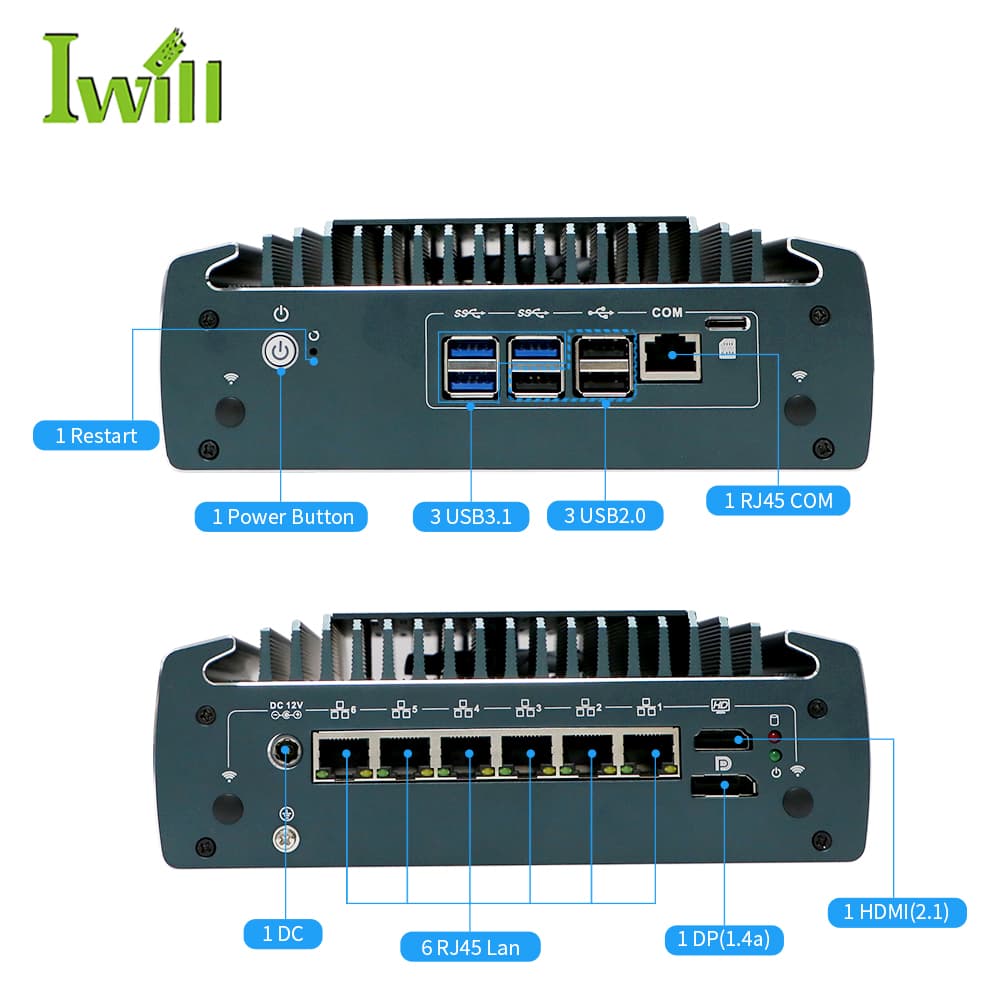

- I/O
- 3x USB 3.1, 3x USB 2.0, 1x COM

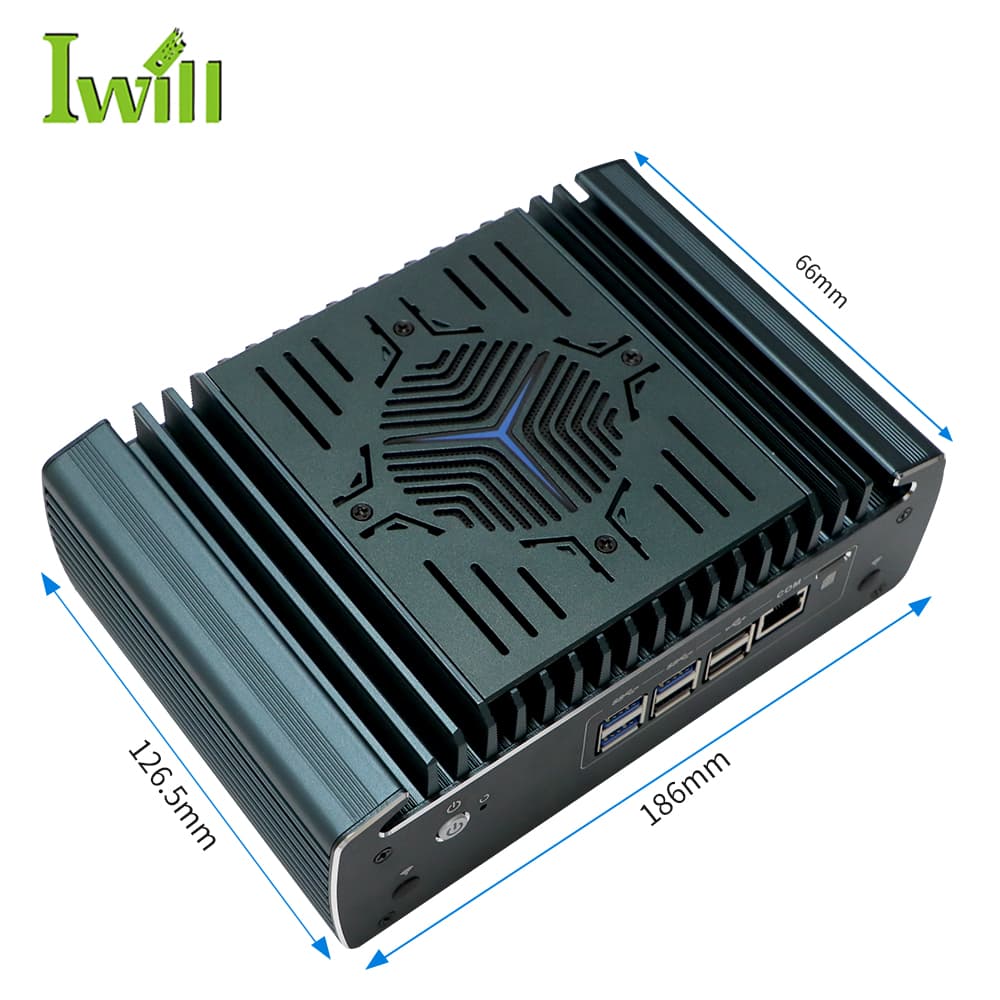

- Dimensions
- 186 × 126.5 × 66mm
- Weight
- 1.3kg
Operating environment
- Operating temperature
- -10°C to 60°C (14°F to 140°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5–95% non-condensing
Typical applications
Where it deploys
- Enterprise Firewall
- VPN Gateway
- IDS/IPS
- Network Monitoring
Expansion & I/O
Room to configure
- 3x M.2 (WiFi/4G/5G)
- 1x M.2 NVMe
- 1x M.2 B-key
