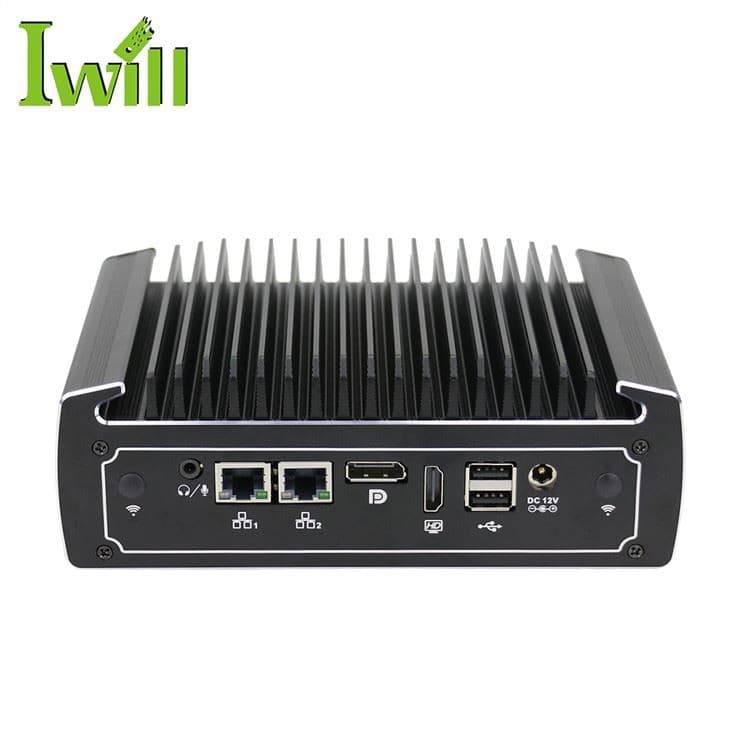

IWILL Nano-N3022 – Fanless Mini PC
Nano-N3022: Intel i3-10110U / i5-10210U (Comet Lake, up to 4.2GHz) with 2x 1000M LAN.
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel i3-10110U / i5-10210U (Comet Lake, up to 4.2GHz)
- 1x DDR4 2666/2933MHz memory up to 32GB
- 2x 1000M LAN
- 1x HDMI, 1x DP
- Fanless design
- 3x M.2 slots
Platform overview
Built into your system, not just placed beside it.
The Nano-N3022 is a compact mini PC from the IWILL Mini PCs range, built around Intel i3-10110U / i5-10210U (Comet Lake, up to 4.2GHz). Connectivity centers on 2x 1000M LAN. Typical deployments include office computer, Edge Computing, digital signage. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
Windows 10 · Windows 11 · Linux
Technical specifications
- Processor
- Intel i3-10110U / i5-10210U (Comet Lake, up to 4.2GHz)
- Memory
- 1x DDR4 2666/2933MHz, up to 32GB
- Networking
- 2x 1000M LAN
- Display outputs
- 1x HDMI, 1x DP
- Storage
- 3x M.2 2280 (PCIe ×4 and SATA)
- I/O
- 2x COM, 2x USB 2.0
- Dimensions
- 170 × 140 × 58mm
- Weight
- 1.3kg
Operating environment
- Operating temperature
- -10°C to 60°C (14°F to 140°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5–95%
Typical applications
Where it deploys
- Office computer
- Edge Computing
- Digital signage
Expansion & I/O
Room to configure
- 3x M.2 2280 (PCIe ×4 and SATA)
