Mini PCs
N3-PLUS
N3-PLUS: Intel Celeron J1900 (4 cores/4 threads, 1.99GHz, Turbo 2.42GHz) with 2x Gigabit LAN (RTL8111E).
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- Intel Celeron J1900 (4 cores/4 threads, up to 2.42GHz)
- HDMI + VGA dual display
- DDR3L memory up to 8GB
- 6x USB (1x USB 3.0)
- 2x Gigabit LAN (RTL8111E)
- Fanless aluminum design
Platform overview
Built into your system, not just placed beside it.

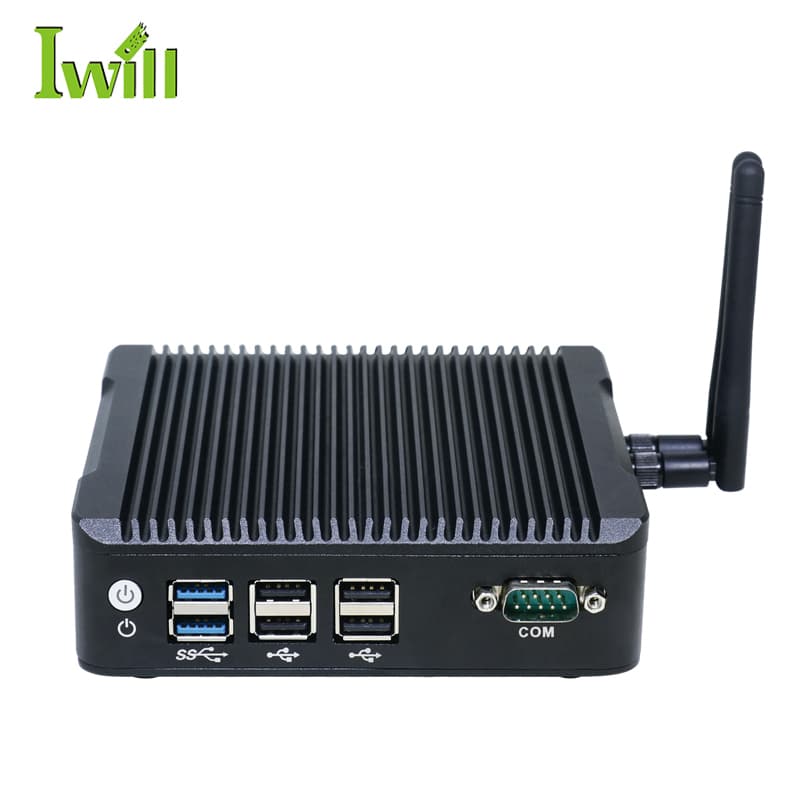

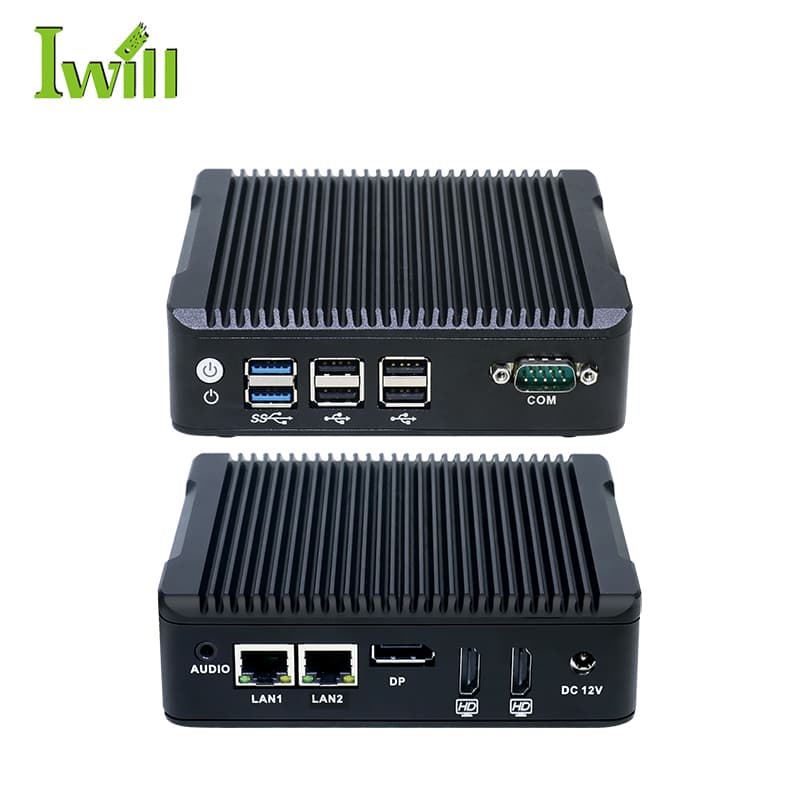

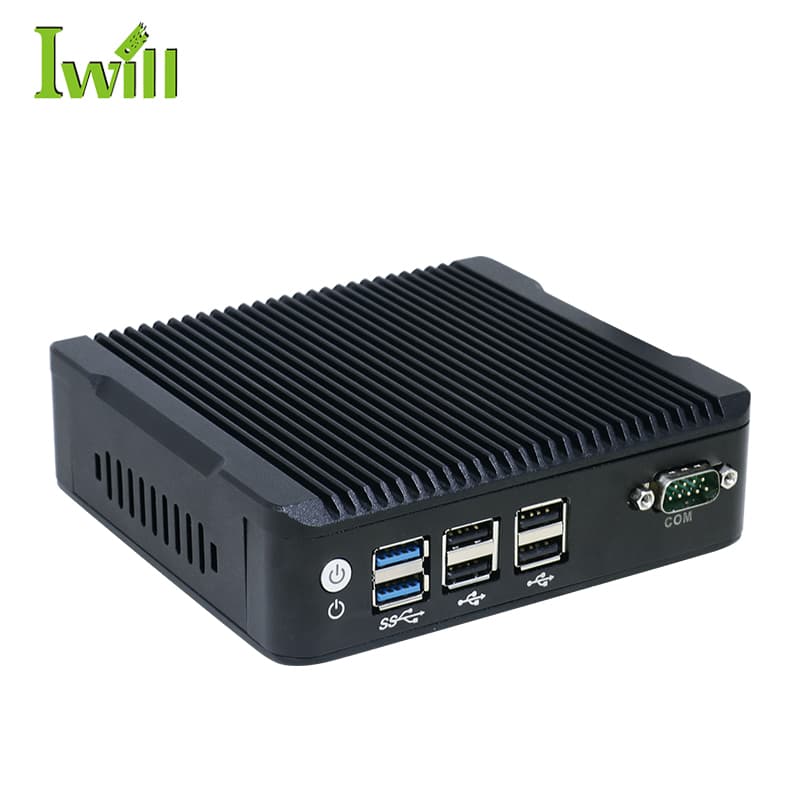

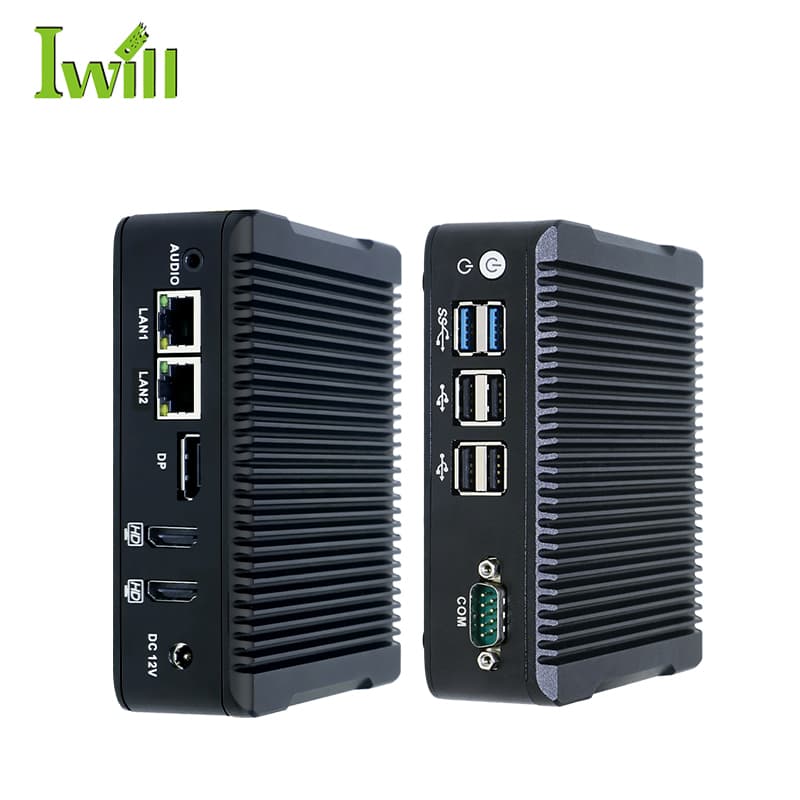

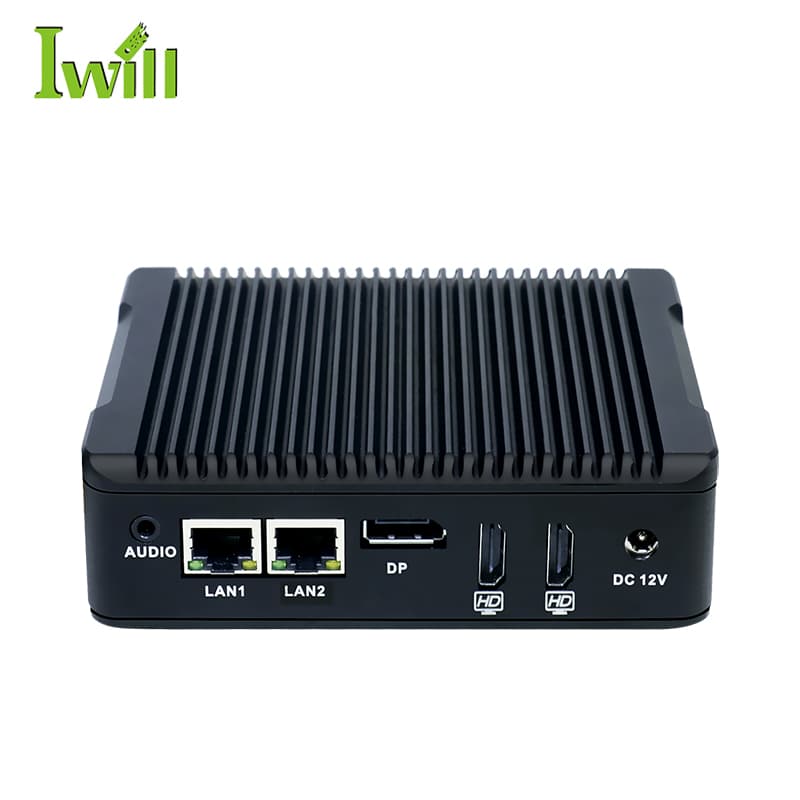

The N3-PLUS is a compact mini PC from the IWILL Mini PCs range, built around Intel Celeron J1900 (4 cores/4 threads, 1.99GHz, Turbo 2.42GHz). Connectivity centers on 2x Gigabit LAN (RTL8111E). It runs from DC 12V power. Typical deployments include industrial automation, healthcare, logistics and transportation. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating environments in source documentation
Windows 10 · Windows 7 · Linux
Technical specifications
- Processor
- Intel Celeron J1900 (4 cores/4 threads, 1.99GHz, Turbo 2.42GHz)
- Memory
- 1x DDR3L 1333/1600MHz SODIMM, up to 8GB
- Graphics
- Intel HD Graphics
- Display outputs
- 1x HDMI + 1x VGA, 2 independent display
- Networking
- 2x Gigabit LAN (RTL8111E)
- Storage
- 1x mSATA + 1x 2.5" HDD
- I/O
- 1x USB 3.0, 5x USB 2.0, 1x RS232 COM, 1x Audio
- Expansion
- 1x Mini PCIe (WiFi/BT), 1x Mini PCIe (mSATA)
- Power input
- DC 12V

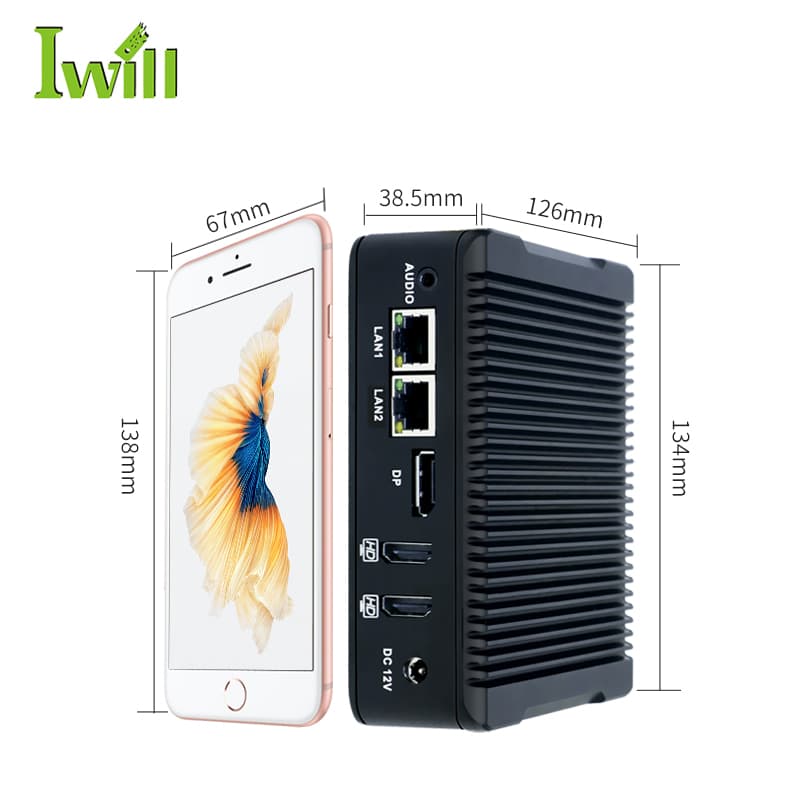

- Dimensions
- 134 × 126 × 38.5mm
- Weight
- 0.7kg
- Certifications
- CE, CCC, FCC Class A, RoHS
- Platform features
- Watchdog, Wake on LAN, PXE boot, Timing boot
Typical applications
Where it deploys
- Industrial automation
- Healthcare
- Logistics and transportation
- Warehouses
- Electronic education
Expansion & I/O
Room to configure
- 1x Mini PCIe (WiFi/Bluetooth)
- 1x Mini PCIe (mSATA SSD)
