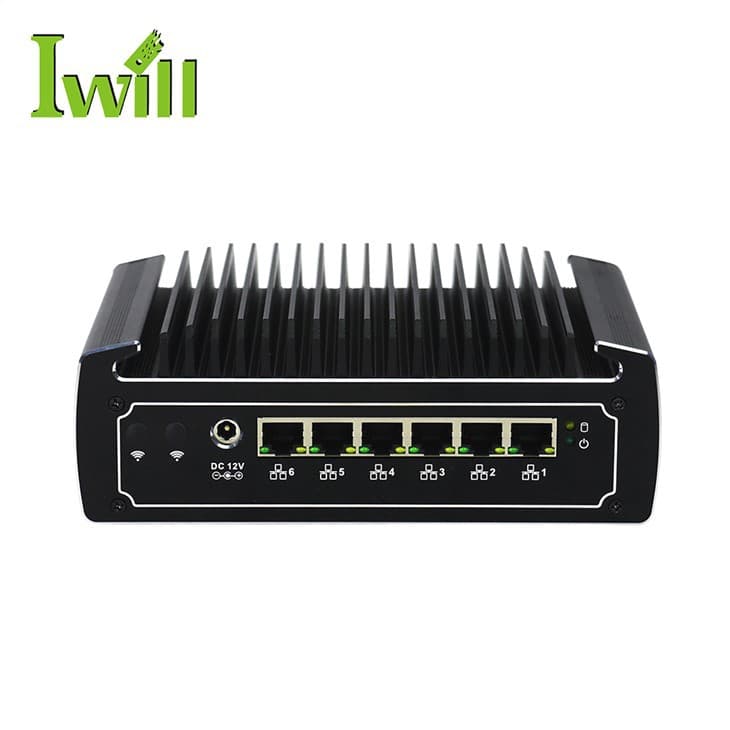

IWILL Nano-N18 – Firewall Appliance (OPNsense/pfSense)
Nano-N18: Intel i4205U / i5-8265U / i7-8565U (8th Gen Whiskey Lake) with 6x 1000M LAN.
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel i4205U / i5-8265U / i7-8565U (8th Gen Whiskey Lake)
- 2x DDR4 2133/2400MHz memory up to 32GB
- 6x 1000M LAN
- 1x HDMI, 1x COM
- Fanless design
- 2x 2.5" SSD/HDD + 2x mSATA
Platform overview
Built into your system, not just placed beside it.
The Nano-N18 is a multi-LAN network appliance from the IWILL Firewall Appliances range, built around Intel i4205U / i5-8265U / i7-8565U (8th Gen Whiskey Lake). Connectivity centers on 6x 1000M LAN. Typical deployments include firewall, VPN Gateway, Network Appliance. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
pfSense · OPNsense · Linux · Windows 10/11
Technical specifications
- Processor
- Intel i4205U / i5-8265U / i7-8565U (8th Gen Whiskey Lake)
- Memory
- 2x DDR4 2133/2400MHz, up to 32GB
- Networking
- 6x 1000M LAN
- Display outputs
- 1x HDMI
- Storage
- 2x 2.5" SSD/HDD + 2x mSATA
- I/O
- 1x COM
- Dimensions
- 186 × 126.5 × 66mm
- Weight
- 1.3kg
Operating environment
- Operating temperature
- 0°C to 50°C (commercial), -20°C to 50°C (industrial)
- Storage temperature
- -30°C to 70°C (-22°F to 158°F)
- Humidity
- 5–95%
Typical applications
Where it deploys
- Firewall
- VPN Gateway
- Network Appliance
- SD-WAN
Expansion & I/O
Room to configure
- 2x 2.5" SSD/HDD slots
- 2x mSATA
