Mini PCs
Nano-N1221
Nano-N1221: Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz) with 2x RJ45 LAN.
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
- DDR4 3200MHz memory up to 32GB
- 2x RJ45 LAN
- 2x HDMI 4K@60Hz outputs
- TPM 2.0
- Fanless design
Platform overview
Built into your system, not just placed beside it.

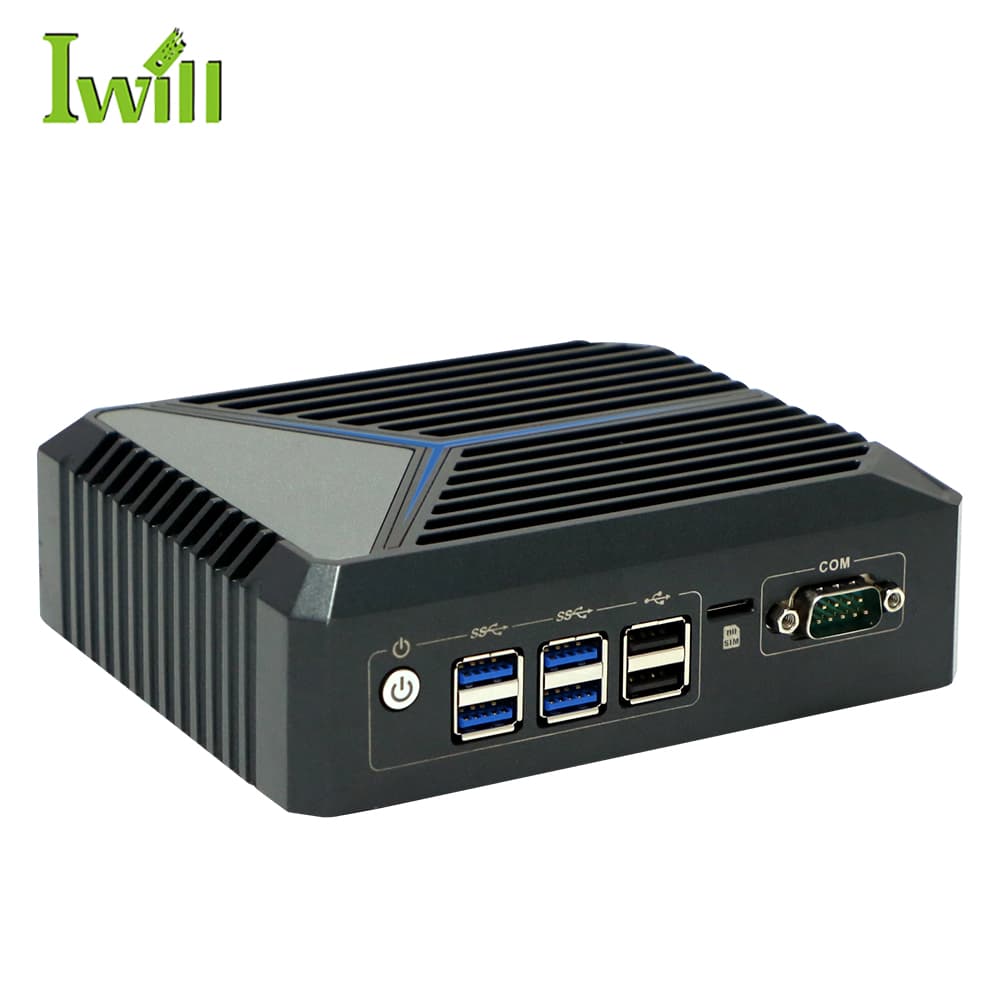

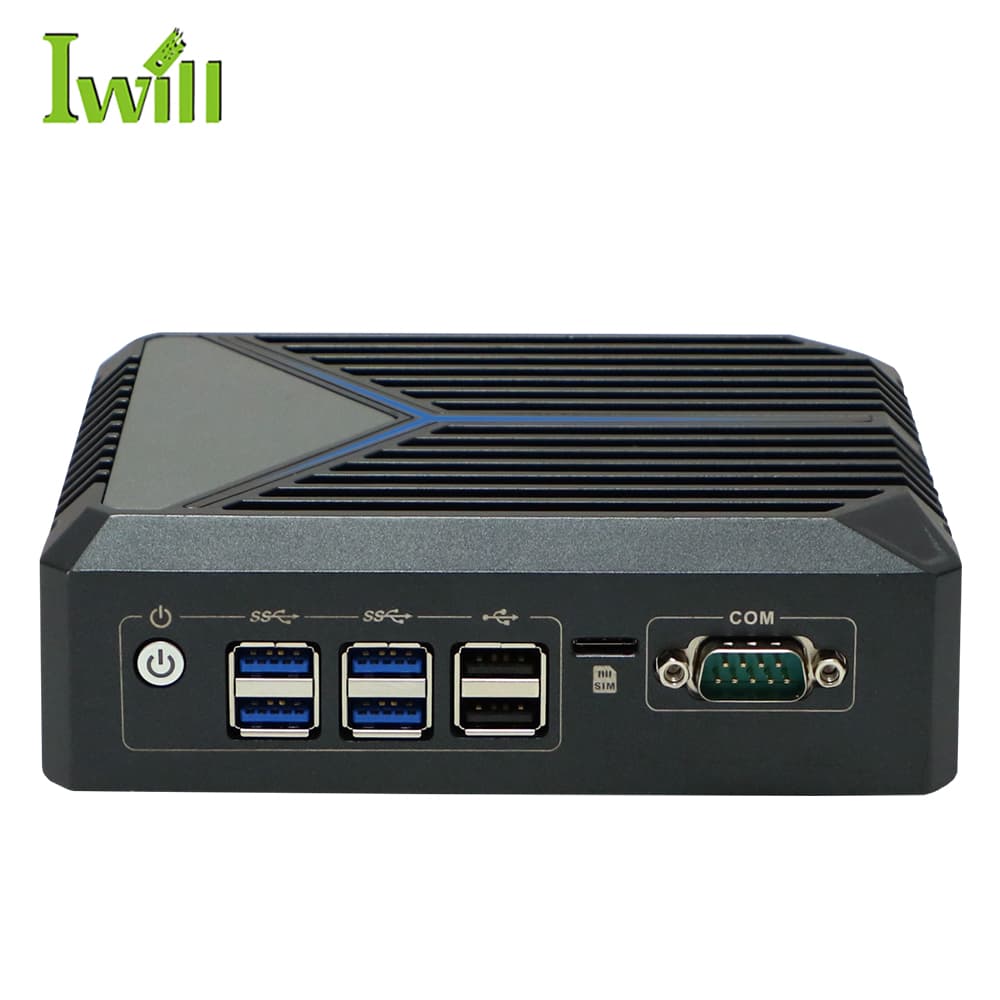

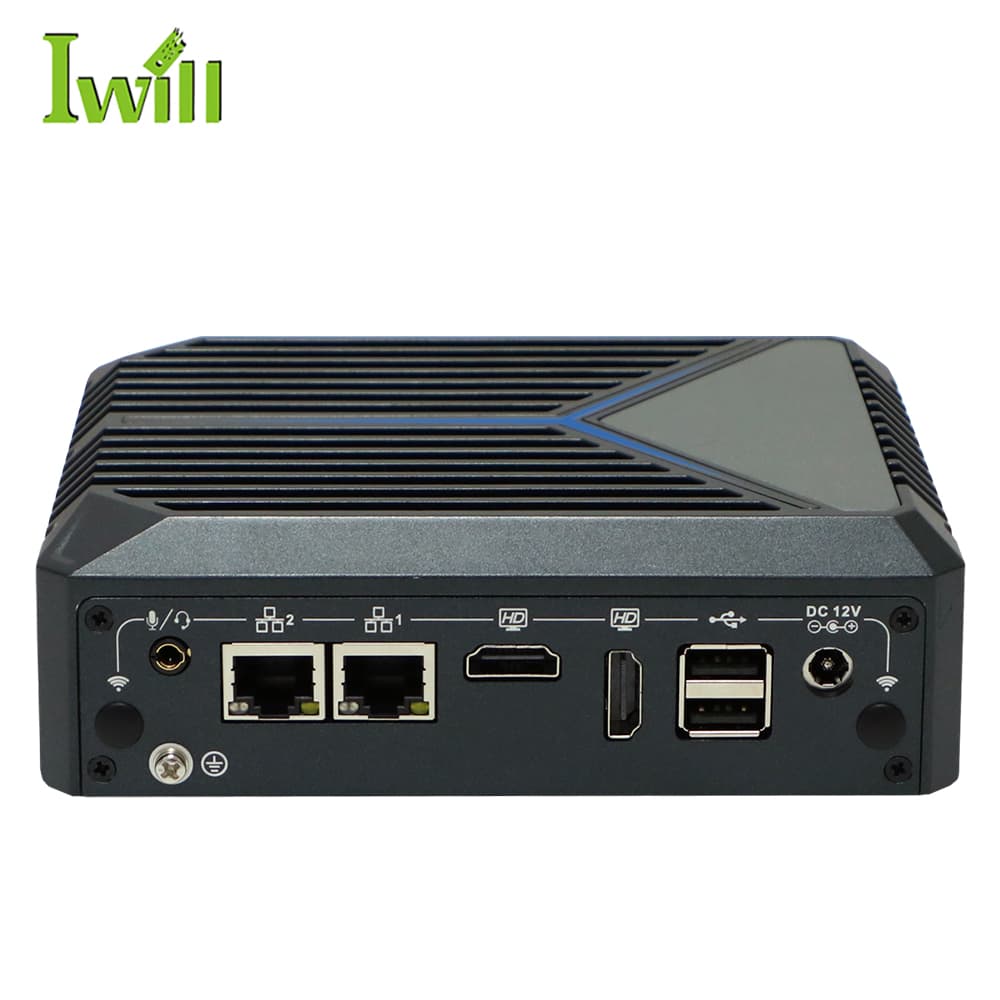

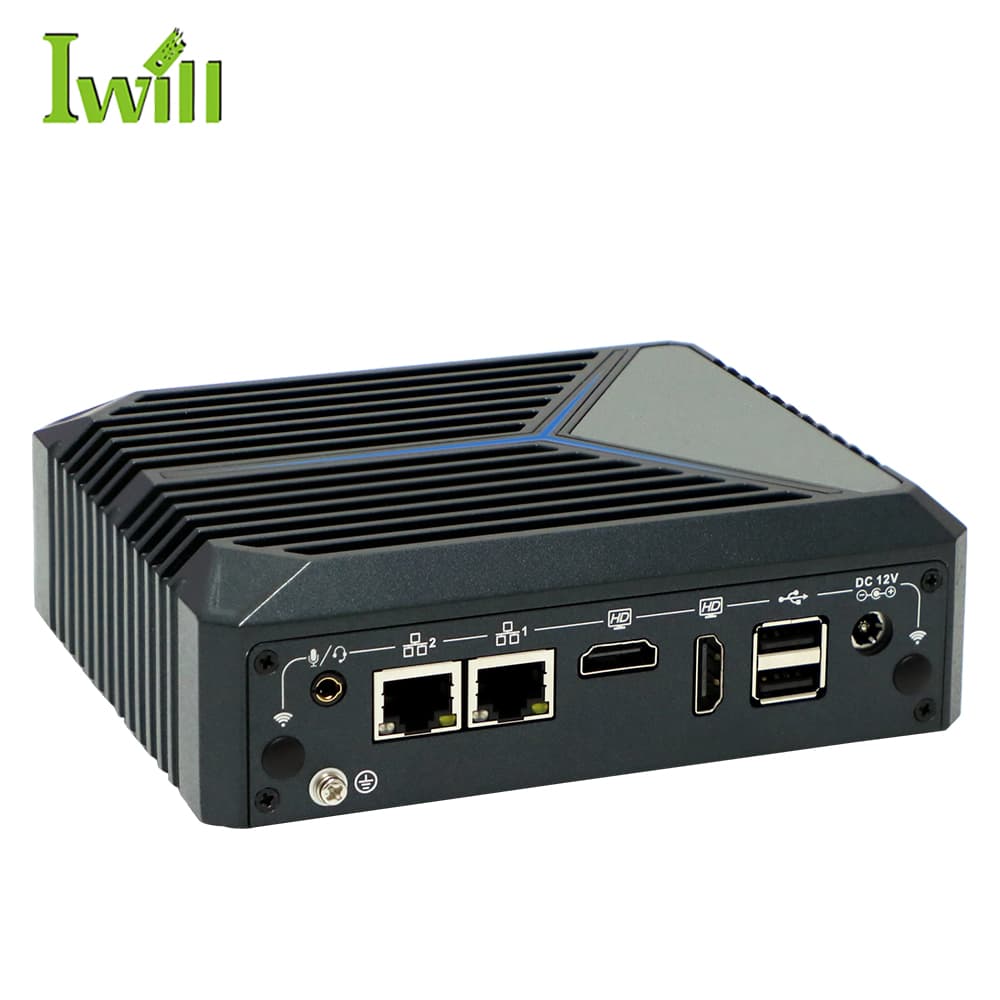

The Nano-N1221 is a compact mini PC from the IWILL Mini PCs range, built around Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz). Connectivity centers on 2x RJ45 LAN. Typical deployments include firewall, VPN Gateway, thin client. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating environments in source documentation
Windows 11 · Windows 10 · Linux · pfSense · OPNsense
Technical specifications
- Processor
- Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
- Memory
- 1x DDR4 3200MHz, up to 32GB
- Networking
- 2x RJ45 LAN
- Display outputs
- 2x HDMI (4096×2160@60Hz)
- Storage
- 1x M.2 2280 + 1x M.2 2280 SATA + 1x 2.5" HDD/SSD
- I/O
- 2x USB 2.0, 1x DB9 COM
- Dimensions
- 185 × 137 × 44mm
- Weight
- 0.84kg
- Platform features
- TPM 2.0
Typical applications
Where it deploys
- Firewall
- VPN Gateway
- Thin client
- Digital signage
Expansion & I/O
Room to configure
- 1x M.2 2280
- 1x M.2 2280 SATA
- 1x 2.5" HDD/SSD slot
