IWILL Nano-N1141 – Firewall Appliance (pfSense/OPNsense)
Nano-N1141: Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz) with 4x 2.5G LAN.
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
- DDR4 3200MHz memory up to 32GB
- 4x 2.5G LAN
- 1x HDMI, 1x DP
- TPM 2.0
- Fanless design
Platform overview
Built into your system, not just placed beside it.

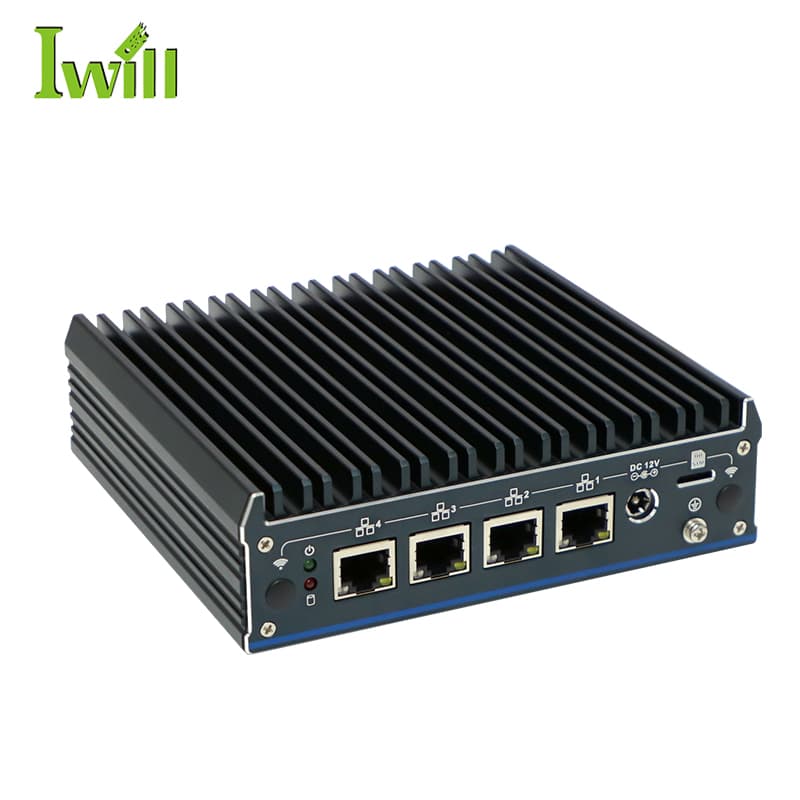

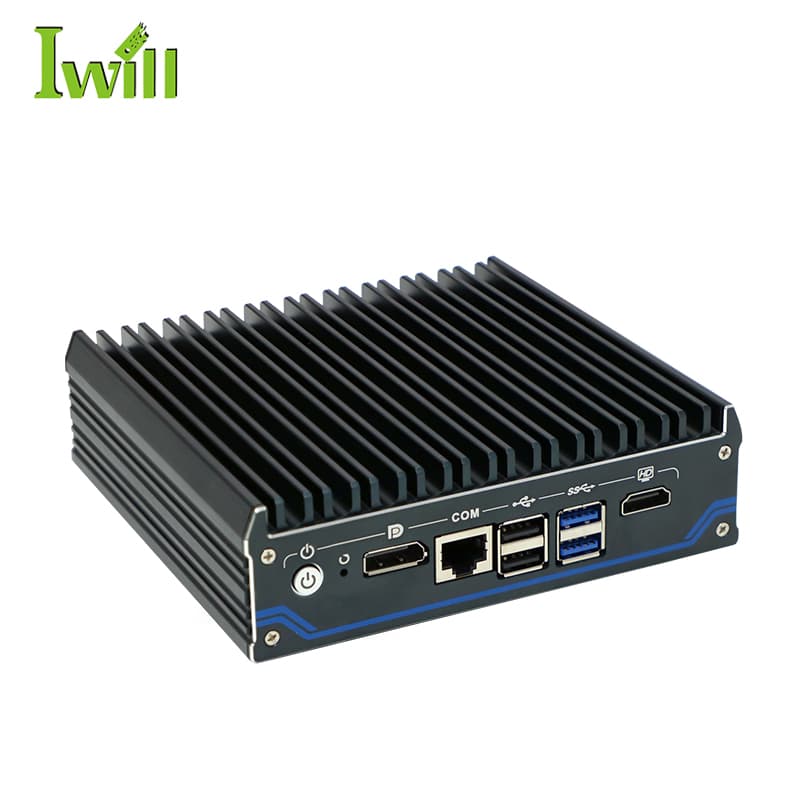

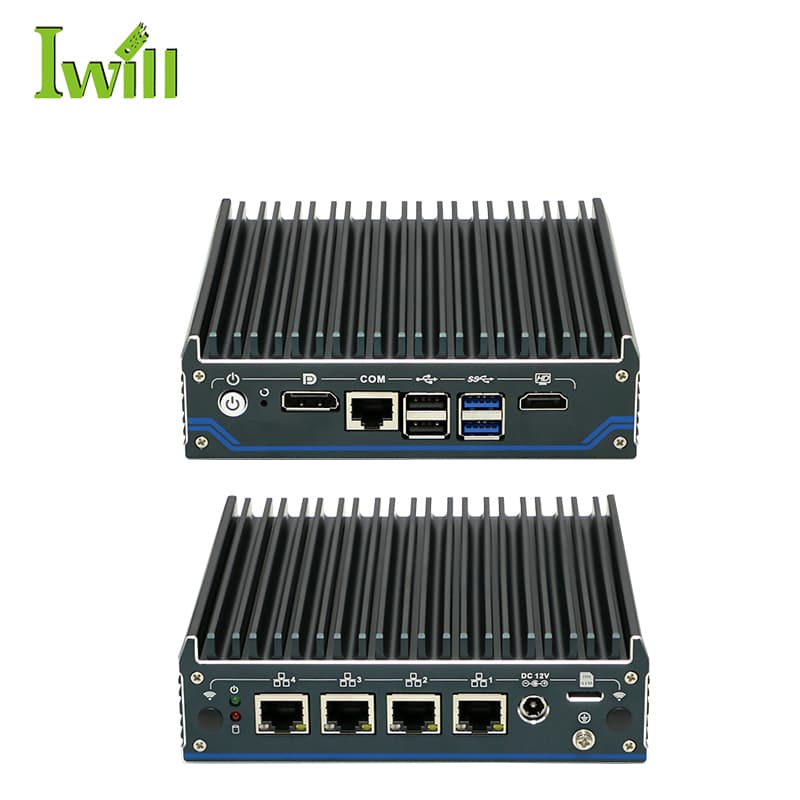

The Nano-N1141 is a compact mini PC from the IWILL Mini PCs range, built around Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz). Connectivity centers on 4x 2.5G LAN. Typical deployments include pfSense/OPNsense, software router, VPN Gateway. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
pfSense · OPNsense · Linux · Windows 10/11
Technical specifications
- Processor
- Intel Celeron J6412 (4 cores, 2.0GHz up to 2.6GHz)
- Memory
- 1x DDR4 3200MHz, up to 32GB
- Networking
- 4x 2.5G LAN
- Display outputs
- 1x HDMI, 1x DP (4096×2160@60Hz)
- Storage
- 1x M.2 2280 + 1x M.2 SATA + 1x M.2 WiFi/BT + 1x 2.5" HDD/SSD

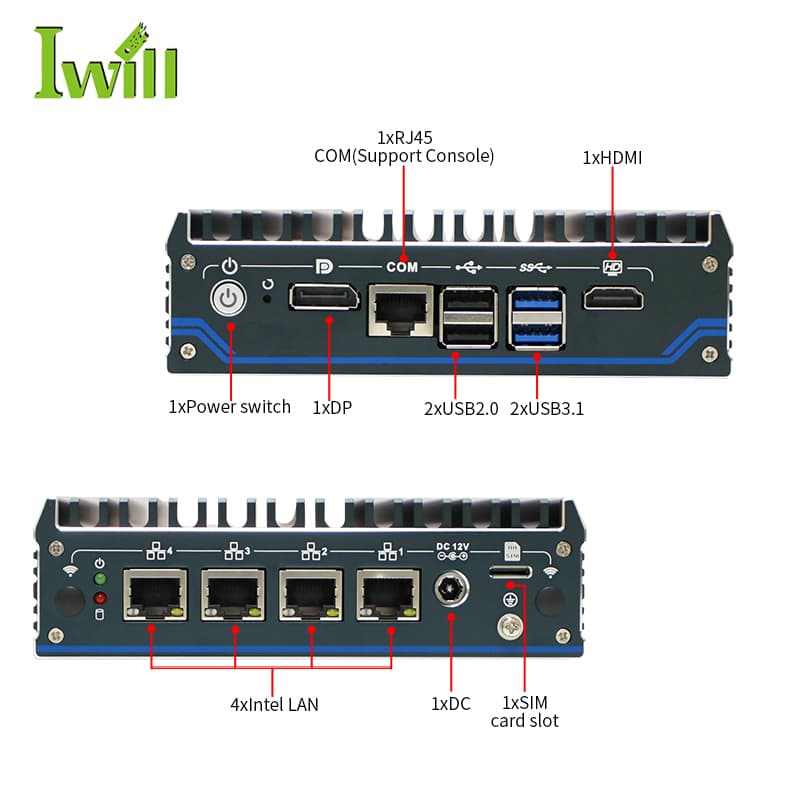

- I/O
- 2x USB 2.0, 2x USB 3.1

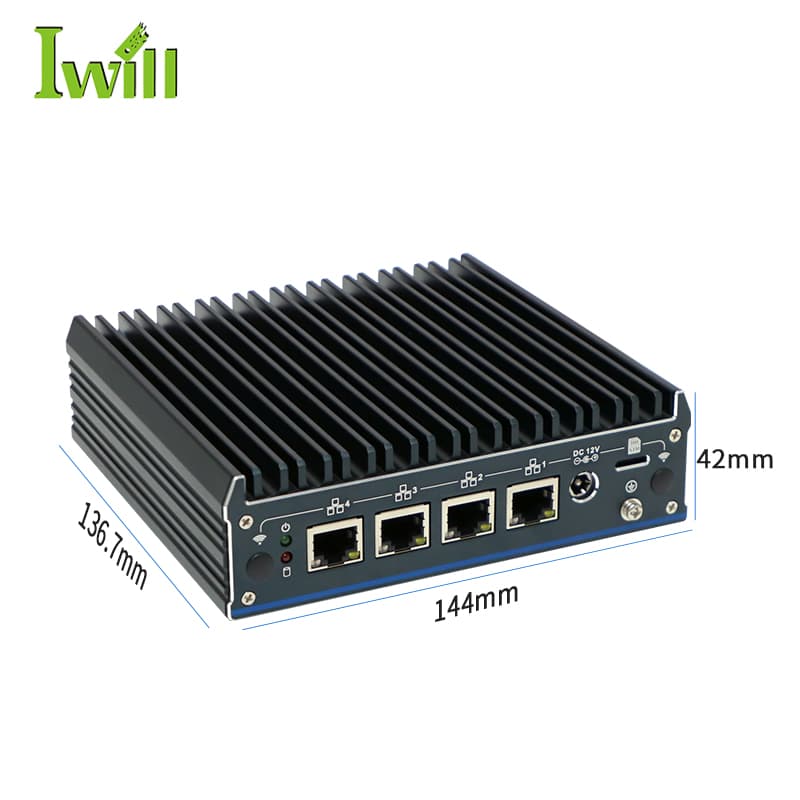

- Dimensions
- 144 × 136.7 × 42mm
- Weight
- 0.78kg
- Platform features
- TPM 2.0, firewall/VPN compatible
Operating environment
- Operating temperature
- -10°C to 60°C (14°F to 140°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5–95%
Typical applications
Where it deploys
- pfSense/OPNsense
- Software router
- VPN Gateway
- Firewall
Expansion & I/O
Room to configure
- 1x M.2 2280
- 1x M.2 SATA
- 1x M.2 WiFi/BT
- 1x 2.5" HDD/SSD slot
