Nano-N1021

Name: Nano-N1021
Brand: IWILL
SKU: N1021

Nano-N1021: Intel Celeron J4125 (4 cores/4 threads, 2.0GHz, Turbo 2.7GHz, Gemini Lake Refresh) with 2x Intel 1000Mbps LAN (RTL8111H).

Request configuration and pricing.

Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.

Request a Quote

Intel Celeron J4125 (4 cores/4 threads, up to 2.7GHz)
3 independent 4K display (HDMI + 2x DP)
DDR4 2400MHz memory up to 8GB
6x USB (4x USB 3.0)
Simultaneous operation of WiFi + 4G (3x M.2)
Fanless aluminum design

Platform overview

Built into your system, not just placed beside it.

The Nano-N1021 is a compact mini PC from the IWILL Mini PCs range, built around Intel Celeron J4125 (4 cores/4 threads, 2.0GHz, Turbo 2.7GHz, Gemini Lake Refresh). Connectivity centers on 2x Intel 1000Mbps LAN (RTL8111H). It runs from DC 12V power. Typical deployments include industrial automation, healthcare, logistics and transportation. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

Supported operating environments in source documentation

Windows 10 · Linux

Technical specifications

Processor: Intel Celeron J4125 (4 cores/4 threads, 2.0GHz, Turbo 2.7GHz, Gemini Lake Refresh)
Memory: 1x DDR4 2400MHz SODIMM, up to 8GB
Graphics: Intel HD Graphics 600

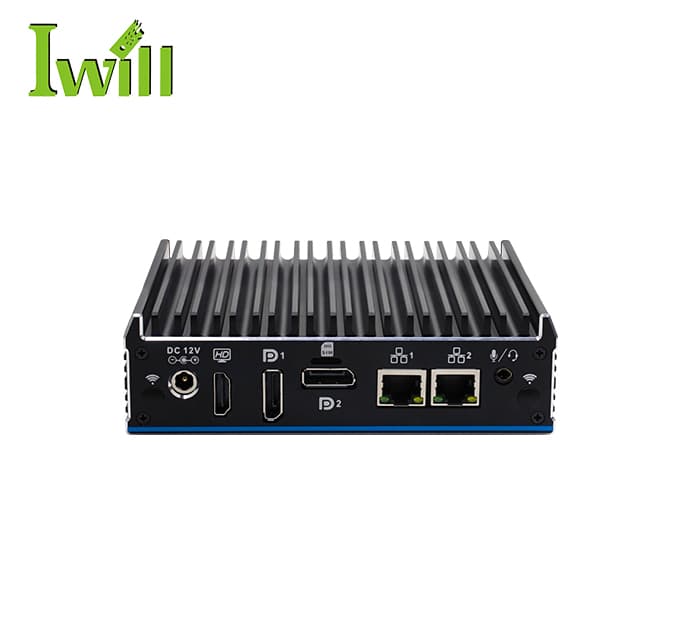

Display outputs: 1x HDMI + 2x DP, 3 independent display, up to 4096×2160@60Hz
Networking: 2x Intel 1000Mbps LAN (RTL8111H)
Storage: 1x M.2 2280 + 1x 2.5" HDD

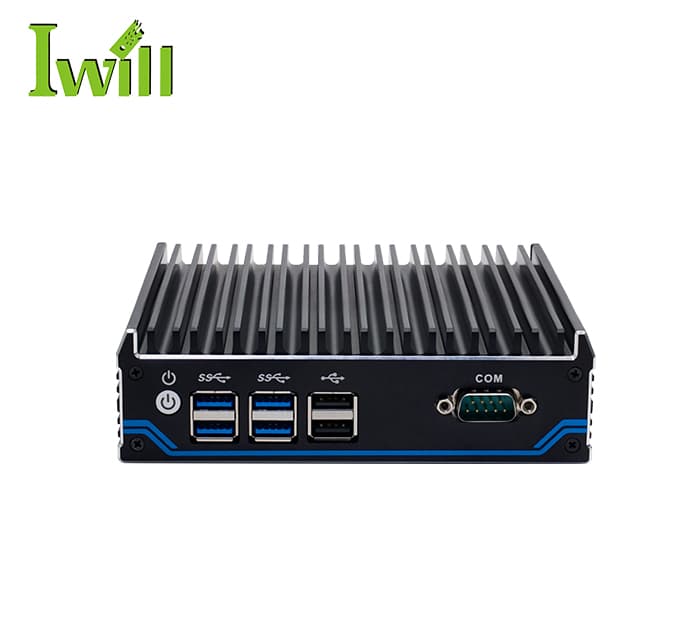

I/O: 4x USB 3.0, 2x USB 2.0, 1x COM, 1x Audio
Expansion: 1x M.2 M-key (SATA), 1x M.2 2242 B-key (4G + SIM), 1x M.2 2230 E-key (WiFi/BT)
Power input: DC 12V

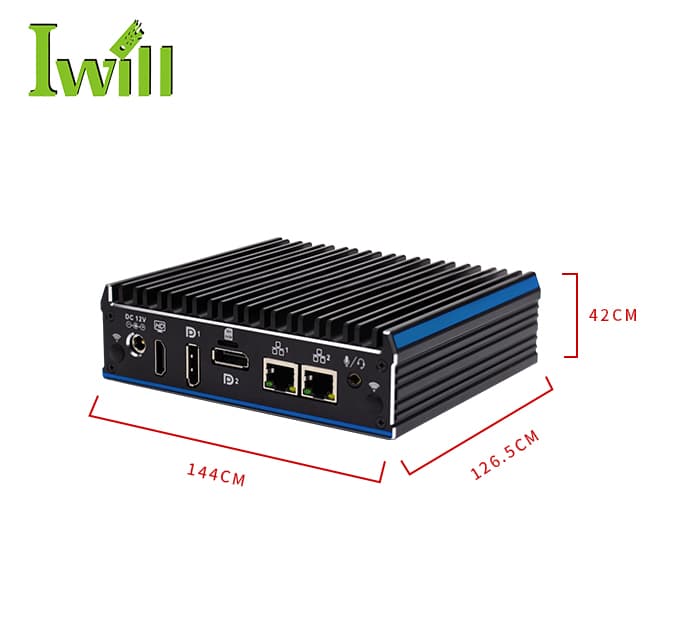

Dimensions: 144 × 126.5 × 42mm
Weight: 0.8kg
Certifications: CE, CCC, FCC Class A, RoHS
Platform features: TPM 1.2/2.0, Watchdog, Wake on LAN, PXE boot
