2U6L-ADL
2U6L-ADL: Intel i3-12100 / i5-12400 / i7-12700 (Alder Lake) with 6x 1000M LAN (2 bypass groups).
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- Intel i3-12100 / i5-12400 / i7-12700 (Alder Lake)
- 6x 1000M LAN (2 bypass groups)
- 2x DDR4 3200MHz memory up to 128GB
- 2U Rackmount chassis
- AC input with option for redundant power supply
- AES-NI encryption
Platform overview
Built into your system, not just placed beside it.
The 2U6L-ADL is a multi-LAN network appliance from the IWILL Firewall Appliances range, built around intel i3-12100 / i5-12400 / i7-12700 (Alder Lake). Connectivity centers on 6x 1000M LAN (2 bypass groups). It runs from AC input with option for redundant power supply. Typical deployments include Datacenter Firewall, NAS/Storage, Enterprise Security. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating environments in source documentation
Windows Server · Linux · FreeNAS · TrueNAS · pfSense
Technical specifications
- Processor
- Intel i3-12100 / i5-12400 / i7-12700 (Alder Lake)
- Memory
- 2x DDR4 3200MHz, up to 128GB
- Networking
- 6x 1000M LAN (2 bypass groups)
- Display outputs
- 1x HDMI
- Storage
- 1x M.2 M-key SATA + 1x M.2 M-key + 1x M.2 E-key + 1x M.2 B-key
- Form factor
- 2U Rackmount

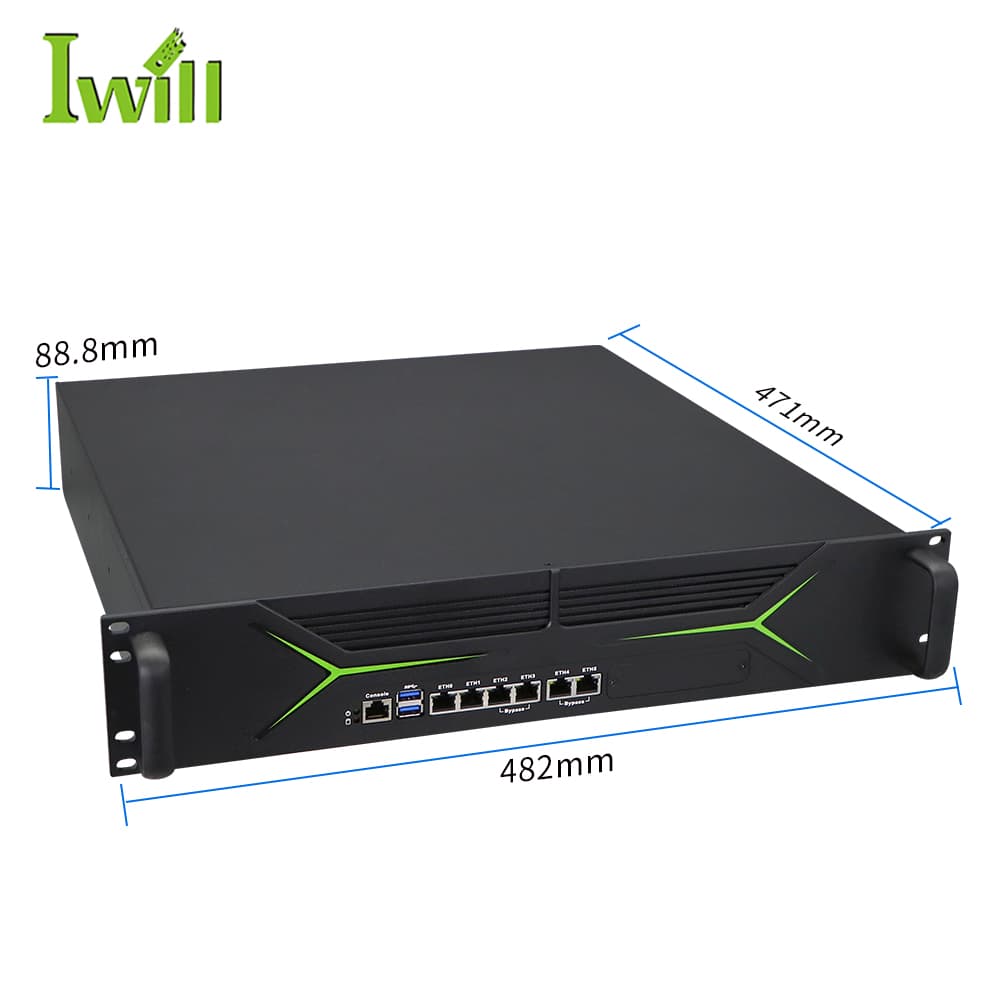

- Dimensions
- 482 × 471 × 88.8mm
- Weight
- 7.19kg
- Power input
- AC input with option for redundant power supply
Typical applications
Where it deploys
- Datacenter Firewall
- NAS/Storage
- Enterprise Security
Expansion & I/O
Room to configure
- 1x M.2 M-key SATA
- 1x M.2 M-key
- 1x M.2 E-key
- 1x M.2 B-key
Documentation
Datasheets and manuals
