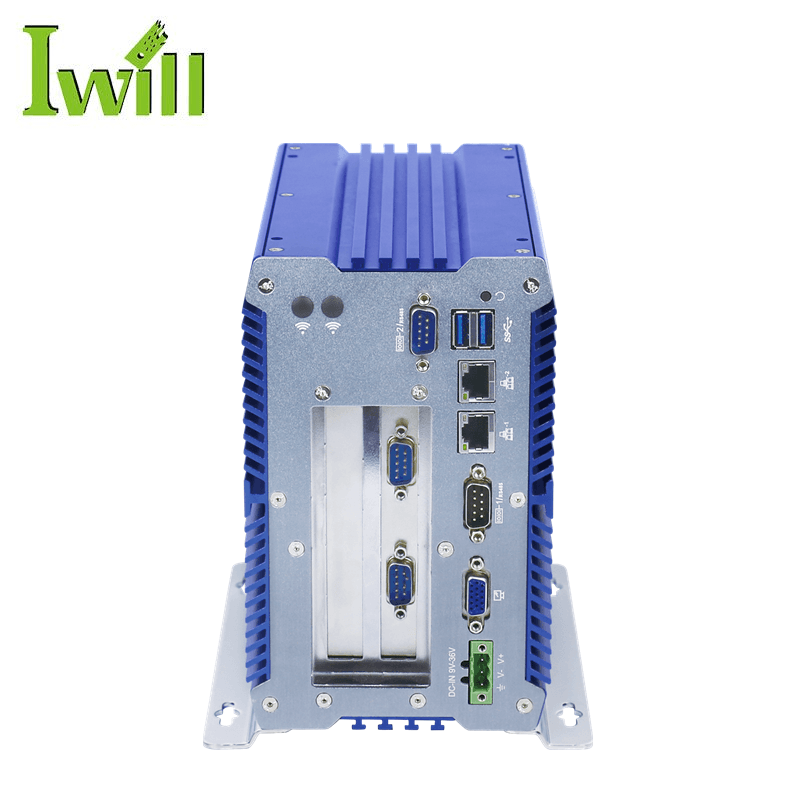

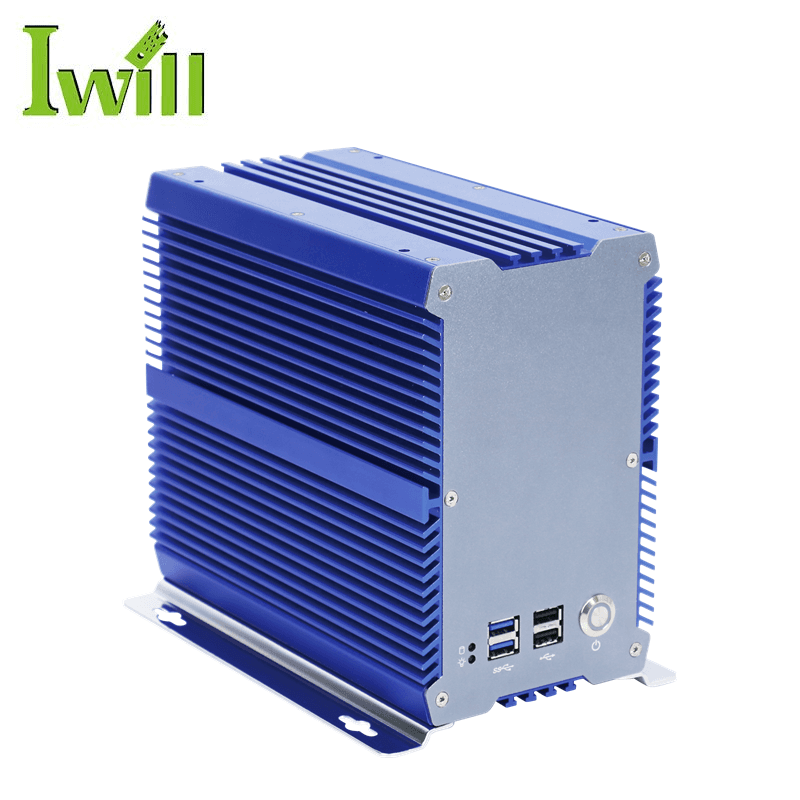

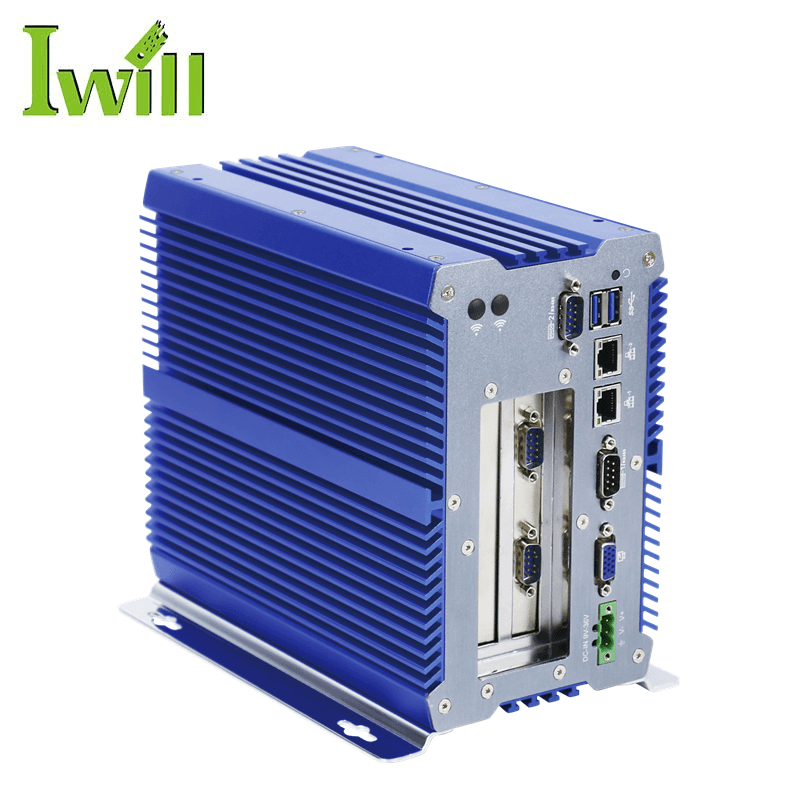

IBOX-701 Plus product view 1 of 5

Industrial PCs

IBOX-701 Plus

IBOX-701 Plus: Intel Celeron 3965U / i5-7360U (7th Gen) with 2x 1000M LAN.

Request configuration and pricing.

Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.

Request a Quote
  • Intel Celeron 3965U / i5-7360U (7th Gen)
  • 2x 1000M LAN
  • 2x USB 3.0, 2x USB 2.0
  • 2x COM ports
  • Fanless design
  • 1x VGA

Platform overview

Built into your system, not just placed beside it.

The IBOX-701 Plus is a fanless industrial computer from the IWILL Industrial PCs range, built around Intel Celeron 3965U / i5-7360U (7th Gen). Connectivity centers on 2x 1000M LAN. Typical deployments include Machine Vision, GPU Computing, industrial automation. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

Supported operating environments in source documentation

Windows 10 · Windows 11 · Linux

Technical specifications

Processor
Intel Celeron 3965U / i5-7360U (7th Gen)
Memory
1x DDR4 1866/2133MHz, up to 16GB
Networking
2x 1000M LAN
Serial ports
2x COM
Storage
1x 2.5" HDD + 1x mSATA
I/O
2x USB 3.0, 2x USB 2.0, 1x VGA
Dimensions
215 × 185 × 115mm
Weight
3kg

Typical applications

Where it deploys

  • Machine Vision
  • GPU Computing
  • Industrial automation

Expansion & I/O

Room to configure

  • 1x 2.5" HDD slot
  • 1x mSATA

Documentation

Datasheets and manuals

IBOX-701 Plus Datasheet

datasheet

IBOX-701 Plus Technical Manual

manual
