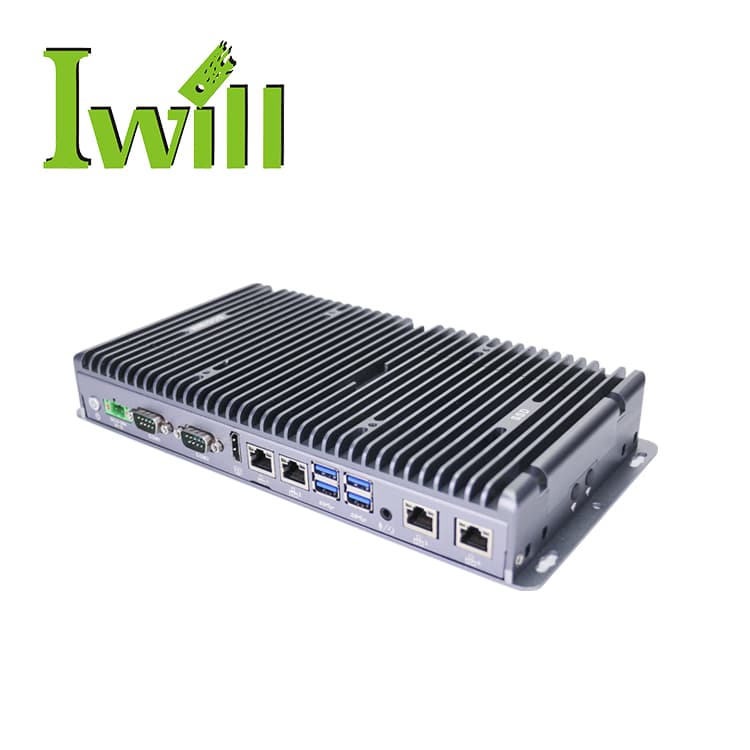

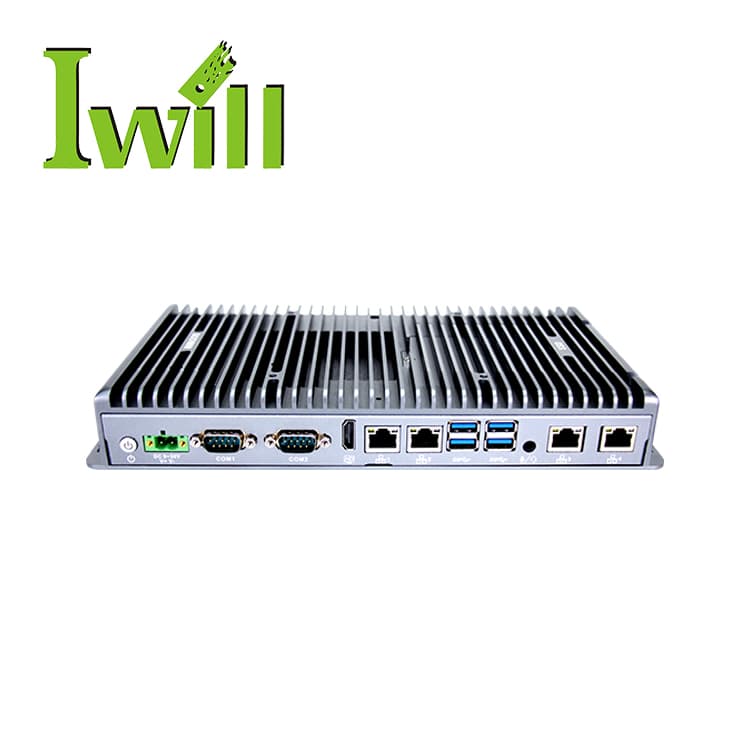

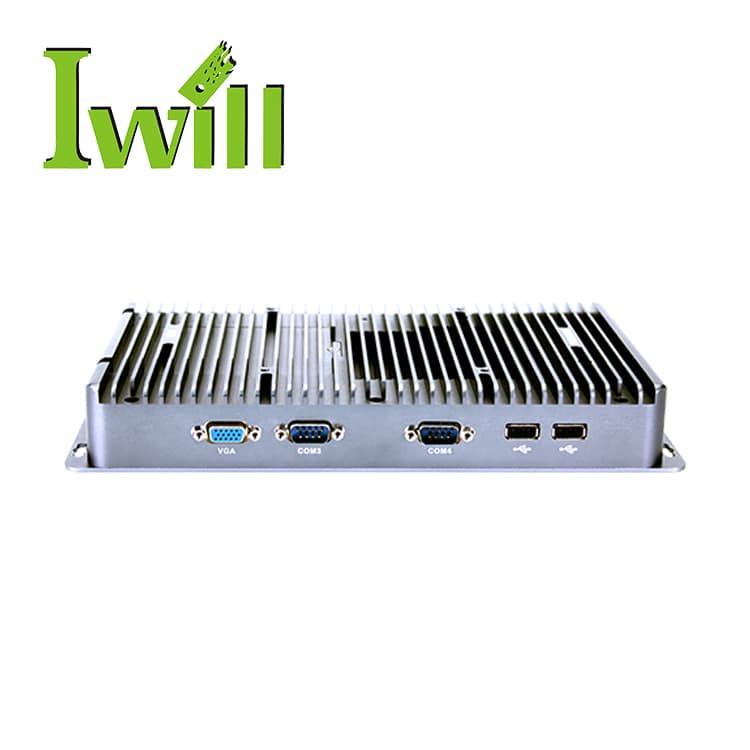

IBOX-3046

IBOX-3046: Intel Celeron 4205U / i5-8265U / i7-8565U (8th Gen) with 4x 1000M LAN.

Request configuration and pricing.

Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.

Request a Quote
  • Intel Celeron 4205U / i5-8265U / i7-8565U (8th Gen)
  • 4x 1000M LAN
  • 2x COM ports
  • Fanless design
  • RAID 0/1 support
  • DC 9-36V with reverse polarity protection

Platform overview

Built into your system, not just placed beside it.

The IBOX-3046 is a fanless industrial computer from the IWILL Industrial PCs range, built around Intel Celeron 4205U / i5-8265U / i7-8565U (8th Gen). Connectivity centers on 4x 1000M LAN. It runs from DC 9-36V with reverse polarity protection power. Typical deployments include automation, SCADA, IoT Gateway. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

Supported operating environments in source documentation

Windows 10 · Windows 11 · Linux

Technical specifications

Processor
Intel Celeron 4205U / i5-8265U / i7-8565U (8th Gen)
Memory
1x DDR4 2133/2400MHz, up to 32GB
Networking
4x 1000M LAN
Serial ports
2x COM
Storage
1x M.2 2280 + 1x 2.5" HDD, RAID 0/1

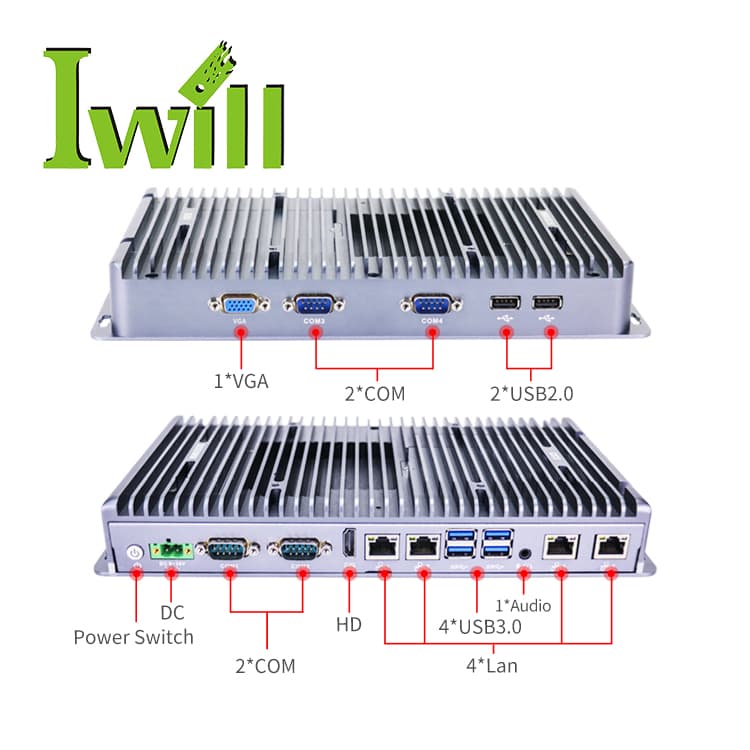

I/O
2x USB 2.0, 4x USB 3.0, 1x VGA, 1x HDMI
Dimensions
280 × 143 × 40mm
Weight
1.45kg
Power input
DC 9-36V with reverse polarity protection

Typical applications

Where it deploys

  • Automation
  • SCADA
  • IoT Gateway
  • Machine Vision

Expansion & I/O

Room to configure

  • 1x M.2 2280
  • 1x 2.5" HDD slot

Documentation

Datasheets and manuals

IBOX-3046 Datasheet

datasheet

IBOX-3046 Technical Manual

manual
