Industrial PCs

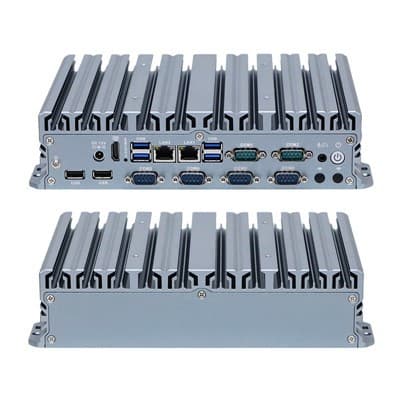

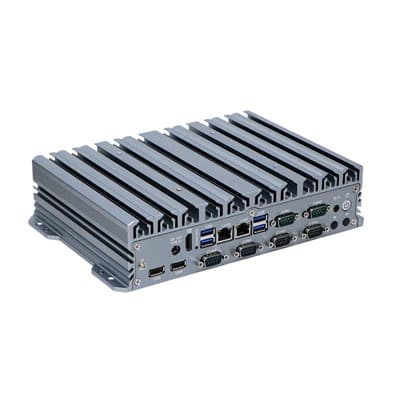

IBOX-3326
IBOX-3326: Intel Celeron J1900 / Core series with 2x Realtek Gigabit LAN.
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- Intel Celeron / Core series processors
- 6x COM ports (RS232/RS485)
- 2x Gigabit LAN
- Aluminum enclosure – fanless
- DDR3/DDR4 up to 32GB
- Windows XP to Windows 11
Platform overview
Built into your system, not just placed beside it.
The IBOX-3326 is a fanless industrial computer from the IWILL Industrial PCs range, built around Intel Celeron J1900 / Core series. Connectivity centers on 2x Realtek Gigabit LAN. It runs from DC 12V (option 9-36V DC) power. Mounting: wall-mount or desktop. Typical deployments include factory automation, PLC control, SCADA. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating environments in source documentation
Windows XP · Windows 7 · Windows 10 · Windows 11 · Linux
Technical specifications
- Processor
- Intel Celeron J1900 / Core series
- Memory
- DDR3/DDR4 SODIMM, up to 32GB
- Networking
- 2x Realtek Gigabit LAN
- Serial ports
- 6x COM (COM1/COM2: RS232/RS485, COM3-6: RS232)
- Display outputs
- 1x DisplayPort HD
- Storage
- 1x mSATA + 1x 2.5" SATA HDD/SSD
- I/O
- 4x USB 3.0, 2x USB 2.0 (J1900: 1x USB 3.0, 5x USB 2.0)
- Dimensions
- 260 × 173 × 61mm
- Weight
- 2.5kg
- Power input
- DC 12V (option 9-36V DC)
- Mounting
- Wall-mount or desktop
- Platform features
- CE, CCC, FCC Class A, RoHS
Typical applications
Where it deploys
- Factory automation
- PLC control
- SCADA
- Legacy systems
Expansion & I/O
Room to configure
- 1x mSATA
- 1x 2.5" SATA HDD/SSD
