Industrial PCs

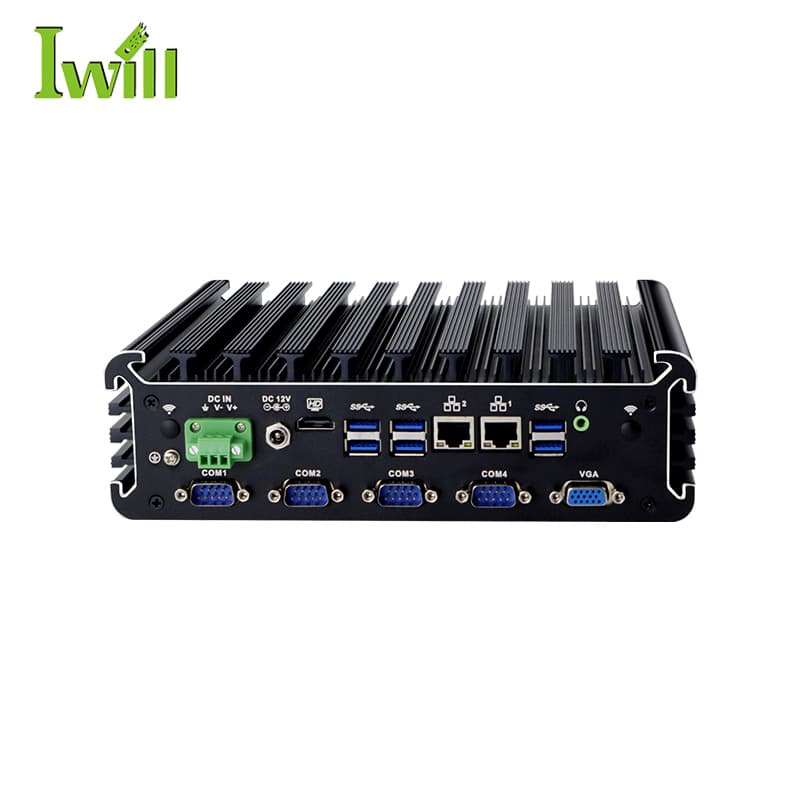

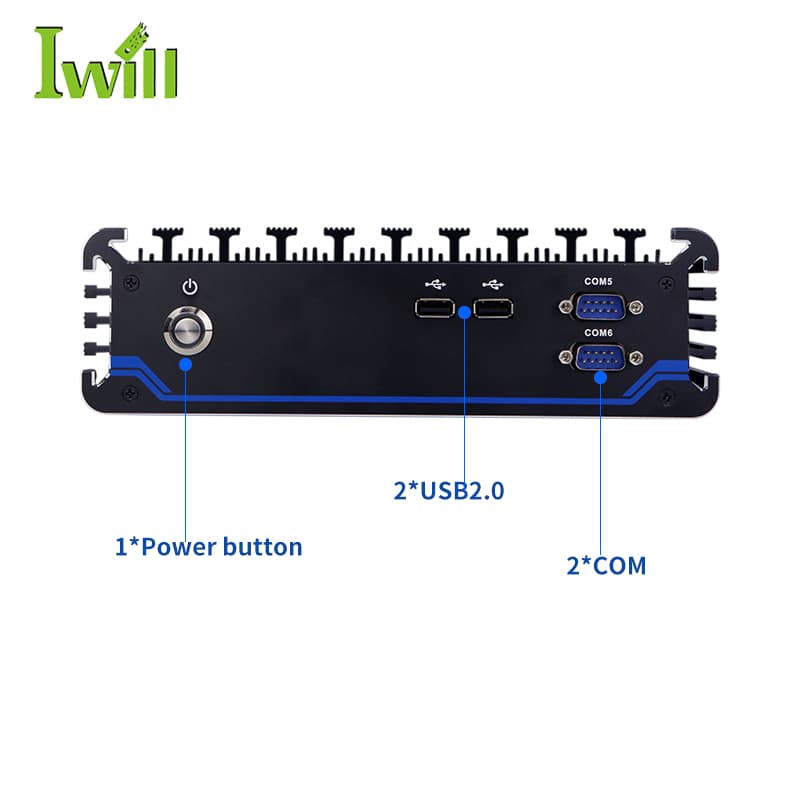

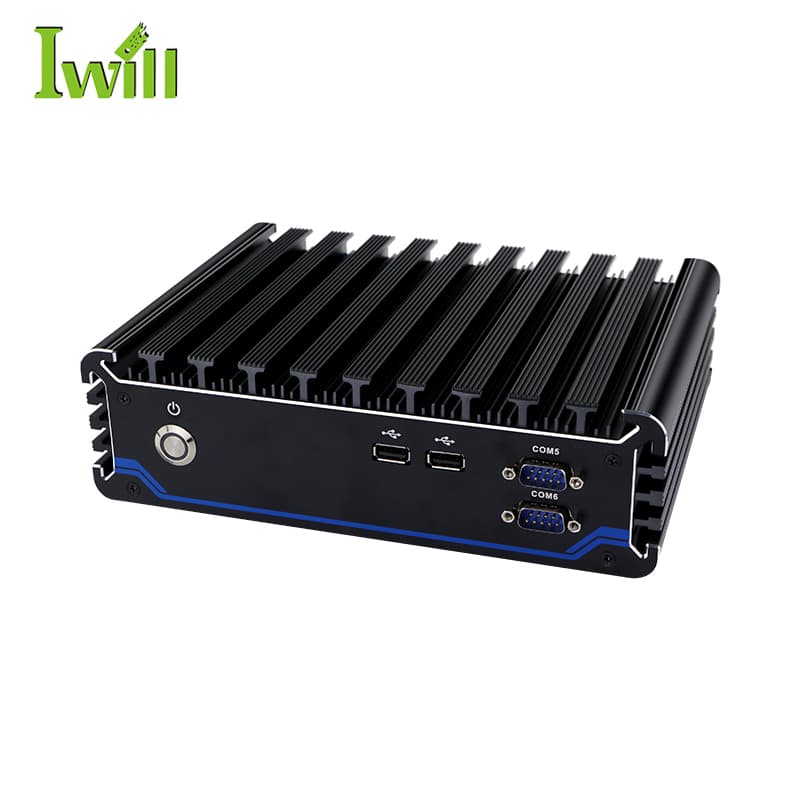

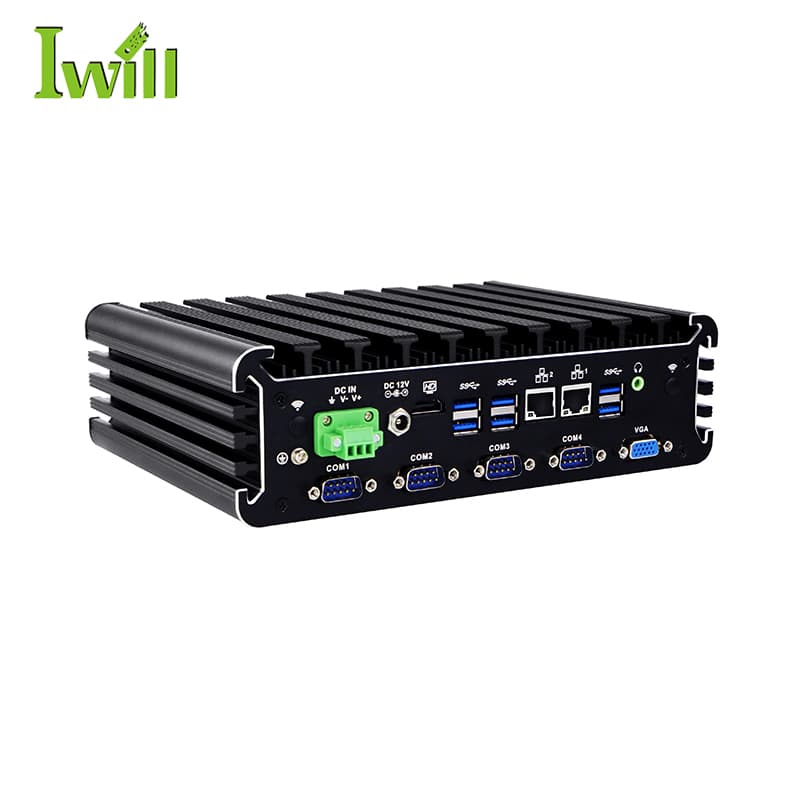

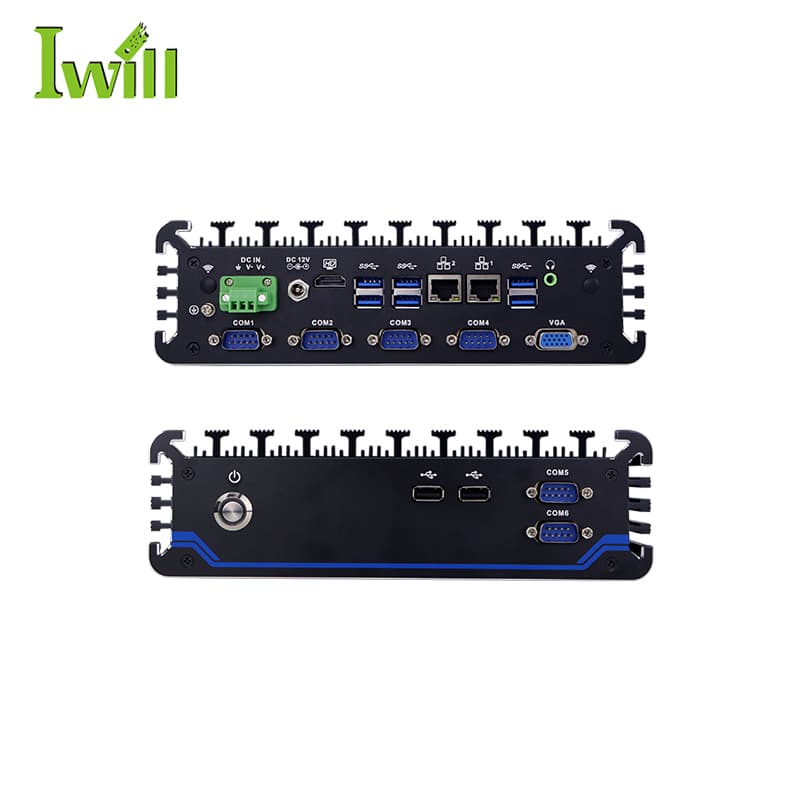

IBOX-3026

IBOX-3026: Intel Celeron 6305E / i5-1135G7 / i7-1165G7 (11th Gen) with 2x 1000M LAN (Intel chipsets).

Request configuration and pricing.

Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.

Request a Quote
  • Intel Celeron 6305E / i5-1135G7 / i7-1165G7 (11th Gen)
  • 2x 1000M LAN
  • 4x COM ports
  • Fanless design
  • 6x USB 3.0, 2x USB 2.0
  • Wide temperature range

Platform overview

Built into your system, not just placed beside it.

The IBOX-3026 is a fanless industrial computer from the IWILL Industrial PCs range, built around Intel Celeron 6305E / i5-1135G7 / i7-1165G7 (11th Gen). Connectivity centers on 2x 1000M LAN (Intel chipsets). Typical deployments include PLC Gateway, Serial Server, industrial control. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

Supported operating environments in source documentation

Windows 10 · Windows 11 · Linux

Technical specifications

Processor
Intel Celeron 6305E / i5-1135G7 / i7-1165G7 (11th Gen)
Memory
1x DDR4 2666/3200MHz, up to 32GB
Networking
2x 1000M LAN (Intel chipsets)
Serial ports
4x COM
Storage
1x M.2 2280 + 1x 2.5" HDD
I/O
2x USB 2.0, 6x USB 3.0, 1x HDMI, 1x VGA
Dimensions
230 × 166 × 68mm
Weight
2.2kg

Typical applications

Where it deploys

  • PLC Gateway
  • Serial Server
  • Industrial control

Expansion & I/O

Room to configure

  • 1x M.2 2280
  • 1x 2.5" HDD slot

Documentation

Datasheets and manuals

IBOX-3026 Datasheet

datasheet

IBOX-3026 Technical Manual

manual
