Industrial PCs

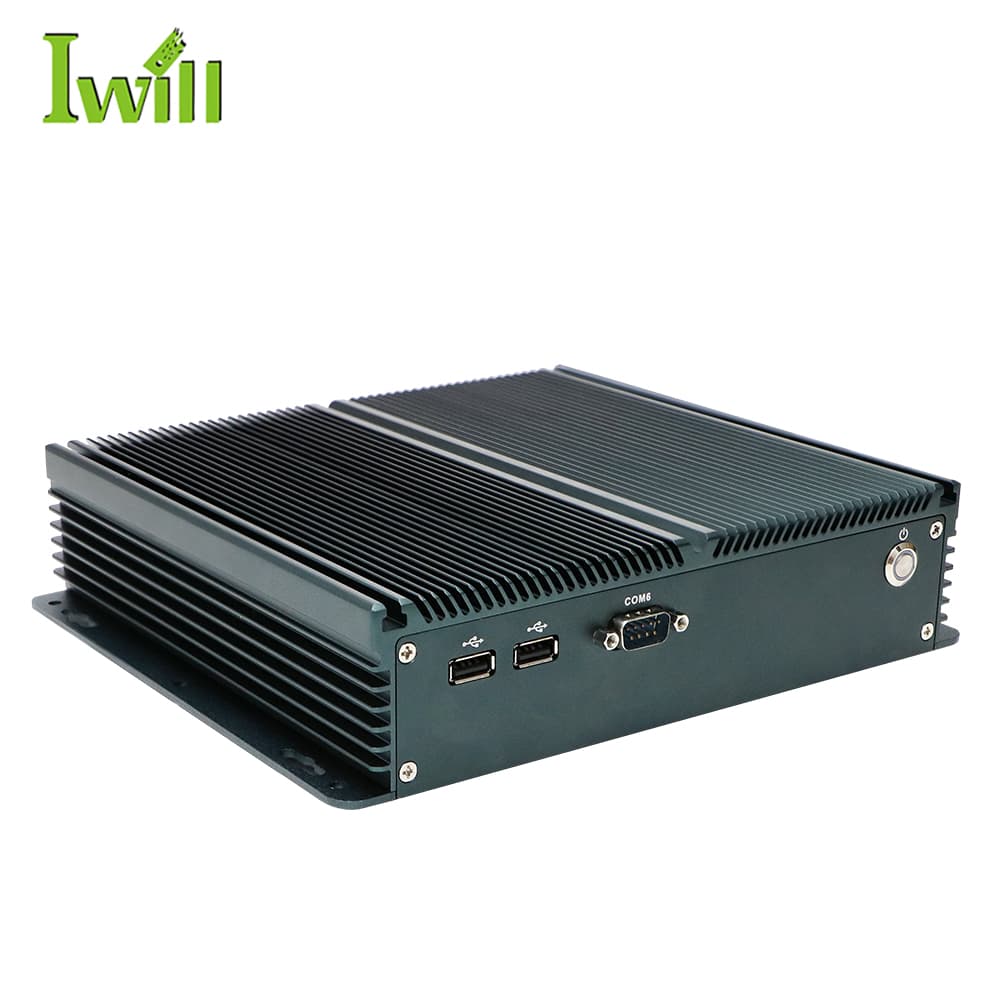

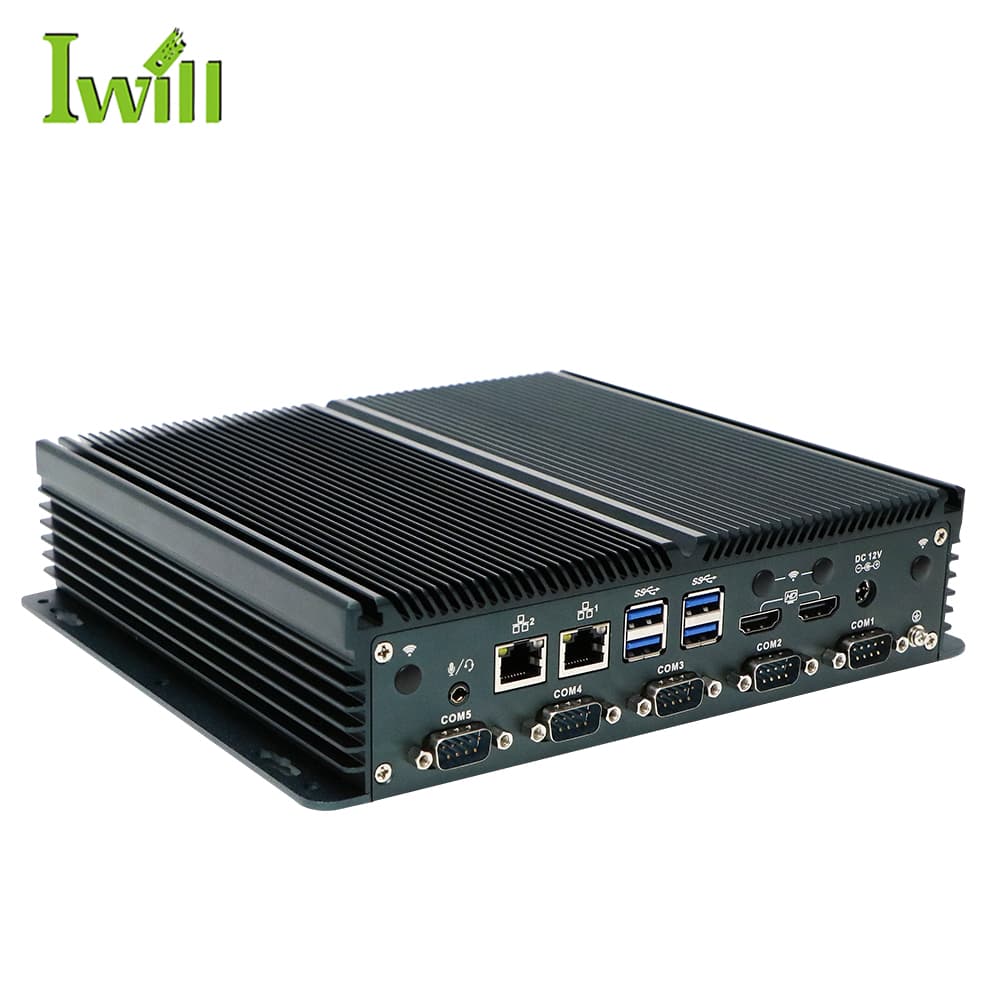

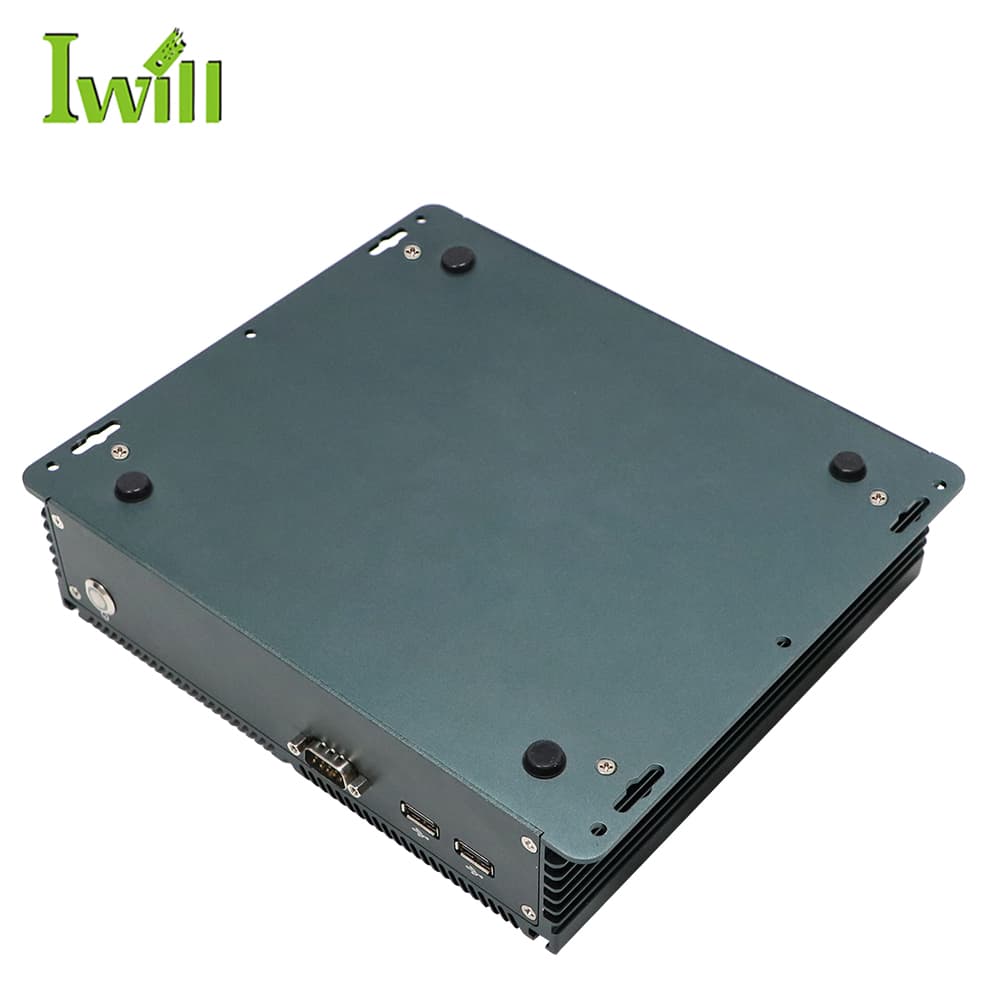

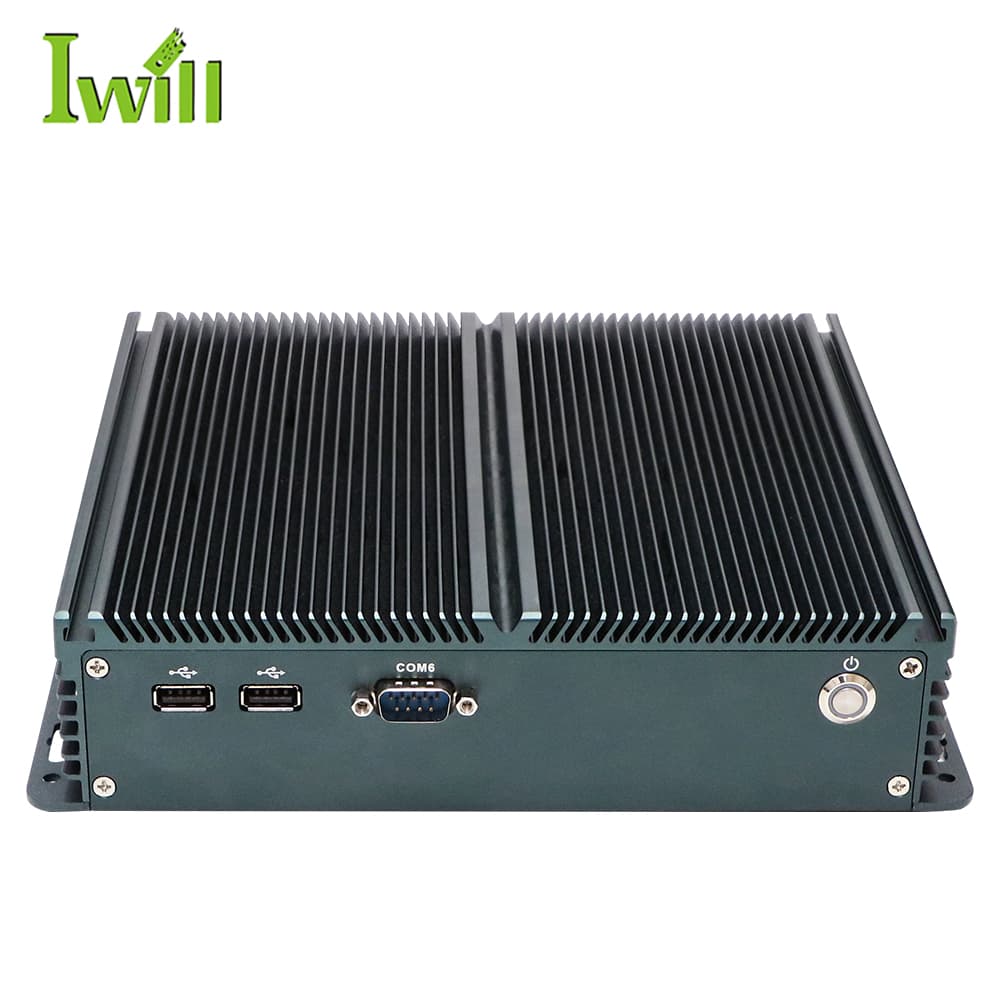

IBOX-1326

IBOX-1326: Intel Alder Lake N100 (4 cores, up to 3.4GHz) with 2x 1000M LAN.

Request configuration and pricing.

Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.

Request a Quote
  • Intel Alder Lake N100 (4 cores, up to 3.4GHz)
  • 2x 1000M LAN
  • 5x COM ports
  • 2x HDMI
  • Fanless design
  • Compact enclosure

Platform overview

Built into your system, not just placed beside it.

The IBOX-1326 is a fanless industrial computer from the IWILL Industrial PCs range, built around Intel Alder Lake N100 (4 cores, up to 3.4GHz). Connectivity centers on 2x 1000M LAN. Typical deployments include Serial Gateway, lightweight industrial applications, IoT. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

Supported operating environments in source documentation

Windows 11 · Windows 10 · Linux

Technical specifications

Processor
Intel Alder Lake N100 (4 cores, up to 3.4GHz)
Memory
1x DDR4 3200MHz, up to 16GB
Networking
2x 1000M LAN
Serial ports
5x COM
Storage
1x M.2 2280 NVMe/SATA + 1x 2.5" HDD
I/O
2x USB 2.0, 3x USB 3.0
Display outputs
2x HDMI

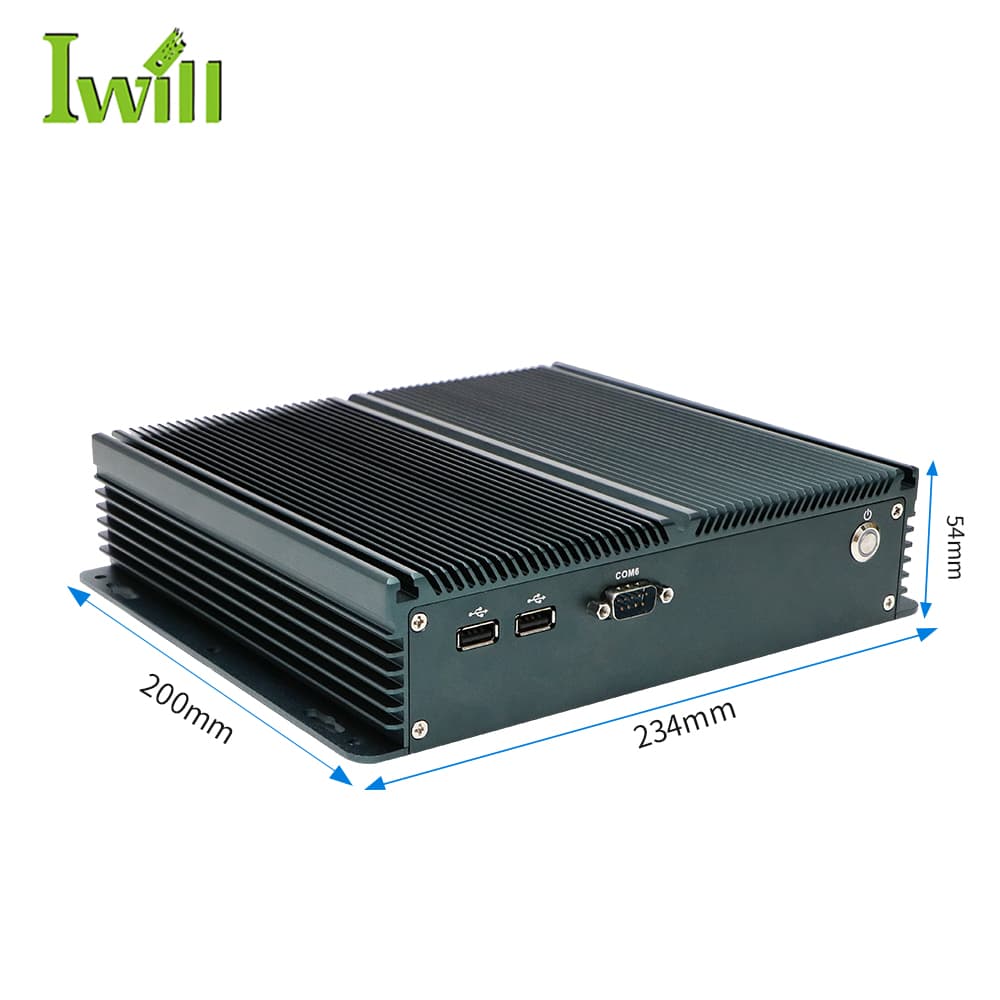

Dimensions
234 × 200 × 54mm
Weight
1.98kg

Typical applications

Where it deploys

  • Serial Gateway
  • Lightweight industrial applications
  • IoT

Expansion & I/O

Room to configure

  • 1x M.2 2280 NVMe/SATA
  • 1x 2.5" HDD slot

Documentation

Datasheets and manuals

IBOX-1326 Datasheet

datasheet

IBOX-1326 Technical Manual

manual
