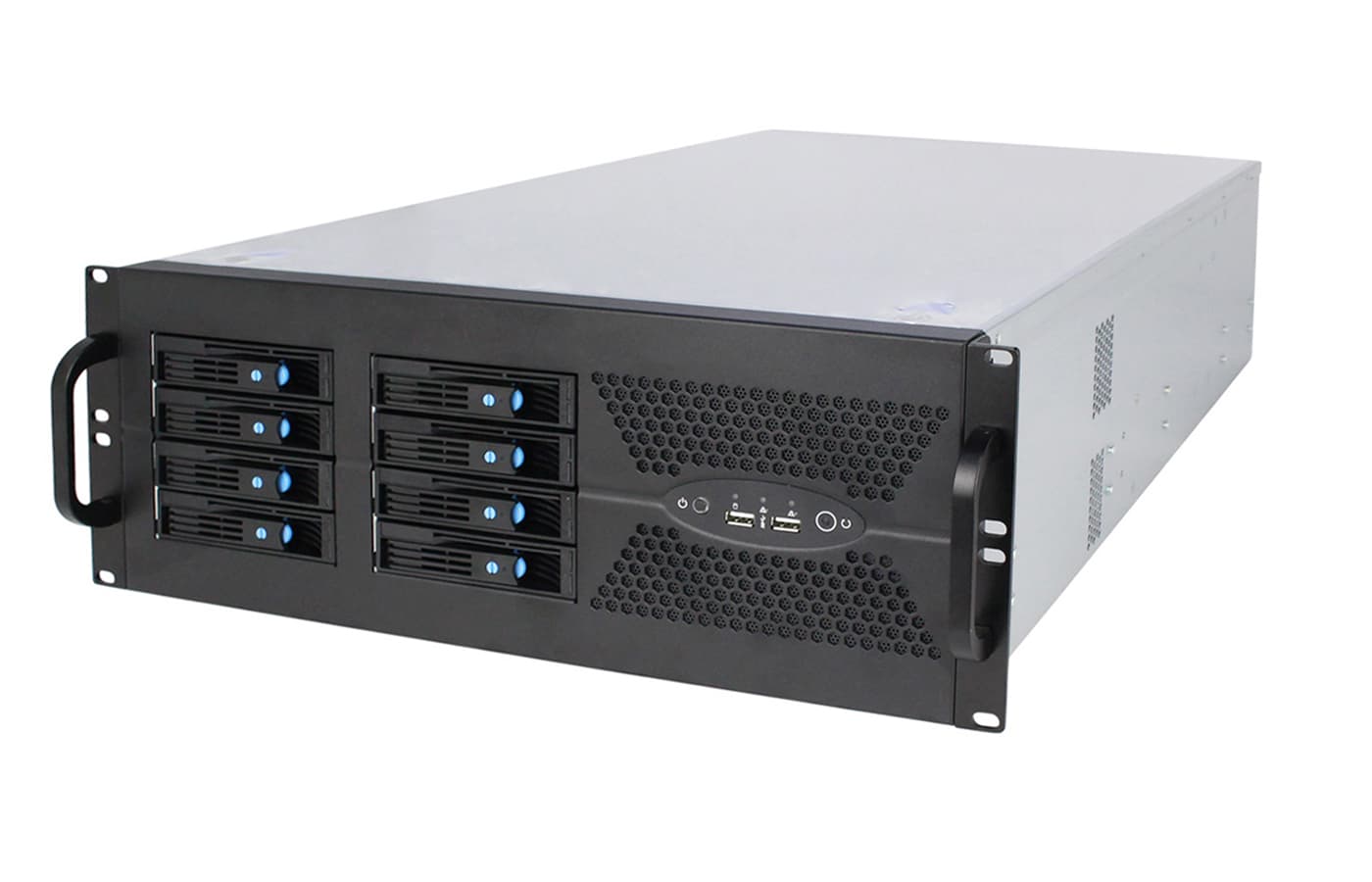

IWILL TP4U630-08

Name: IWILL TP4U630-08
Brand: IWILL
SKU: TP4U630-08

IWILL TP4U630-08 storage chassis platform.

Request configuration and pricing.

Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.

Request a Quote

8×3.5" hot-swap bays + two 3.5" and two 2.5" drives
6Gb/s SATA backplane
Standard or redundant power supply
8 half-height PCI/PCIE slots for expansion
3×120mm fans

Platform overview

Built into your system, not just placed beside it.

The IWILL TP4U630-08 is a rackmount storage chassis from the IWILL Storage Chassis range. It runs from standard or redundant power supply. Typical deployments include cloud computing, security monitoring, big data. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

Technical specifications

Dimensions: 437.5mm×630mm×177mm, standard 19" rackmount chassis
Material: 1.0mm SGCC galvanized steel
Color: black painted front panel, color of steel for enclosure
Drive bays: 8×3.5" hot-swap bays, support for two 3.5" drives and two 2.5" drives
Backplane: 6Gb/s SATA backplane
Cooling: Standard with 3×120mm fans
Power input: Standard or redundant power supply
Motherboard support: Supports MAX 12"×13" motherboard
Expansion slots: 8 half-height PCI/PCIE slots for expansion
Connectors: Two front USB2.0 ports
Management: Power LED×1, Reset×1, Power SW×1, HDD LED×1, NIC LED×2
