Storage Chassis
IWILL NAS-04
IWILL NAS-04 storage chassis platform.
Storage Chassis

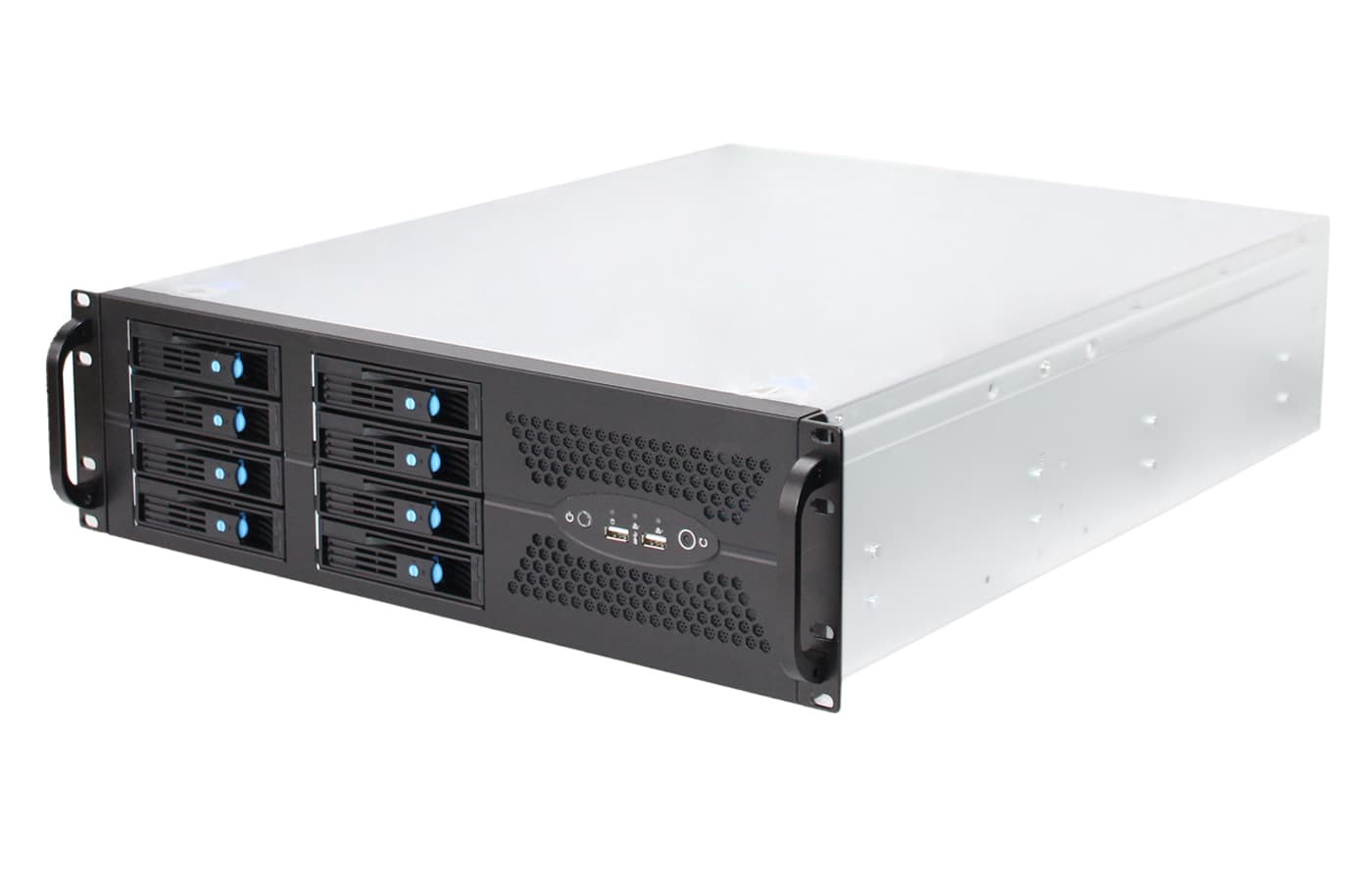

IWILL TP3U570-08 – Storage Chassis
IWILL TP3U570-08 storage chassis platform.
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- 8 hot-swap 3.5" bays (compatible with 2.5" HDD/SSD)
- 6Gb/s SATA backplane
- 2U standard power supply or CRPS PSU
- 7 half-height PCI/PCIE slots for expansion
- 3×120mm fans
Platform overview
Built into your system, not just placed beside it.
The IWILL TP3U570-08 is a rackmount storage chassis from the IWILL Storage Chassis range. It runs from 2U standard power supply or CRPS PSU. Typical deployments include cloud computing, security monitoring, IoT. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Technical specifications
- Dimensions
- 450mm×570mm×133mm
- Material
- 1.0mm SGCC galvanized steel
- Backplane
- 6Gb/s SATA backplane
- Color
- black painted front panel, color of steel for enclosure
- Drive bays
- 8×3.5" hot-swap HDD bays, compatible with 2.5" HDD/SSD
- Cooling
- Optional 3×120mm fans
- Power input
- 2U standard power supply or CRPS PSU
- Motherboard support
- Supports MAX ATX 12"×9.6" motherboard
- Expansion slots
- 7 half-height PCI/PCIE slots for expansion
- Connectors
- Two front USB2.0 ports
- Management
- Power LED×1, Reset×1, Power SW×1, HDD LED×1, NIC LED×2
Typical applications
Where it deploys
- Cloud computing
- Security monitoring
- IoT
