Storage Chassis

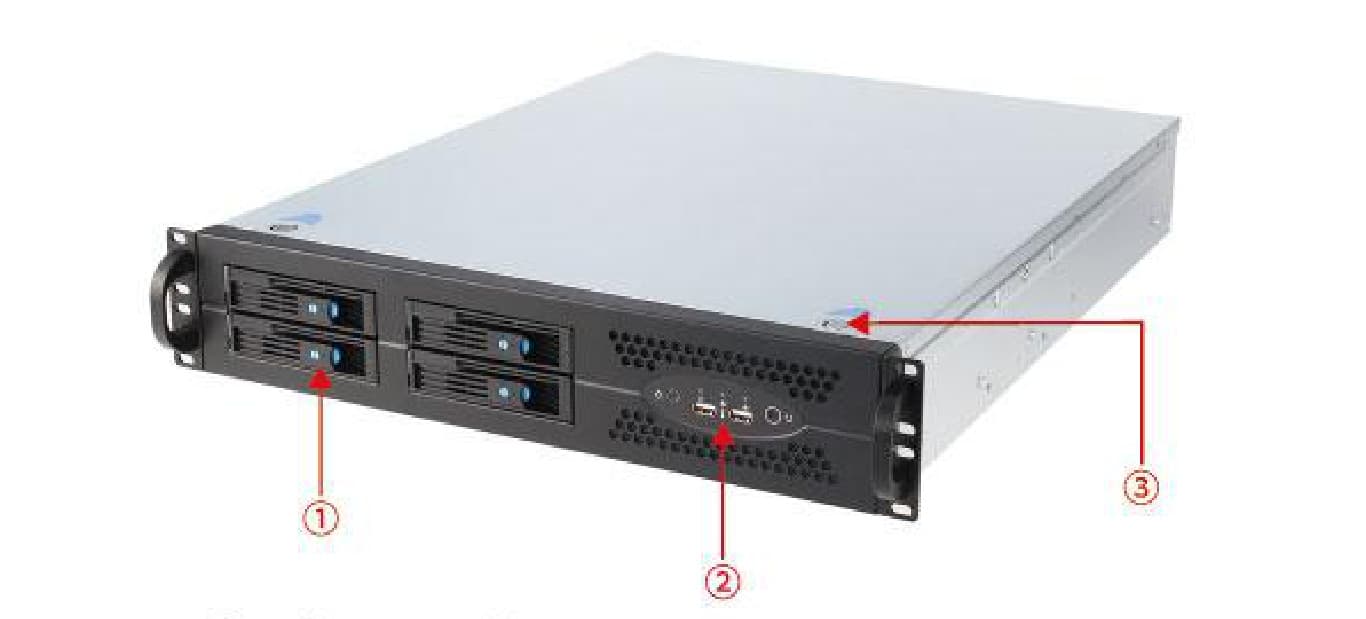

IWILL TP2U570-04
IWILL TP2U570-04 storage chassis platform.
Request configuration and pricing.
Tell us the required configuration, quantity, application, delivery ZIP code, and timing. Technical sales will confirm compatibility, availability, lead time, shipping origin, and quoted pricing.
Request a Quote- 4×3.5" hot-swap SATA/SAS bays (II or III) 6Gb/s
- Hot-swap fan module
- Redundant or single power supply
- 7 half-height PCI/PCIE slots for expansion
- Two front USB2.0 ports
Platform overview
Built into your system, not just placed beside it.
The IWILL TP2U570-04 is a rackmount storage chassis from the IWILL Storage Chassis range. It runs from 2U standard or redundant power supply. Typical deployments include security monitoring, industrial control, IoT. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Technical specifications
- Dimensions
- 438mm×570mm×88mm
- Material
- 1.0mm SGCC
- Color
- black painted front panel, color of steel for enclosure
- Drive bays
- 4×3.5" hot-swap SATA (II or III) / SAS (II or III) 6Gb/s bays
- Cooling
- Optional 3×80mm fans
- Power input
- 2U standard or redundant power supply
- Motherboard support
- Supports MAX ATX 12"×10.5" motherboard
- Expansion slots
- 7 half-height PCI/PCIE slots for expansion
- Connectors
- Two front USB2.0 ports
- Management
- Power LED×1, Reset×1, Power SW×1, HDD LED×1, NIC LED×2
Typical applications
Where it deploys
- Security monitoring
- Industrial control
- IoT
