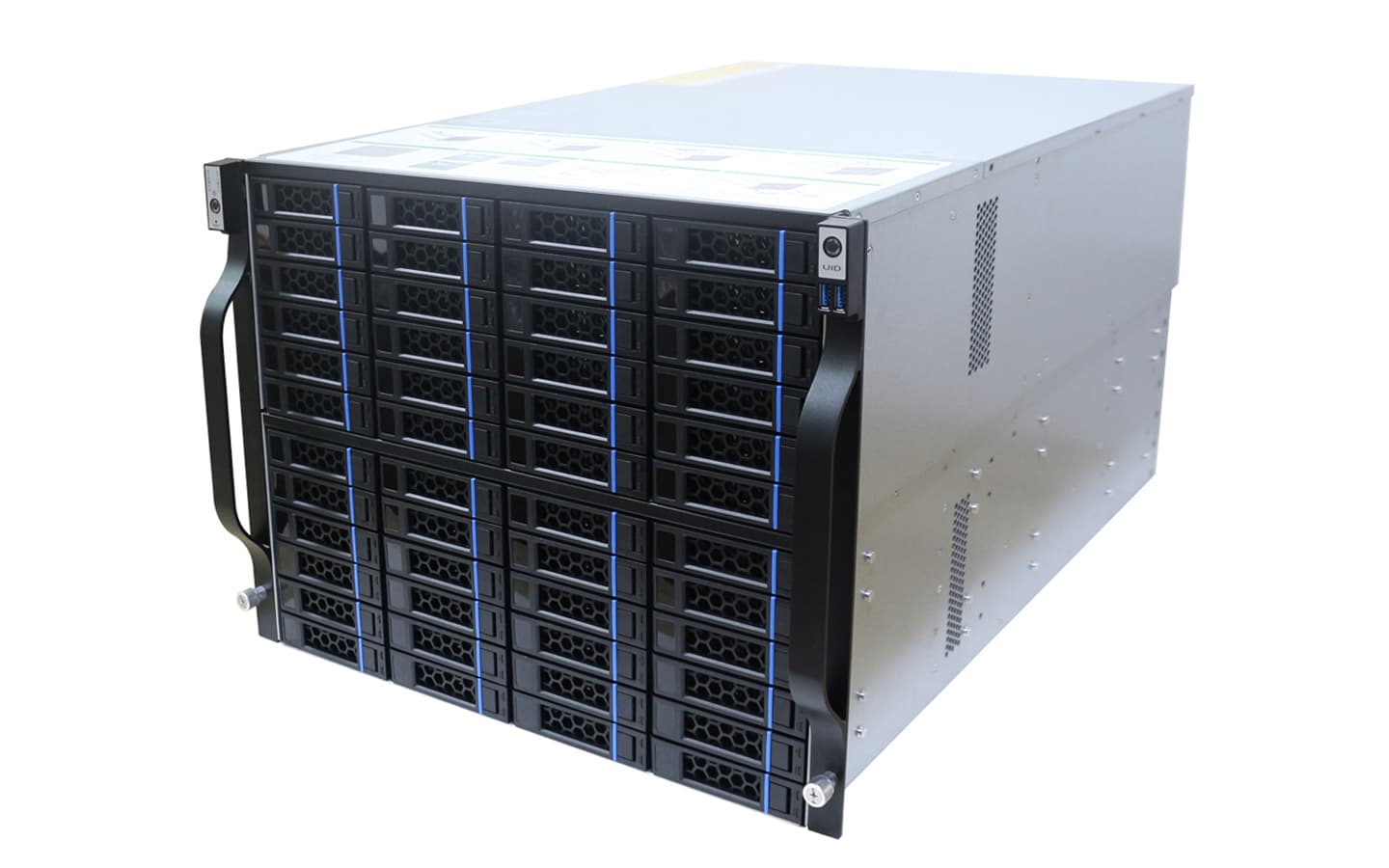

IWILL S865-72 – Storage Chassis

Name: IWILL S865-72 – Storage Chassis
Brand: IWILL

IWILL S865-72 storage chassis platform.

Request configuration and pricing.

Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.

Request a Quote

Collect several models and request one combined quote.

Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
+1 (321) 438-8133
WhatsApp +1 (321) 438-8133

Configuration validated before quoting
Written quote with lead time & warranty terms
Single evaluation units available

72 hot-swap 3.5" bays (48 + rear 24, compatible with 2.5" HDD/SSD)
6Gb/s Expander backplane with temperature control
CRPS power supply
6×120mm hot-swap fans
7 half-height PCI/PCIE slots for expansion

Platform overview

Built into your system, not just placed beside it.

The IWILL S865-72 is a rackmount storage chassis from the IWILL Storage Chassis range. It runs from CRPS power supply. Typical deployments include cloud storage, cloud computing, security and video surveillance. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

Technical specifications

Dimensions: 437.5mm×650mm×354mm, standard 19" rackmount chassis
Material: 1.0mm SGCC galvanized steel
Backplane: 6Gb/s Expander backplane, with temperature control chipset / 12Gb/s Expander backplane, with temperature control chipset
Drive bays: 72 pcs. 3.5" hot-swap bays (48 + rear 24, compatible with 2.5" HDD/SSD)
Cooling: 6×120mm hot-swap fans
Power input: CRPS power supply
Motherboard support: Supports up to 13.68"×13" (EE-ATX) motherboard
Expansion slots: 7 half-height PCI/PCIE slots for expansion
Connectors: Two front USB2.0 ports (optional USB3.0)
Management: Power LED×1, Reset×1, Power SW×1, HDD LED×1, NIC LED×2, UID LED×1, UID SW×1, OH/FAN Fail LED×1, Power Fail LED×1
