IWILL IW-TTL-M Series – M-Bus Gateway
IWILL IW-TTL-M Series m-bus gateways platform.
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Integrated M-BUS ↔ TTL module (M-BUS Master)
- Compact size 75×45×15 mm
- Easy integration in custom devices
- Short-circuit protection, stable operation
- Imported chips, welding process
- Variants for 5 / 100 / 250 standard loads
Platform overview
Built into your system, not just placed beside it.
The IWILL IW-TTL-M Series is an M-Bus metering interface from the IWILL M-Bus Gateways range. Typical deployments include flush mounting in OEM devices, Custom M-BUS Master solutions, reading of metering devices. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Technical specifications
- Type
- Integrated module physical layer (M-BUS ↔ TTL)
- Role
- M-BUS Master

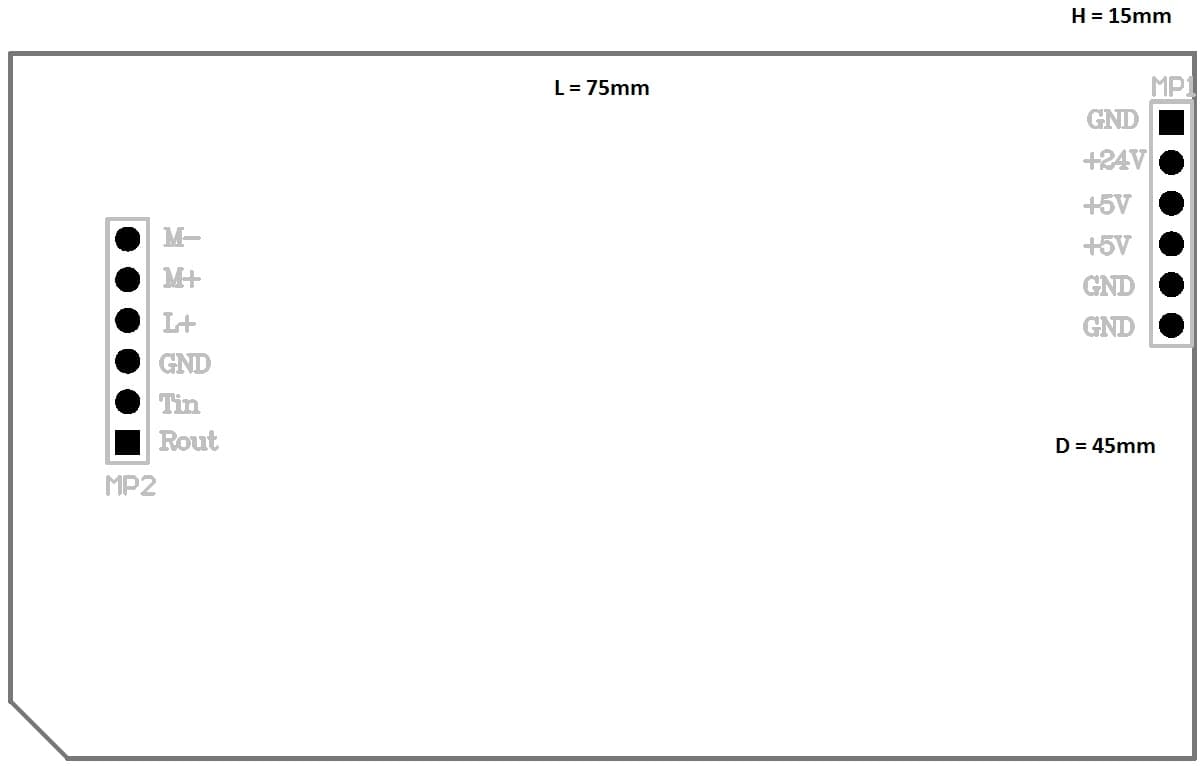

- Dimensions
- 75 × 45 × 15 mm
- Protocols
- EN 1434-3, CJ/T188-2004
- M-Bus loads
- IW-TTL-M5: 5 (8mA@36V) · IW-TTL-M100: 100 (150mA@36V) · IW-TTL-M250: 250 (375mA@36V)
- Manufacturing
- Imported chips, welding process
- Protection
- Short-circuit protection
- Models
- IW-TTL-M5, IW-TTL-M100, IW-TTL-M250
Typical applications
Where it deploys
- Flush mounting in OEM devices
- Custom M-BUS Master solutions
- Reading of metering devices
- Development of products
