IWILL IW-RE-M Series – M-Bus Gateway
IWILL IW-RE-M Series m-bus gateways platform.
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Extends M-BUS distance with up to 1200 m
- Upstream M-BUS Slave / downstream M-BUS Master
- Adaptation to different topologies
- Adjustable upper and lower speed
- Variants for 100 / 250 / 350 standard loads
- Support for EN 1434-3 and CJ/T188-2004
Platform overview
Built into your system, not just placed beside it.
The IWILL IW-RE-M Series is an M-Bus metering interface from the IWILL M-Bus Gateways range. Mounting: DIN bus. Typical deployments include Extended M-BUS networks, large buildings, extension of distance. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.

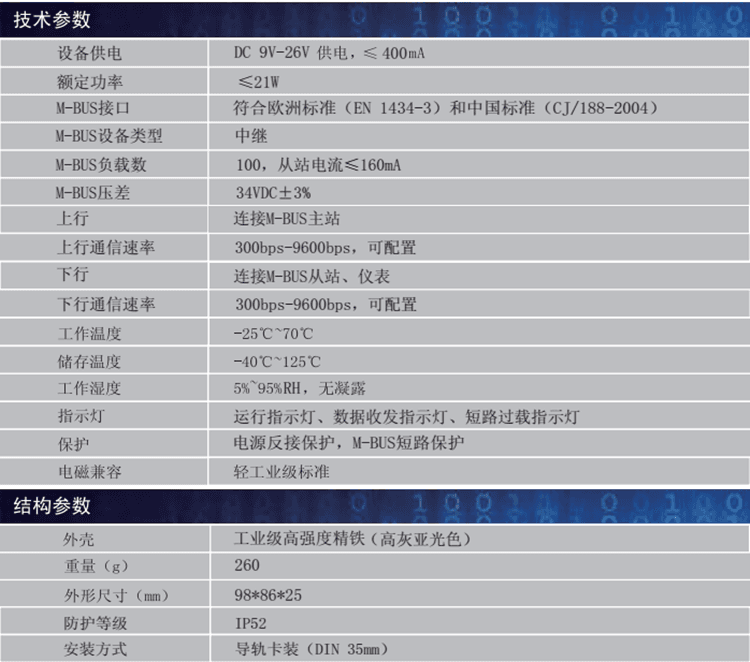

Technical specifications
- Type
- M-BUS repeater / amplifier
- Extension
- Up to 1200 m
- Topology
- Upstream Slave / downstream Master
- Speed
- Adjustable upper and lower speed
- Protocols
- EN 1434-3, CJ/T188-2004
- M-Bus loads
- IW-RE-M100: 100 (150mA@34V) · IW-RE-M250: 250 (325mA@34V) · IW-RE-M350: 350 (525mA@34V)
- Mounting
- DIN bus
- Chassis
- Metal
- Models
- IW-RE-M100, IW-RE-M250, IW-RE-M350
Typical applications
Where it deploys
- Extended M-BUS networks
- Large buildings
- Extension of distance
- Cascaded metering systems
