IWILL ITPC-A113 – Industrial Panel PC
ITPC-A113: Celeron J6412 / i3/i5/i7 (8th–10th Gen) with 2x 1000M LAN (option 4x LAN).
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Celeron J6412 / i3/i5/i7 (8th–10th Gen)
- 1x DDR4 2400/2666/3200MHz memory up to 32GB
- 4x USB 3.0, 2x 1000M LAN (option 4x LAN)
- 1x M.2 2280 SATA + 1x M.2 SATA + 2x 2.5" HDD/SSD
- DC 9-36V with protection
- Aluminum enclosure
Platform overview
Built into your system, not just placed beside it.

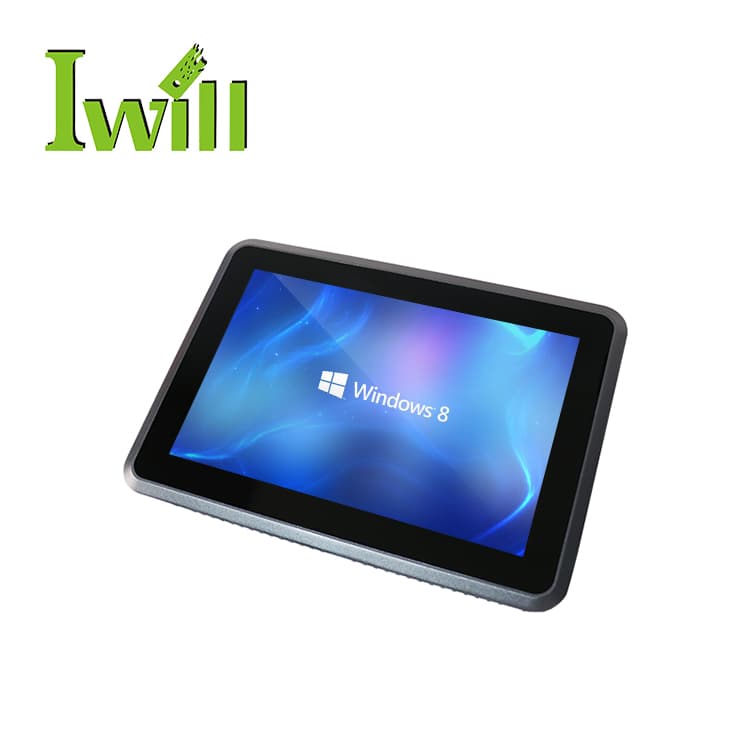

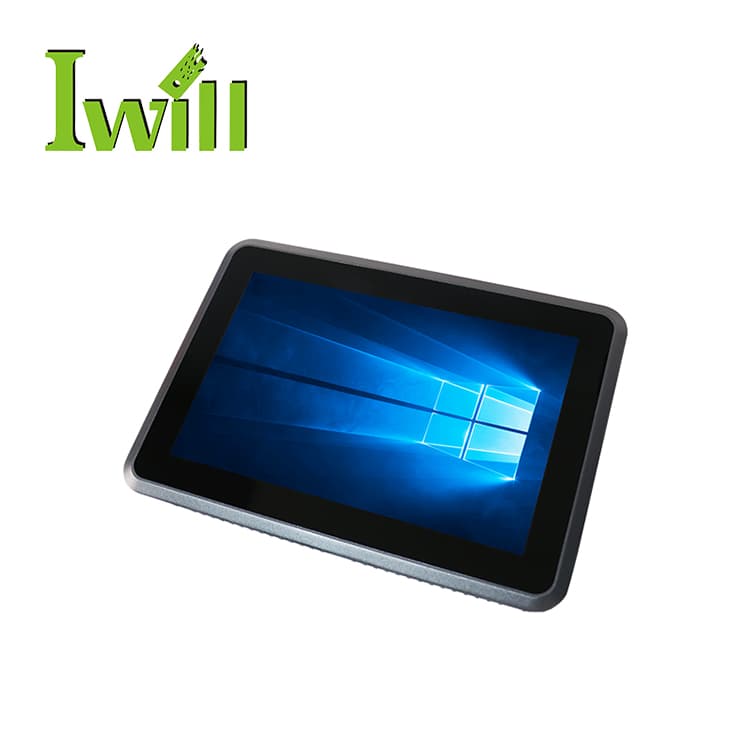

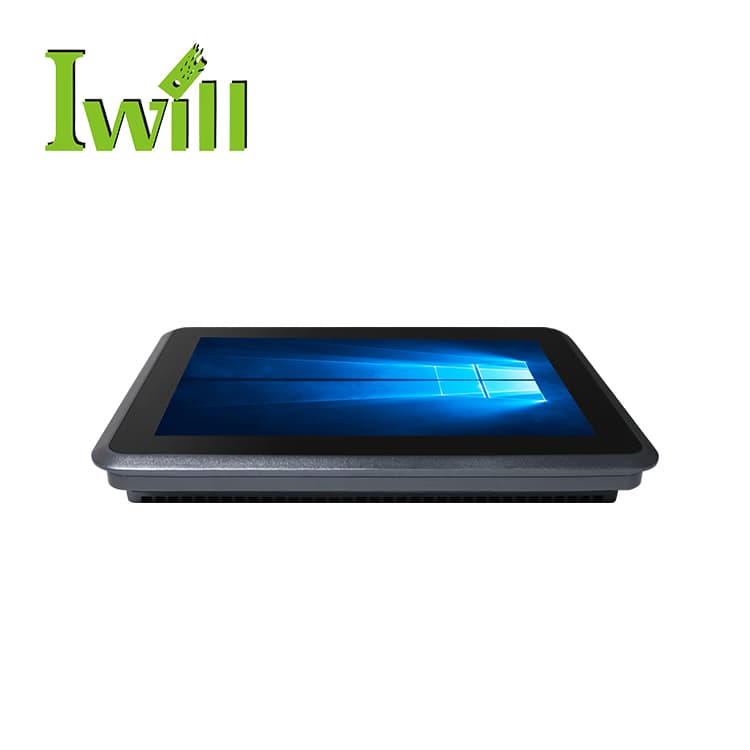

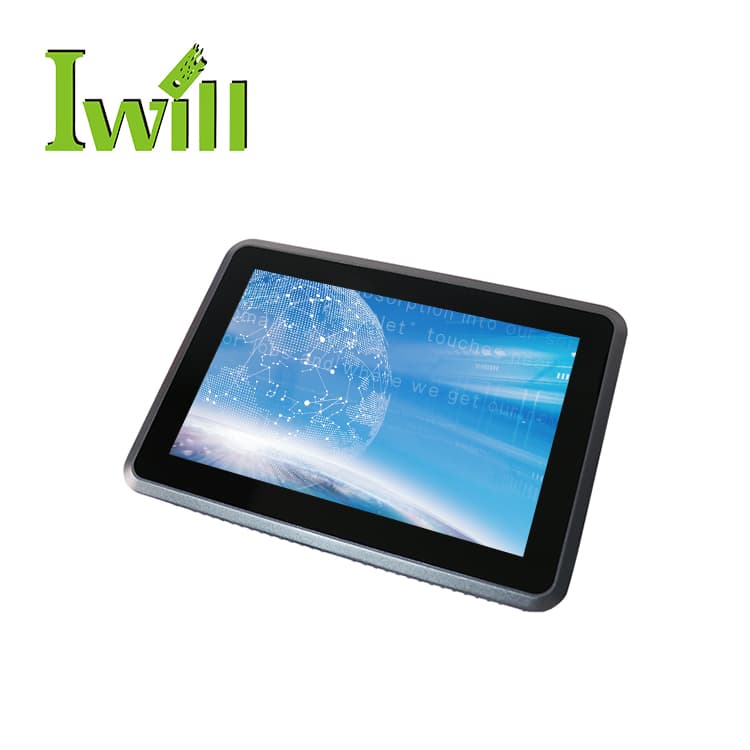

The ITPC-A113 is an integrated touch panel PC from the IWILL Panel PCs & HMI range, built around Celeron J6412 / i3/i5/i7 (8th–10th Gen). Connectivity centers on 2x 1000M LAN (option 4x LAN). It runs from DC 9-36V with protection power. Typical deployments include HMI panel, kiosk, industrial automation. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
Windows 10 · Windows 11 · Linux
Technical specifications
- Display outputs
- ITPC-A113
- Processor
- Celeron J6412 / i3/i5/i7 (8th–10th Gen)
- Memory
- 1x DDR4 2400/2666/3200MHz, up to 32GB
- Networking
- 2x 1000M LAN (option 4x LAN)
- Storage
- 1x M.2 2280 SATA + 1x M.2 SATA + 2x 2.5" HDD/SSD

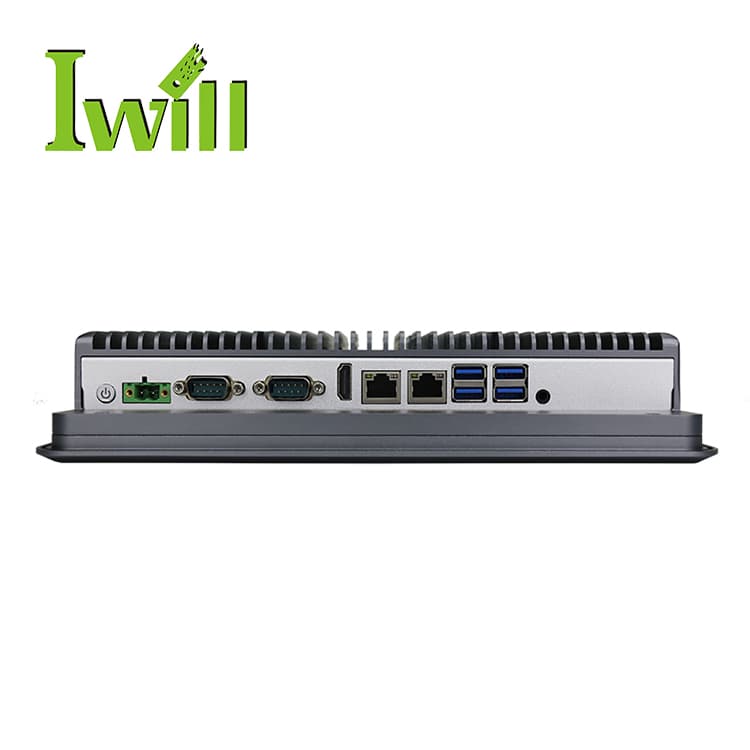

- I/O
- 4x USB 3.0
- Power input
- DC 9-36V with protection
- Dimensions
- 271.5 × 190 × 53mm
Operating environment
- Operating temperature
- -10°C to 60°C (14°F to 140°F)
- Storage temperature
- -20°C to 70°C (-4°F to 158°F)
- Humidity
- 5–95% non-condensing
Typical applications
Where it deploys
- HMI panel
- Kiosk
- Industrial automation
- POS system
Expansion & I/O
Room to configure
- 1x M.2 2280 SATA
- 1x M.2 SATA
- 2x 2.5" HDD/SSD slots
