Industrial Motherboards
H-SKLU01
Intel 6/7/8th Gen Core i3/i5/i7, Celeron with 2x Gigabit LAN (RTL8111H).
Industrial Motherboards
IWILL HI-N5095D12 – Industrial Motherboard
HI-N5095D12: Intel Celeron N5095 (4 cores, 2.0-2.7GHz, 15W TDP) with 1x Gigabit LAN (RTL8111H).
Request configuration and pricing.
Tell us the quantity and what it is for. Technical sales confirms the configuration, availability, lead time, and pricing.
Request a QuoteCollect several models and request one combined quote.
- Technical sales replies within 1 business day · Mon–Fri, 9:00–17:00 ET
- +1 (321) 438-8133
- WhatsApp +1 (321) 438-8133
- Configuration validated before quoting
- Written quote with lead time & warranty terms
- Single evaluation units available
- Intel Celeron N5095 (4 cores, up to 2.7GHz, 15W)
- 1x DDR4 2933MHz SO-DIMM, up to 16GB
- Dual eDP display
- 1x Gigabit LAN (RTL8111H)
- 2x RS232 COM ports
- 2x USB 3.0 + 8x USB 2.0
- Compact size 148×102mm
Platform overview
Built into your system, not just placed beside it.

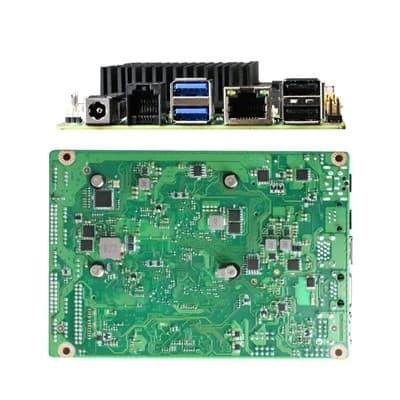

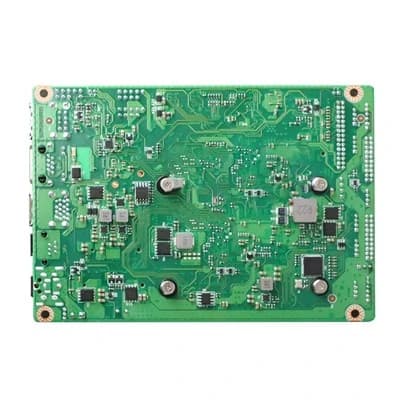

The HI-N5095D12 is an embedded industrial motherboard from the IWILL Industrial Motherboards range, built around Intel Celeron N5095 (4 cores, 2.0-2.7GHz, 15W TDP). Connectivity centers on 1x Gigabit LAN (RTL8111H). It runs from DC 12V power. Typical deployments include integrated systems, POS terminals, industrial control. Configuration, lead time, and US availability are confirmed per project; technical sales validates the exact build before issuing a written quotation.
Supported operating systems
Windows 8 · Windows 10 · Windows 11 · Linux
Technical specifications
- Processor
- Intel Celeron N5095 (4 cores, 2.0-2.7GHz, 15W TDP)
- Memory
- 1x DDR4 2933MHz SO-DIMM, up to 16GB
- Networking
- 1x Gigabit LAN (RTL8111H)
- Display outputs
- 2x eDP (dual display, 1920×1080@60Hz)
- Storage
- 1x mSATA
- I/O
- 2x RS232, 2x USB 3.0, 8x USB 2.0, 1x LPT, 1x PS/2
- Dimensions
- 148 × 102mm (3.5")
- Power input
- DC 12V
Operating environment
- Operating temperature
- 0°C to 60°C (32°F to 140°F)
- Storage temperature
- -20°C to 75°C (-4°F to 167°F)
- Humidity
- 5–95% non-condensing
Typical applications
Where it deploys
- Integrated systems
- POS terminals
- Industrial control
- Self-service terminals
Expansion & I/O
Room to configure
- 1x M.2 KEY-E (PCIe X1 + USB 2.0)
- 1x mSATA
