June 8, 20268 min readIWILL US

CCTV and industrial monitors (CV series): when a specialized display is the right call

Why security-rated CCTV monitors beat consumer TVs for surveillance: BNC/HDMI/VGA inputs, 24/7 panel duty, and metal enclosures. The CV series — CV-150VH, CV-190VH, CV-215VH.

CCTV MonitorSurveillanceIndustrial MonitorCV Series

The cheapest way to put a surveillance feed on a wall is a consumer TV — for about six months. Then the backlight, run 24/7 at full brightness, starts to fade; the panel retains ghost images of the static camera grid; and somewhere along the way you discovered the DVR's BNC output had nowhere to plug in.

What makes a monitor "CCTV-grade"

24/7 duty rating — panels and backlights specified for continuous operation, not evening viewing.
The right inputs — BNC for analog/coax camera chains alongside HDMI and VGA, so legacy DVRs and modern NVRs coexist.
Metal enclosure — thermal mass and durability for equipment rooms, with VESA mounting for walls and racks.
Image-retention resistance — tuned for static content like camera grids and dashboards.
12V DC power — integrates with the same supplies securing the rest of the rack.

The CV series

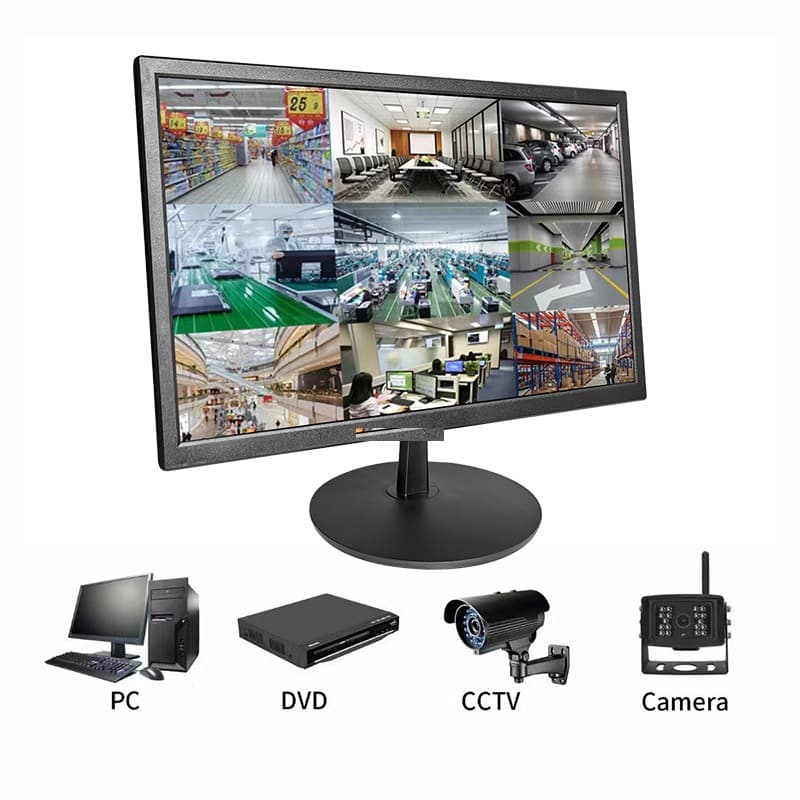

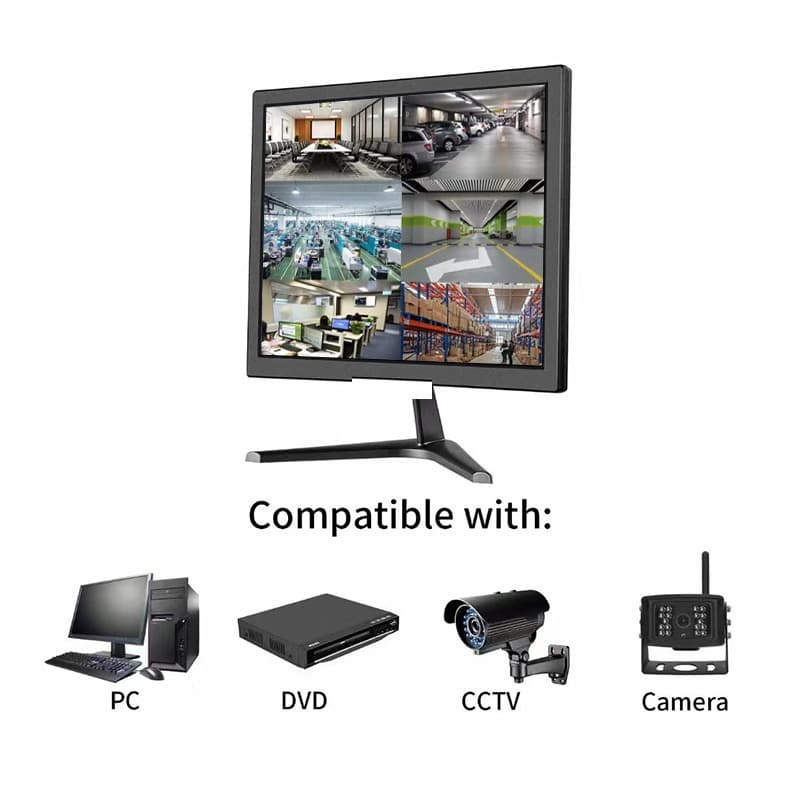

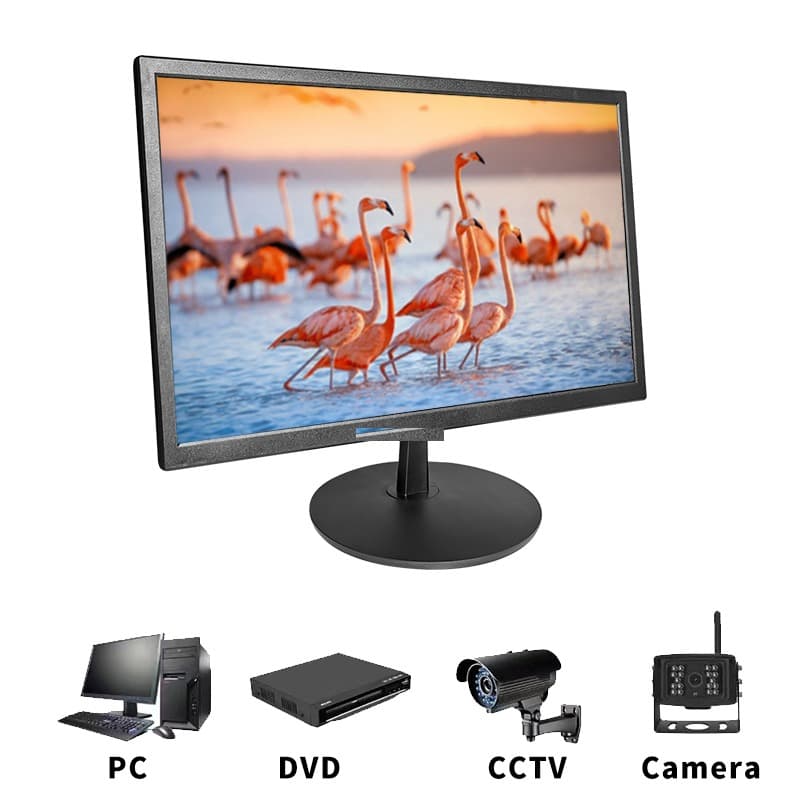

Three sizes cover the common positions: [CV-150VH](/product/cv-150vh) (15") for rack and desk positions, [CV-190VH](/product/cv-190vh) (19") for guard desks, and [CV-215VH](/product/cv-215vh) (21.5", FHD) for wall duty — each with BNC, HDMI, VGA, and audio inputs, 24/7 panel rating, metal construction, and VESA 100×100.

Beyond surveillance

The same properties — continuous duty, legacy inputs, metal housing — make CV monitors a fit for machine-side status displays, lab instruments with VGA outputs, and any position where a display must simply stay on for years. For touch interaction, step over to the TC touch series; for full sealed integration, a panel PC.
